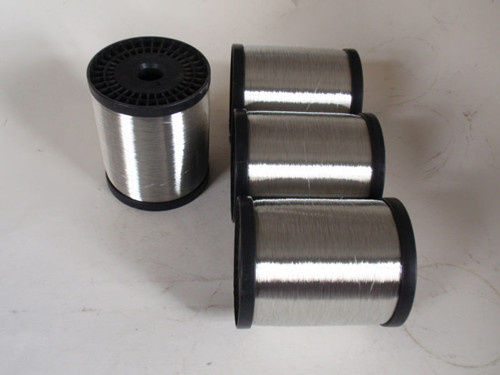

Copper Content 2%-25% by Weight Tccs Wire Tinned CCA Wire

Copper Content 2%-25% by Weight Tccs Wire Tinned CCA Wire
Price: NegotiableKG
Trade Terms: FOB,CFR,CIF
Min Order: 500KG
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Contact Supplier
Showroom Product Company Profile
Prod Model: ZW-06
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tensile Strength(Mpa): 320-450
Elongation(%): 5%-25%
Density(g/cm3): 8.00-8.10
Copper Content(%)by Weight: 7%-25%
Conductivity Iacs(%): 15%-40%
Application: Submarine Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: CE
Type: Bare

Product Description

Specification:
Tinned CCS wire is"CP"wire,which is made of high-class low-carbon steel,clad non-oxygenic copper layer by mechanical method , than plating Tin.Due to the high purity of layer ,the Copper core and Tin layer cladding close-grained.
Tinned CCS wire with the high conductivity &magneto conductivity of Copper ,high strength of Steel, Thermal conductivity,&corrosion resistance of Steel,The resistance of anti-vibration effect is 3-6 times to pure Copper wire, it is easy to automation.So it is widely used for lead wire& jumper of electronic
components, core of RF cable, It has become a perfect wire of communication, electronics, electric power industry.

Advantage:
TCCS wires
1.Good Conductivity
2.Better price with same characteristics against pure copper wire
3.Better length/weight scale

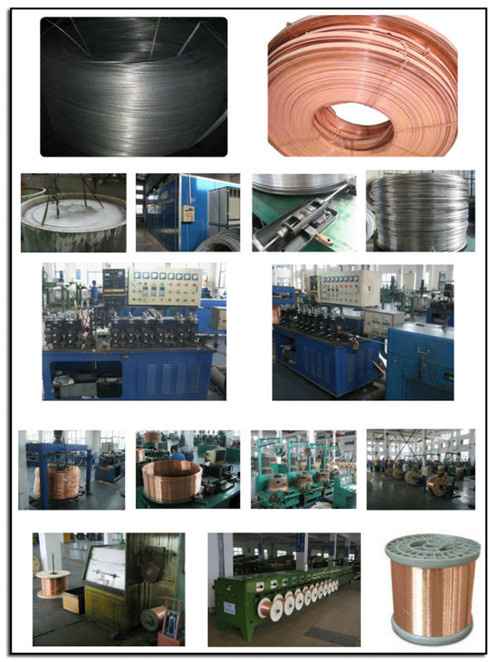

Picture:

Name /Spec
 		 Diameter Range (mm)
 		 Copper content
 		 Conductivety(%)
 		 Tensile strength (Kg)
 		 Elongation (%)
 		 Density
TCCS
( Low carbon steel)		 0.10mm-1.00mm 2%-25%By weight
 		 15%-30% 250Mpa-600Mpa 1%-25% 7.95-8.15g/cm³
Jiaxing Zhongwan Import&Export Co. Ltd. Is located in Jiaxing City which is the center city of the most prosperous and dynamic Economic Circl in China --Yangtze River Delta. It cannot be ignored about highly convenient transportation system of Jiaxing City. You can go everywhere in China through the highway and three big airports around Jiaxing enable you to fly all over the world.

In addition, several mutifunctional seaports along the coast of Jiaxing City qualify us to do world trade without tranpotation problem.

There is only one hour away to go to Shanghai metropolis by car. Hangzhou and Suzhou are also an hour away from Jiaxing. This represents our company's place utility that will down the transport expenses to the loweset level.

Besides, several famous big market are also sorrounding us:

Yiwu Commodity market--the biggest Commodity market on earth.

The biggest Sweater Market in China.

Electrical household appliances market.

Doors and furniture market.

Leather market etc.

Company Business:

We are engaged in the import and export of goods and technology business mainly.

The strengths of our companies operates: Bottle Jack, Floor Jack, Trolley Jack, Scissor Jack, Jack Stand etc.
