| Prod Model: |
WDZ-BYJ/YJY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage Range: |
0.6/1.1kv |
| Rated Temperature: |
0-70 Celsius Degree |
| Conductor: |
Bare Copper |
| Cores: |
as Client's Requirement |
| Color: |
Red/Black/Blue/Yellow/Green |
| Jcaket: |
PVC |
| Lenght: |
100m/Reel |
| Package: |
Fillm Packing |
| Delivery: |
15-20days After Payment |
| Type: |
Lsoh Cable |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Sheath Material: |
Low Smoke Zero Halogen |
| Model: |
Lsoh Yjy |
Product Description

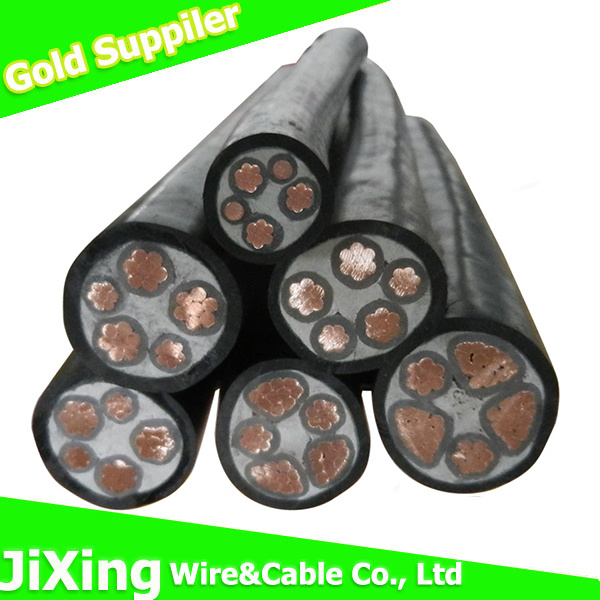

450/750V Copper Core Lsoh Sheathed Power Cable
Products model: LSOH YJY Power cable
450/750V Copper core XLPE insulated, Low Smoke Zero Halogen sheathed Power cable with or without Armor.
Application:
For places that has strict environment requirement such as School, shopping centers, subway station etc.
Product discription:
1. Pure copper conductor
2. With various dimension, 1-5 cores, 1.5 -400 square mm section area.
3. Low smoke Zero Halogen sheath material, environment friendly.
4. High quality with CE, CCC, ROHS, ISO certified.
5. OEM available.
Description
Cu Core XLPE Insulated PVC Sheathed Power Cable
Cu Core XLPE Insulated PVC Sheathed Fire Resistant Cable
Cu Core XLPE Insulated PO Sheathed Power Cable
Cu Core XLPE Insulated PO Sheathed Fire Resistant Cable
Cu Core XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
Cu Core XLPE Insulated Steel Tape Armored PVC Sheathed Fire Resistant Cable
4. Conductor: Copper conductor
5. Insulation material: XLPE insulated
6. PO or PVC sheathed, or with steel tape armored, with steel wire armored,
Flame retardant models can be divided into ZA, ZB, ZC that represent flame-retardant class of A, B, and C respectively.
7. Pls provide the detailed cable or wire information as below,
0.6/1kv, PVC insulated PVC sheathed flame retardant and non-flame retardant power cable
8. Application
This product is use as power distribution and transmission line at rated voltage 0.6/1kv which can be fixed installed.
9. Executive Standard
GB/T12706-2008
Type | Description | Main Application |
| Cu core | Al core |
| (ZR)YJV or (ZR)YJY | (ZR)YJLV or (ZR)YJLY23 | (Flame retardant) Cu, Al core XLPE insulated, PVC or PE sheathed power cable. | For laying indoor, tunnel, underground and canal. Unable to bear external mechanical pulling force and pressure during laid. |
| (ZR)YJV22 or (ZR)YJY23 | (ZR)YJLV22 or (ZR)YJLV23 | (Flame retardant) Cu, Al core XLPE insulated, steel armoured, PVC or PE sheathed power cable. | For laying indoor, tunnel, underground and canal. Able to bear external mechanical pulling force, but unable to bear large pulling force. |
| (ZR)YJLV32 or (ZR)YJLV33 | (ZR)YJLV32 or (ZR)YJLV33 | (Flame retardant) Cu, Al core XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable | For laying in shaft, water under ground and large difference of level, able to bear mechanical pressure and moderate pulling force. |
| (ZR)YJLV42 or (ZR)YJLV43 | (ZR)YJLV42 or (ZR)YJLV43 | (Flame retardant) Cu, Al core XLPE insulated, thick steel wire armoured, PVC or PE sheathed power cable | For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force.
|
Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.
Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.
Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
