Copper Core PVC Insulated BV RV Bvr Nh-BV Nh-RV Nh-Bvr Wire
| Price: |
US $ 0.18-0.2/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BV-028 |
| Electric Wire Conductor: |
Red Copper |
| Electric Wire Color: |
Red, Yellow, Green, Blue or Acc. to Your Request |
| Electric Wire Voltage: |
300/500V 450/750V |
| Electric Wire Standard: |
IEC60332 |
| Electric Wire Section Area: |
1.5mm2-16mm2 |
| Electric Wire Use Purpose: |
Building |
| Electric Wire Packing: |
Plastic Reel |
| Electrcial Wire Shealth Material: |
PVC |
| Type: |
Insulated |
| Application: |
Overhead |
| Conductor Material: |
Copper |
| Insulation Material: |
Bare |
| Certification: |
ISO9001 |
| Conductor Type: |
Flexible |
| Brand: |
Upward |
Product Description
Product Description

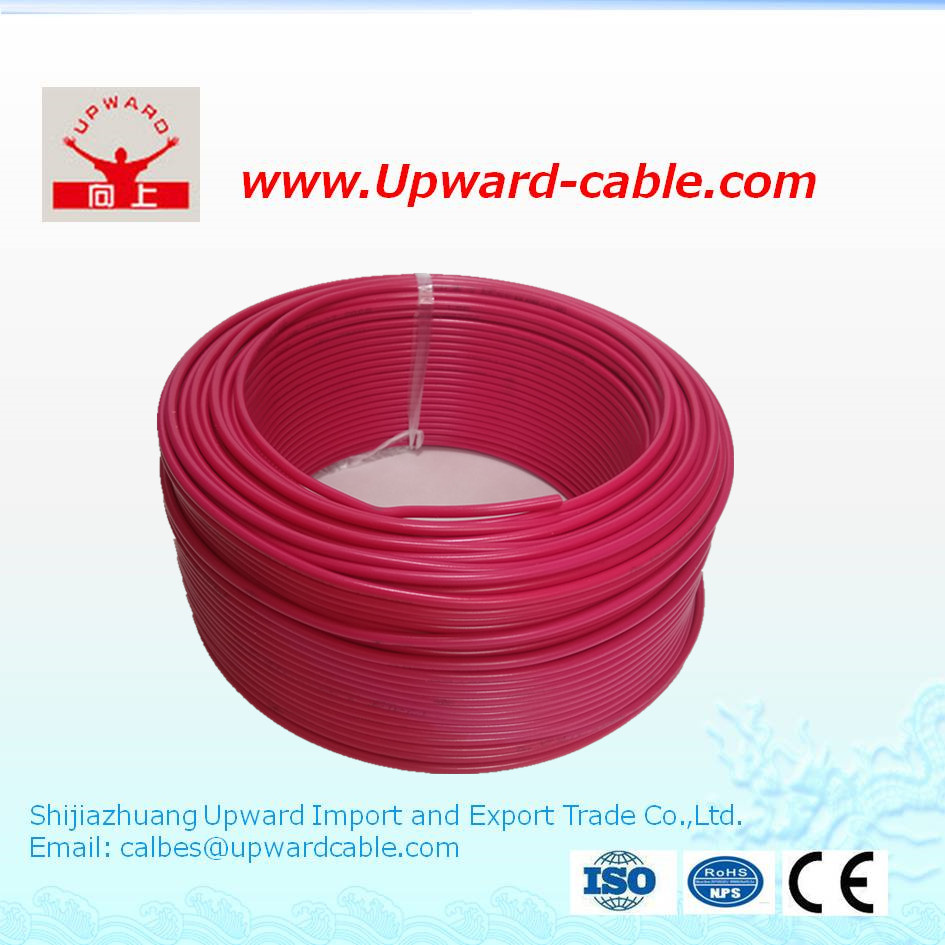

450/750V PVC Insulated Cooper Wholesale Electrical Wire
1.Application
The PVC insulated wires belong to the series of laying wires, which are mainly suitable for
laying at the fixed places. They are widely used as connectors of driving, lighting,
electric equipment, instrument and telecommunication equipment with rated voltage up to
450/750V(U0/U). part of the plastic insulated wires are used at the equipment with AC rated
voltage up to 300V
1.Range of Application
Building wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
2.Service Conditions
Working temperature:Not more than 105oC for RV-105 model.The other no more than 70oC.
3.Model and Name:see table1
Model | Name |
RV | Copper Core PVC Insulation Flexible Wire |
RVB | Copper Core PVC Insulation Flat Flexible Wire |
RVS | Copper Core PVC Insulation Twisted Flexible Wire |
RVV | Copper Core PVC Insulation Sheath Round Flexible Wire |
RVVB | Copper Core PVC Insulation Sheath Flat Flexible Wire |
RV-90 | Copper Core Heat-resistak Losc PVC Flexible Wire |
4.Specification Size and Technical Data:see table 2
Nominal Section (mm2) | Core Structure No./Dia.(mm) | Max Dia.(mm) | Reference Weight(kg/km) |
0.3 | 16/0.15 | 2.3 | 6.4 |
0.4 | 23/0.15 | 2.5 | 8.1 |
0.5 | 16/0.2 | 2.6 | 9.1 |
0.75 | 24/0.2 | 2.8 | 12.2 |
1.0 | 32/0.2 | 3.0 | 15.1 |
RV 450/750V
Nominal Section (mm2) | Core Structure No./Dia.(mm) | Max Dia.(mm) | Reference Weight(kg/km) |
1.5 | 30/0.25 | 3.5 | 21.4 |
2.5 | 49/0.25 | 4.2 | 24.5 |
4 | 56/0.20 | 4.8 | 51.8 |
6 | 84/0.30 | 6.4 | 74.1 |
10 | 84/0.30 | 8.0 | 12.4 |
The cable can be of flame retardance, flame resistance, environment friendly or other property. OEM Available.
Single Core 11AWG Cable Wires is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.
FAQ
When can I get the price?
We usually quote within 24 hours after we get your inquiry . If you are very urgent to get the price, please call us or tell us your email so that we will regard your inquiry priority.
How can I get a sample to check your quality?
After price confirmation , you can require for samples to check our quality.
Sample is free ,but the freight charge should be paid.
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files ,the samples will be ready for delivery in 3-7 days. You can use your own express account or prepay us if you do not have an account.
What about the lead time for mass production?
Honestly ,it depends on the order quantity and the season you place the order .The best record we keep is delivering 10 kilograms cable within a week .Generally speaking ,we suggest that you start inquiry two months before the date you should like to pack products at your country.
What is your terms of delivery?
We accept EXW , FOB , CFR , CIF , etc .You can choose the one which is the most convenient or cost effective for you.
| Type | Cross Section(mm2) | Conductor Size(No. Of Cores/Diameter) | Rated Voltage | Nominal Insulation Thickness(mm) | Reference Weight(kg/km) | Application |
| Solid Type | 0.5 | 1/0.80 | 300/500V
450/750V | 0.6 | 8.0 | Solid, Hard, Suitable for fixed installation |
| 0.75 | 1/0.97 | 0.6 | 11.4 |
| 1 | 1/1.13 | 0.6 | 15.2 |
| 1.5 | 1/1.38 | 0.7 | 21 |
| 2.5 | 1/1.78 | 0.7 | 32 |
| 4 | 1/2.25 | 0.8 | 47 |
| 6 | 1/2.76 | 0.8 | 67 |
| Stranded Type | 1.5 | 7/0.52 | 0.7 | 22 | Stranded, Flexible house wiring, Suitable for indoor applicant. |
| 2.5 | 7/0.68 | 0.7 | 35 |
| 2.5 | 19/0.40 | 0.8 | 34 |
| 4 | 7/0.85 | 0.8 | 50 |
| 4 | 19/0.52 | 0.8 | 51 |
| 6 | 7/1.04 | 0.8 | 71 |
| 6 | 19/0.64 | 0.8 | 72 |
| 10 | 7/1.35 | 1.0 | 118 |
| 10 | 49/0.52 | 1.0 | 127 |
| 16 | 7/1.70 | 1.0 | 177 |
| 16 | 49/0.64 | 1.0 | 184 |
| Flexible Type | 1.5 | 30/0.25 | 0.7 | 22 | Ultra Flexible, Soft Conductor, Suitable for small power equipment instrument. |
| 2.5 | 49/0.25 | 0.8 | 34 |
| 4 | 56/0.30 | 0.8 | 49 |
| 6 | 84/0.30 | 0.8 | 70 |
| 10 | 77/0.40 | 1.0 | 117 |
| 16 | 119/0.40 | 1.0 | 168 |
| 25 | 189/0.40 | 1.2 | 265 |
| ... | | | |
The cable can be of flame retardance, fire resistance, environment friendly or other property. OEM Available. Single Core 13-15AWG Cable Wires is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.

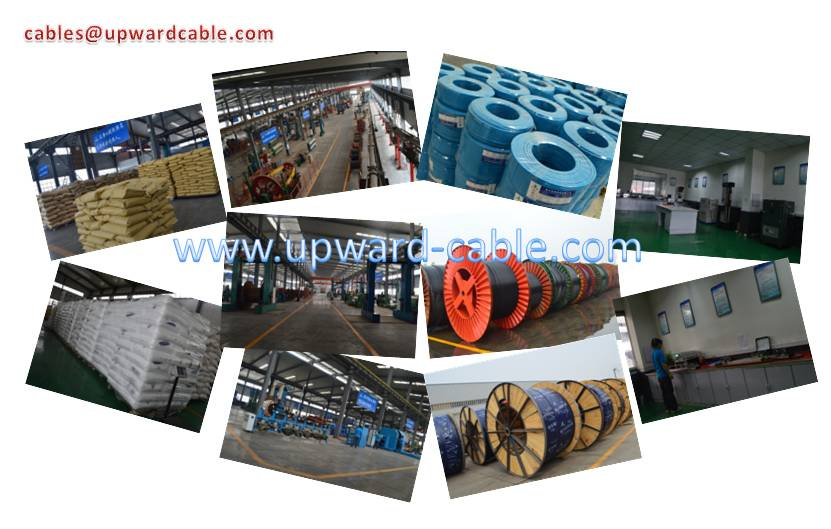

Our workshop
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.
The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
