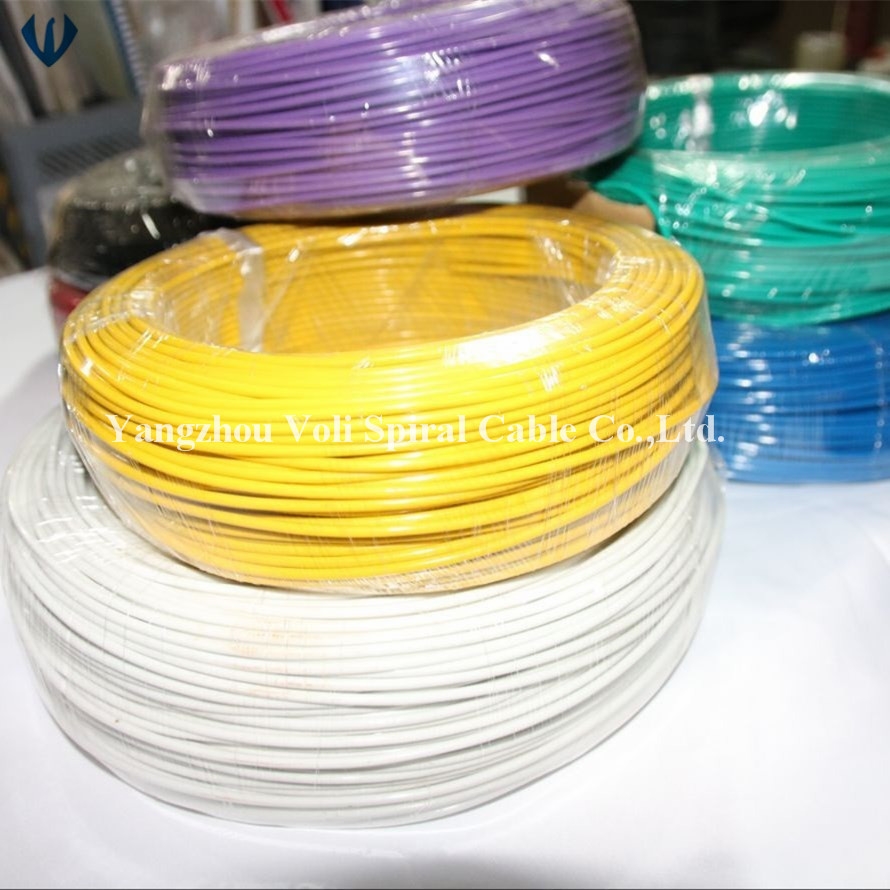

Copper Flexible PVC Insulated Electric Power Wire Cable

Name: Copper Flexible PVC Insulated Electric Power Wire Cable
Brand: all-electronics-online.com
SKU: 832082685
Availability: InStock
Rating: 4.4 (117 reviews)

Price:	US $ 0.65-0.85/Meter
Min Order:	1000/Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Application:	Industrial
Insulation Material:	PVC
Certification:	SGS TUV
Sheath Material:	PA
Brand:	Voli

Product Description

Nylon sheath line is a national non-mandatory certification products, widely used in aircraft low-voltage lines, highway monitoring equipment installation lines, highways with induction coil special line.
1.Rated voltage: 300 / 500V, 450 / 750V
2.Working temperature: -65 ~ +105 ºC
3.Conductor: stranded tinned copper
4.Insulation: PVC + nylon

Technical Parameters

Standard section (mm²)	Conductor structure(Φmm)	Insulation thickness(mm)	Sheath thickness(mm)	Max.Diameter(mm)
0.2	12/0.15	0.35	0.15	1.70
0.3	16/0.15	0.35	0.15	1.90
0.4	23/0.15	0.35	0.15	2.10
0.5	28/0.15	0.35	0.15	2.15
0.6	19/0.20	0.35	0.15	2.20
0.75	19/0.23	0.35	0.15	2.30
1.0	19/0.26	0.35	0.15	2.50
1.2	19/0.28	0.40	0.15	2.60
1.5	19/0.32	0.40	0.15	2.90
2.0	49/0.23	0.40	0.15	3.40
2.5	49/0.26	0.40	0.15	3.90
3.0	49/0.28	0.45	0.15	4.00
4.0	77/0.26	0.45	0.15	4.80
5.0	98/0.26	0.45	0.15	5.10
6.0	77/0.32	0.45	0.18	5.60
8.0	98/0.32	0.50	0.18	6.00
10	126/0.32	0.50	0.18	7.10
13	133/0.26	0.60	0.22	7.60
16	209/0.32	0.60	0.22	9.00
20	247/0.32	0.60	0.22	9.40
25	209/0.39	0.60	0.22	10.4
35	285/0.39	0.60	0.22	11.0

About Us

1. We specializes in the spiral cables for more than 10 years, our professional teams can give you the best quality products, the best service and the reasonable price.
2. We are the manufacturer.
3. Any inquiries will be replied within 24 hours.
4. Quality is under control and supervision during the production. All products will strictly quality checked before packing. All products will be well packed before shipping.

Our Service
1.OEM/ODM available
(1). Printing your logo on the cable.
(2). Any your idea on cable and packing cartons are available.

2.Sample
Give us your application and your request---we recommend suitable cable.
Free samples if we have stocks otherwise we can customize it and charge some cost for it. And the sample cost will return you when receive your bulk order more than USD1000. Sample need 1-2 weeks to customized. if not customized product, sample provide within 3 days.
