Copper Flexible PVC Insulated Electrical/Electric Power Wire Cable

Prod Model:	power wire
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	PVC
Certification:	RoHS
Brand:	Hanli

Product Description

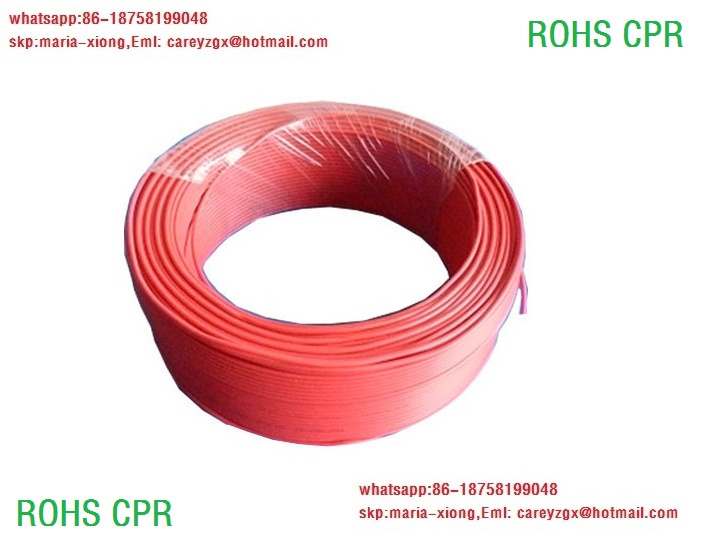

Copper Flexible PVC Insulated Electrical/Electric Power Wire Cable

450/750V PVC Insulated (Non-Sheathed) Flexible Conductor General Purpose Cables to BS 6004
Harmonized Code
Designation H07V-K
Single Core PVC Insulated

Size of conductor		Nominal thickness of insulation mm	Mean overall diameter Upper limit mm	Approx. Net weight per km Kg
Nominal Cross-sectional area mm2	Number and diameter of wires No. /mm
1.0	32/0.20	0.6	3.0	16
1.5	30/0.25	0.7	3.5	21
2.5	50/0.25	0.8	4.2	33
4	56/0.30	0.8	4.8	50
6	84/0.30	0.8	6.3	70
10	80/0.40	1.0	7.6	120
16	126/0.40	1.0	8.8	175
25	196/0.40	1.2	11.0	290
35	276/0.40	1.2	12.5	400
50	396/0.40	1.4	14.5	565
70	360/0.50	1.4	17.0	770
95	475/0.50	1.6	19.0	1010
120	608/0.50	1.6	21.0	1260
150	756/0.50	1.8	23.5	1580
185	925/0.50	2.0	26.0	1900
240	1221/0.50	2.2	29.5	2500

Notes
1. Conductor of high conductivity copper wires insulated with PVC compound.
2. Colors of standard: Red, black, brown, grey, orange, white, violet, pink, green/yellow, yellow


300/500V PVC Insulated PVC Sheathed Cables to BS 6004
Reference No 6181y
Single Core PVC Insulated and PVC Sheathed

Size of conductor		Nominal thickness of insulation mm	Nominal thickness of Sheath mm	Mean overall diameter		Approx. Net weight per km Kg
Nominal Cross-sectional area mm2	Number and diameter of wires mm			Lower limit mm	Upper limit mm
1.0	1/1.13	0.6	0.8	3.8	4.5	28
1.5	1/1.38	0.7	0.8	4.2	4.9	35
2.5	1/1.78	0.8	0.8	4.8	5.8	50
4	7/0.85	0.8	0.9	5.4	6.8	75
6	7/1.04	0.8	0.9	6.0	7.4	100
10	7/1.35	1.0	0.9	7.2	8.8	155
16	7/1.70	1.0	1.0	8.4	10.5	225
25	7/2.14	1.2	1.1	10.0	12.5	340
35	19/1.53	1.2	1.1	11.0	13.5	445

Notes
1. Conductor of high conductivity copper wires insulated with PVC compound. Sheathed with PVC compound.
2. Core colors: Red, black. Sheath colour: Grey or white.

Reference No 6192y
Flat Twin

Size of conductor		Nominal thickness of insulation mm	Nominal thickness of Sheath mm	Mean overall Dimensions		Approx. Net weight per km Kg
Nominal Cross-sectional area mm2	Number and diameter of wires mm			Lower limit mm	Upper limit mm
1.0	1/1.13	0.6	0.9	4.0*6.2	4.7*7.4	55
1.5	1/1.38	0.7	0.9	4.4*7.0	5.4*8.4	70
2.5	1/1.78	0.8	1.0	5.2*8.4	6.2*9.8	105
4	7/0.85	0.8	1.0	5.6*9.6	7.2*11.5	150
6	7/1.04	0.8	1.1	6.4*10.5	8.0*13.0	205
10	7/1.35	1.0	1.2	7.8*13.0	9.6*16.0	325
16	7/1.70	1.0	1.3	9.0*15.5	11.0*18.5	465

Notes
1. Conductor of high conductivity copper, wires insulated with PVC compound. Sheathed with PVC compound.
2. Color of sheath: Grey or white,


300/500V PVC Insulated PVC Sheathed Cables to BS 6004
Reference No 6193y
Three Core (Flat)

Size of conductor		Nominal Thickness of insulation mm	Nominal thickness of Sheath mm	Mean overall diameter		Approx. Net weight per km Kg
Nominal Cross-sectional area mm2	Number and diameter of wires mm			Lower limit mm	Upper limit mm
1.0	1/1.13	0.6	0.9	4.0*8.4	4.7*9.8	77
1.5	1/1.38	0.7	0.9	4.4*9.8	5.4*11.5	100
2.5	1/1.78	0.8	1.0	5.2*11.5	6.2*13.5	150
4	7/0.85	0.8	1.1	5.8*13.5	7.4*16.5	230
6	7/1.04	0.8	1.1	6.4*15.0	8.0*18.0	300
10	7/1.35	1.0	1.2	7.8*19.0	9.6*22.5	485
16	7/1.70	1.0	1.3	9.0*22.0	11.0*26.5	700

Notes
1. Conductor of high conductivity copper wires insulated with PVC compound. Sheathed with PVC compound.
2. Core colors: Green/ yellow blue and brown. Sheathed colors: Grey, white or black.





Notes:
Conductors of high conductivity copper wires, insulated with PVC compound, two cores twisted together.
