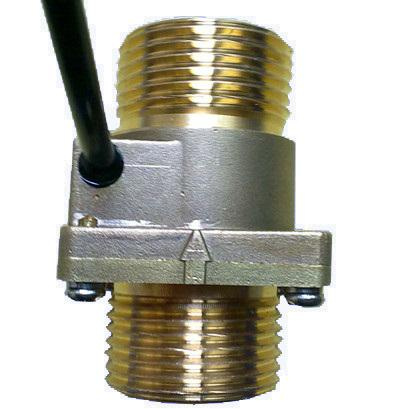

Copper Material Vane Flow Switch

Name: Copper Material Vane Flow Switch
Brand: all-electronics-online.com
SKU: 670463161
Availability: InStock
Rating: 4.4 (27 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FS-M-PDB01-GF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

We are first class retailer, wholesaler, and exporter for Vane Flow Switch FS-M-PDB01-GF in China since 2009. Quick response, fast delivery.
Vane Flow Switch FS-M-PS006 Brass Flow Sensor 1"BSP
Size: LXW=66mmX44mm
Electrical Characteristic

Contact form	NO (Normally Open)
Max Contact Rating	50W
Max Switch Voltage	300V
Max Switch Current	1.0A
Max Contact Resistance	200m ohm
Min insulation Resistance	100M ohm
Electrical Life	1x10 7 (5Vdc, 10mA)

Technical Characteristic:

Start-up Volume(Min)	6.0L/min
Operate Volume(Max)	50L/min
Standard Operate Pressure	0.05~0.4Mpa
Suffering Pressure	1.5Mpa
Operate Temperature	0~+100°C
Mounting Position	Vertical or Horizontal
Body Material	Brass

Our service:
1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.
2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping.
For an example:

Show room:
About us:
Founded in 2009, our company is committed to supplying a full range of pressure switches / transmitters / sensors, level switches / transmitters/ meters, flow switches / transmitters/ meters.
Our company is located in the "Capital of Electric Products", Liushi, Wenzhou. Besides, we set branch in Shanghai for automation control business in 2013.

Shanghai Office
ADD: Rm. 408, #1 Building, Shanghai Zhihui Science Park, No.11, lane 911, Hulan Road, Baoshan, Shanghai
Zipcode: 201900

Liushi Office
ADD: ROOM A111, JINHAO BUILDING,No.1-8 LIUWENG ROAD,LIUSHI ,YUEQING,WENZHOU
Zipcode: 325604

Yiwu Office
ADD: No. 146-3, Chouzhou North Road, Yiwu, Jinhua

Taizhou Office
ADD: No. 7, Xianqian Road, Yuhuan, Taizhou

More information, you can browse our website: www.bingo-sensor.com
