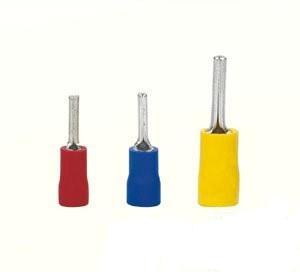

Copper Pre Insulated Cable Terminal Pin Shaped Terminal

Copper Pre Insulated Cable Terminal Pin Shaped Terminal
Price: US $ 0.254/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: PTV 2-13
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature: Pin-Shaped Insulated Terminal
Application: Conduct Electricity
Type: Single Hole Terminals
Material: Copper
Brand: Jma
Certification: CE

Product Description

1) Material: Purple copper
2) Cable size: 0.5-6mm2, thickness 0.7mm, 0.8mm, 1.0mm
3) Max current: 19A, 27A, 37A, 48A,


Vinyl insulated male pin terminal
1. Certifications: CE, SGS, ISO9001: 2008
2. Material: Copper or brass
3. Plating: Tin
4. Sleeve: Pvc or nylon

Specifications
1. Tinned surface
2. Apply Cable Size: 0.5 -6mm2
3. MOQ: 1000pcs
4. FOB Price: USD0.011-0.061
5. Capacity: 5000K pcs/month
Specification

1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, railway, shipbuilding, spaceflight & aviation, light industry, household electrical, computers, auto-equipment and etc.
2) Processing: Cold press
3) Material: T2 copper with tinned surface, credible conductivity; PVC insulation cover, no break or rebound.
4) Certificate: ISO9001-2008
5) Manufacturer: Price advantage, quick delivery
Item No

Dimesion ( mm )

Description

Tool

F Φ

L

E

H

D Φ

d Φ

T

PTN1.25-10

1.9

14.8

10.0

4.8

3.4

1.7

0.8

Cable Size:0.5~1.5mm2
(American standard22~16)
Max.current=19A


HX-10 LY-2026E
(Jaw 1.5)

PTN1.25-13

1.9

17.8

13.0

4.8

3.4

1.7

0.8

PTN1.25-17

1.9

21.8

17.0

4.8

3.4

1.7

0.8

PTN2-10

1.9

14.8

10.0

4.8

4.1

2.3

0.8

Cable Size:1.5~2.5mm2
(American standard16~14)
Max.current=27A

HX-10 LY-2026E
(Jaw 2.5)

PTN2-12

1.9

16.8

12.0

4.8

4.1

2.3

0.8

PTN2-13

1.9

17.8

13.0

4.8

4.1

2.3

0.8

PTN2-17

1.9

21.8

17.0

4.8

4.1

2.3

0.8

PTN5.5-13

2.8

19.8

13.0

6.0

5.6

3.4

1.0

Cable Size:4~6mm2
(American standard(12~10)
Max.current=48A

HX-10 LY-2026E
(Jaw 5.5)

PTN5.5-18

-

-

-

-

-

-

-
