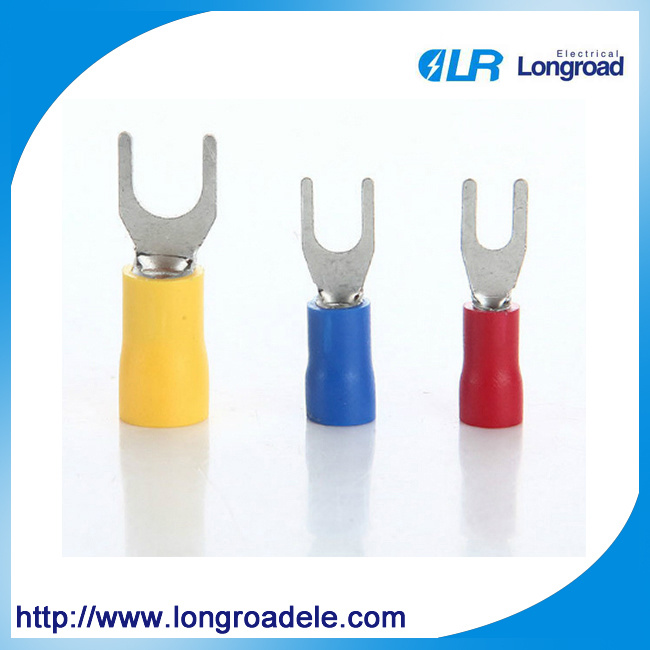

Copper Terminal Lugs, Crimp Type Terminal Lugs

Name: Copper Terminal Lugs, Crimp Type Terminal Lugs
Brand: all-electronics-online.com
SKU: 790088805
Availability: InStock
Rating: 4.5 (96 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SV-1
Model:	RV
Materials:	Copper
Shapes:	Round
Name:	Ring Shaped Insulated Terminal
Material:	Copper
Application:	Conduct Electricity
Type:	Insulated Terminal
Brand:	Tengen

Product Description

Specifications
Lead section: 0.5~1.5mm2(22~16) Max current: =9A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B (mm)	L (mm)	F (mm)	H (mm)	DØ (mm)	Color
RV1.25-3	#4	3.2mm	5.7	21.2	6.5	10.0	4.3	Red
RV1.25-3.5	#6	3.7mm	5.7	21.2	6.5
RV1.25-3.5	#6	3.7mm	6.4	21.2	6.5
RV1.25-4	#8	4.3mm	6.4	21.2	6.5
RV1.25-4	#8	4.3mm	7.2	21.2	6.5
RV1.25-4	#8	4.3mm	8.1	21.2	6.5
RV1.25-5	#10	5.3mm	8.1	21.2	6.5
RV1.25-5	#10	5.3mm	9.5	21.2	6.5
RV1.25-6	1/4	6.5mm	9.5	21.2	6.5
RV1.25-6	1/4	6.5mm	12.0	21.2	11.0

Lead section: 1.5~2.5mm2(16~14) Max current: =27A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B (mm)	L (mm)	F (mm)	H (mm)	DØ (mm)	Color
RV2-3	#4	3.2mm	5.7	21.2	6.5	10.0	4.9	Blue
RV2-3.5	#6	3.7mm	5.7	21.2	6.5
RV2-3.5	#6	3.7mm	6.4	21.2	6.5
RV2-4	#8	4.3mm	6.4	21.2	6.5
RV2-4	#8	4.3mm	7.2	21.2	6.5
RV2-4	#8	4.3mm	8.1	21.2	6.5
RV2-5	#10	5.3mm	8.1	21.2	6.5
RV2-5	#10	5.3mm	9.5	21.2	6.5
RV2-6	1/4	6.5mm	9.5	21.2	6.5
RV2-6	1/4	6.5mm	12.0	21.2	11.0

Lead section: 2.5~4mm2(14~12) Max current: =37A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B (mm)	L (mm)	F (mm)	H (mm)	DØ (mm)	Color
RV3.5-4	#8	4.3mm	8.0	24.8	7.0	12.5	6.2	Black
RV3.5-5	#10	5.3mm	8.0	24.8	7.0
RV3.5-6	1/4	6.5mm	12.0	28.0	12.1

Lead section: 4~6mm2(12~10) Max current: =48A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B (mm)	L (mm)	F (mm)	H (mm)	DØ (mm)	Color
RV5.5-3.5	#6	3.7mm	8.3	25.2	7.5	12.5	6.7	Yellow
RV5.5-4	#8	4.3mm	8.3	25.2	7.5
RV5.5-4	#8	4.3mm	9.0	23.9	7.5
RV5.5-5	#10	5.3mm	9.0	23.9	7.5
RV5.5-6	1/4	6.5mm	9.0	23.9	7.5
RV5.5-6	1/4	6.5mm	12.0	31.2	12.0
RV5.5-8	5/16	8.4mm	14.012.0	30.0	11.5

Long Road Electric Co. Ltd founded in 2010, is located in the largest manufacturing base of low-voltage electric equipment of Wenzhou China, which is called "the Electric Device Metropolis of China". Long Road Electric specialized in the SMC, DMC and PLASTIC materials energy meter boxes Manufacturing, International trade and service.

Long Road Electric Co, Ltd regards quality of products as life, Longroad Electric Co., Ltd has been granted ISO9001 management system certifications. The comprehensive product line has more than 100 models which have been approved by TUV, CE, CB, SGS, RoHS, SASO. The products sells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa, Nigeria etc...More than 70 countries and regions.

Long Road Electric Co. Ltd is always striving hard to provide the best services and competitve pricing to all customers.
