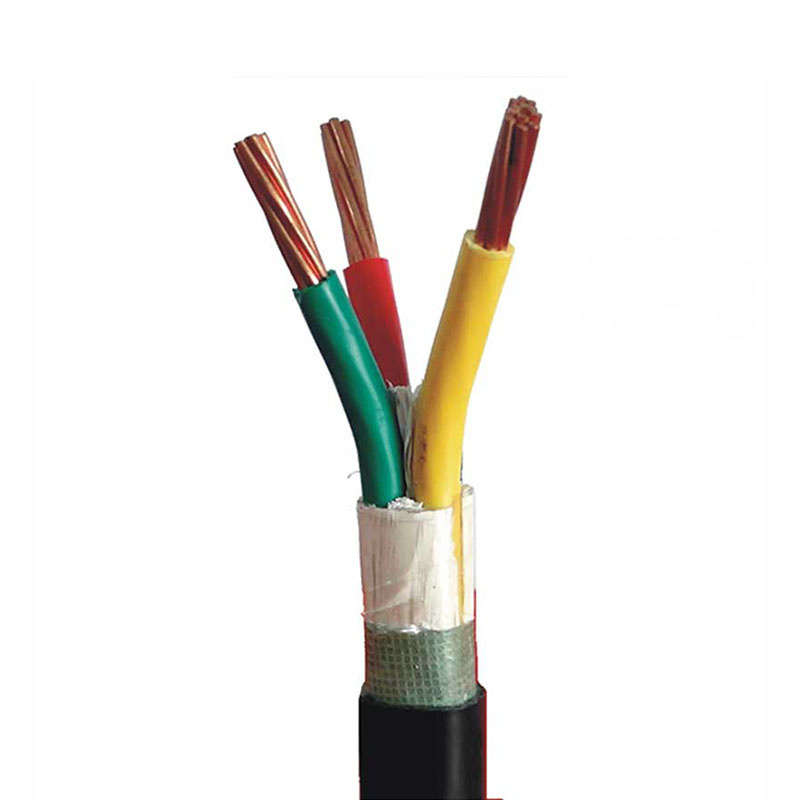

Copper XLPE Insulation PVC Sheath Shielded Electrical Power Cable

Name: Copper XLPE Insulation PVC Sheath Shielded Electrical Power Cable
Brand: all-electronics-online.com
SKU: 789383105
Availability: InStock
Rating: 4.9 (60 reviews)

Price:	US $ 0.1-15/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	3x16mm2
Popular Size:	95mm 120mm 150mm
Color:	Black,Red,Yellow,Blue,Brown,Green
Rated Voltage:	0.6/1kv
Business Type:	Manufacturer
Factory Location:	Henan
Standard Applicated:	IEC 60502-1
Key Word:	3 Core Armoured Cable
Key Words:	Armoured Cable
Key Words 2:	4 Core Armoured Cable
Key Words 3:	Aluminum Power Cable 4X95mm
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Brand:	Jytop

Product Description

Copper Conductor XLPE Insulation PVC Sheath Shielded Electrical Power Cable

1.     Applicable Standard:
GB/T 12706-2008, IEC 60502-2005

2.     Product Description:
For XLPE insulated power cable, either chemical method or physical method had been employed to transform the molecular of PE from liner structure into three-dimensional network structure, i.e. thermoplastic PE and been transformed into thermosetting XLPE. After cross-linking, the mechanical performance, heating aging property and ambient stress resistance have been greatly improved, while its excellent electrical properties are still maintained.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, hot water and irradiation cross-linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non halogen and three classes of A, B, C.

Maximum rated temperature of cable conductor is 90ºC
Maximum short-circuit temperature of cable conductor ≤ 250ºC
The temperature when laying cable ≥ 0ºC, The minimum bending diameter of cable is stipulated as follow:

For single-core cable: 20(D+d)±5% in mm
For multi-core cable: 15(D+d)±5% in mm
Where: D is the actual outer diameter of the cable
d is the actual outer diameter of the conductor.

3.     Name & Application

Type	Description	Application
VV	Copper ( Al) PVC insulation PVC sheath power cable	Can be laid in indoor tunnels and pipelines, can't bear external mechanical force.
VV22	Copper (Al) steel tape armored PVC insulation / sheath power cable	Can be laid in indoor tunnels and pipelines, can't bear external mechanical force.
VV32	Copper (Al) thin steel wire armored PVC insulation / sheath power cable	Can be laid in indoor tunnels and pipelines, can't bear external mechanical force.
VV42	Copper (Al) thick steel wire armored PVC insulation / sheath power cable	Can be laid in indoor tunnels and pipelines, can't bear external mechanical force.
YJV	Copper ( Al) XLPE insulation PVC sheath power cable	Can be laid indoor, outdoor, tunnels, reinforced concrete pipelines or loose soil. Cable can't bear outer mechanical force, but can bear a certain traction force.
YJV22	Copper (Al) steel tape armored XLPE insulation PVC sheath power cable	Laid underground, cable be bear outer mechanical force, but should not bear a large traction force.
YJV32	Copper (Al) thin steel wire armored XLPE insulation PVC sheath power cable	Laid indoor, tunnel or mines. Cable can bear outer mechanical force and fairly large traction force.
YJV42	Copper (Al) thick steel wire armored XLPE insulation PVC sheath power cable	Can be laid in vertical section, indoor, tunnels or mines. Cable can bear outer mechanical force and very large traction force.

4. Specification

Type		Voltage	Section	Core Number
VV	YJV	0.6/1kV	1.5-800mm2	1
VV22 VV32	YJV22 YJV32		2.5-400mm2
VV42	YJV42		10-400mm2
VV	YJV	0.6/1kV	1.5-400mm2	2
VV22 VV32	YJV22 YJV32		2.5-400mm2
VV42	YJV42		4-400mm2
VV	YJV	0.6/1kV	1.5-400mm2	3
VV22 VV32	YJV22 YJV32		2.5-400mm2
VV42	YJV42		4-400mm2
VV VV22	YJV	0.6/1kV	4-400mm2	4,3+1,5, 4+1, 3+2
VV32 VV42	YJV32 YJV42	0.6/1kV	4-400mm2	4,3+1,5, 4+1, 3+2

5. Top Ranking Manufacture Equipment for HV/MV/LV of Power cables from Professional Suppliers

Name	Type	Origin	Application
35KV Cable production line	CCV	Maillefer Finland	Production of medium voltage insulation wire core
35KV Cable production line	CCV	TROESTER Germany	Production of medium voltage insulation wire core
110KV Cable production line	CCV	TROESTER Germany	Production of high voltage insulation wire core
500KV Cable production line	VCV	Maillefer Finland	Production of high voltage insulation wire core
500KV Cable production line	VCV	TROESTER Germany	Production of high voltage insulation wire core
35KV rubber cable production line	CCV	TROESTER Germany	Production of medium voltage rubber cables
630 Frame type stranding machine	91 wires	Pourtier France	Production for blocks of large section conductor
3600 Drum-twister for milliken conductor	DPTC3600	Pourtier France	Production for blocks of large section conductor
High voltage cable out-sheath Product Line	Φ150+90	Germany (Shanghai) TROESTER Machinery Co., Ltd.	Production for EHV cable double sheath

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
