Copy Printed Circuit Rigid PCB Board Supplier

Copy Printed Circuit Rigid PCB Board Supplier
Price: US $ 1/Piece
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: FD-BOARD
Type: Rigid Circuit Board
Flame Retardant Properties: HB
Dielectric: FR-4
Material: Paper Phenolic Copper Foil Substrate

Product Description

Product Description

printed circuit board :

1.Board thickness: 1.6mm

2.Material: FR4

3.Surface treatment: Immersion gold

4.Copper Thickness:1oz


Our PCB board manufacture and PCB assembly service:

1. PCB board file with parts list provided by customers

2. PCB board made, circuit board parts purchased by us

3. High Quality,competitive Price & Best Service

4.100% E-tested PCB


Technical capability & support

Sunthone aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry.

Layers1-16 layersMin Board Thickness(2-layer)0.2mm
Max Board Size635 × 1100mmMin Board Thickness(4-layer)0.6mm
Min Board Size20 × 30mmMin Inner-layer Thickness0.1mm
Min Trace0.1mmMin Annular Ring0.1mm
Min Space0.1mmMin Hole Location Tolerance±0.075mm
Min Hole Size0.2mmMin Hole Size Tolerance±0.05mm
Board Wrap≤ 1°Min Outer Dimension Tolerance±0.1mm
Solder MaskGreen, Yellow, Red, Black, Blue, White
Surface FinishHAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP
Board MaterialFR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic
Acceptable fileGerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD
CAM softwareGenesis, CAM350

Service for productoion

Sunthone employs and develops a team of experienced management directors and efficient production workers, with its sustainable development, career planning, advanced training-system and satisfactory welfare for all staff. On the other hand, Sunthone strives to improve quality and lead time through management and technology innovation.
Standard leatime
Double sides4WD
4 layers5WD
6 layers6WD
8 layers7WD
10 layers8WD
12 layers8WD
14 layers9WD
More than 16 layersUp to difficulty

Competitive Price
Sunthone puts many PCB prototype and sample jobs on one panel, and produces them together. And our experienced management team keep the management and production cost under controlled. These advantages provide enough profits to Sunthone, as well as greatly reduce customer's purchase cost.

Sunthone works with customers to reduce their purchase cost, by our rich experience in management and manufacture, maximized utilization of materials and facilities, and well-trained operational workers. Sunthone's price can be as low as 20% only of some other competitors on some cases.
Management InnovationRaw Material Utilization RateFacilities Utilization RateLabor Efficiency
Sunthone100%100%95%
Competitors50%30%50%
ValuesMaximized raw material utilization reduces the material cost greatly, and enables Sunthone to use better raw materials.Maximized facilities utilization improves Sunthone's production efficiency and shorten the lead time.High labor efficiency reduces labor cost, and enables Sunthone to provide better training and welfare for the workers.
Customer BenefitsBetter quality with better raw materials.Saves valuable time and money for customer.Well trained and efficient worker improves quality and lead time.


Others service can be provided
Quick response, Sunthone will reply Customer's any enquiry within 2 hours;
More than 180 type of PCB can be worked out Every day;
24 hours technique Support;
24 hours Engineering Gerber files treatment.
24 hours English Engineering Questions Confirmation by E-mail.
Experienced Impedance Designer.
Supply the best project fit for production customized

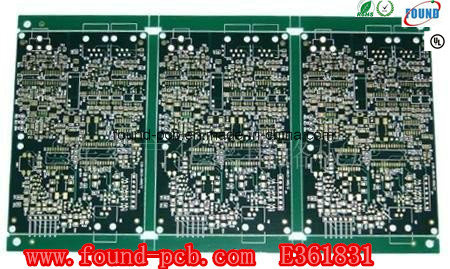

Products Show:

Testing Procedures For PCB Board:

---We perform multiple quality assuring procedures before shipping out any PCB board. These include:

* Visual Inspection

* Flying probe

* Impedance control

* Solder-ability detection

* Digital metallograghic microscope

* AOI (Automated Optical Inspection)



Quotation Requirement :

--- Following specifications are needed for quotation:

a) Base material

b) Board thickness

c) Copper thickness

d) Surface treatment

e) color of solder mask and silkscreen
f) Quantity

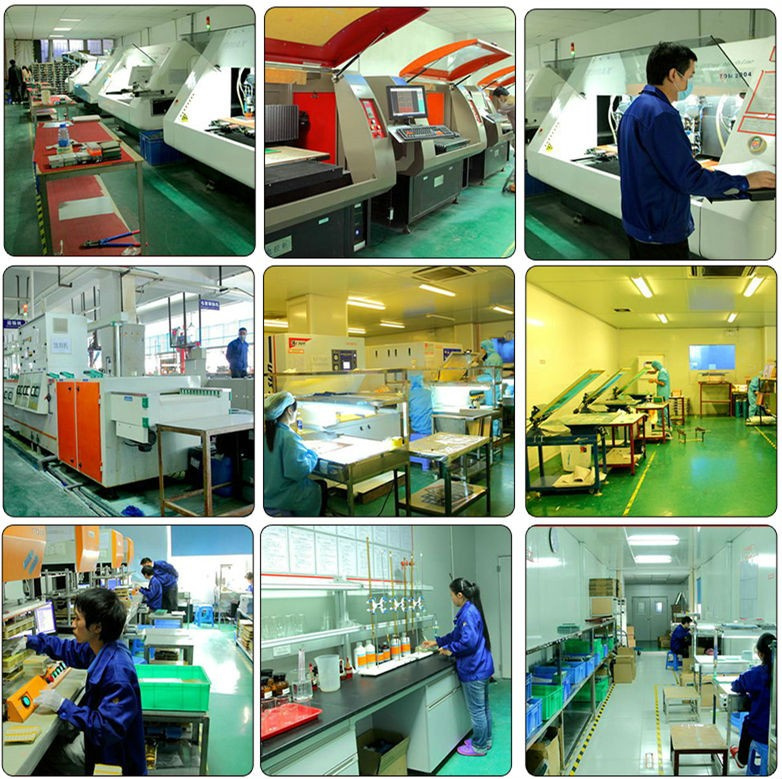

 Equipment


Custom Design Multilayer 2oz 1.6mm PCB Board Supplier
Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.

A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.

We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).

We welcome the every opportunity to working for you. We have the good name in the PCB market.
