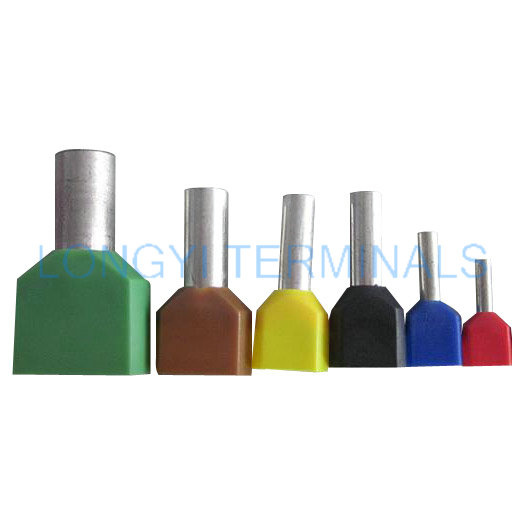

Cord-End Twin Terminals

Name: Cord-End Twin Terminals
Brand: all-electronics-online.com
SKU: 689260245
Availability: InStock
Rating: 4.8 (46 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1 /Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Cable Lugs

Product Description

CORD-END TERMINALS
1, cable lugs are suitable for the connection of copper conductors in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.
3, Working temperature -55oC-150oC
4, Surface: Tin-plated

PART NO	ITEM NO	COND	DIMENSIONS mm						COLOR SYSTEM
PART NO	ITEM NO	mm 2	D1	D2	L	L1	S1	S2	DIN	W	T
LY0022-0001	CT205008	2*0.50	1.50	2.5/4.7	15.0	8.0	0.15	0.25	WHITE	ORANGE	WHITE
LY0022-0002	CT207508	2*0.75	1.80	2.8/5.0	15.0	8.0	0.15	0.25	GREY	WHITE	Blue
LY0022-0003	CT207510	2*0.75	1.80	2.8/5.0	17.0	10.0	0.15	0.25	GREY	WHITE	Blue
LY0022-0004	CT210008	2*1.00	2.05	3.4/5.4	15.0	8.0	0.15	0.30	RED	YELLOW	RED
LY0022-0005	CT210010	2*1.00	2.05	3.4/5.4	17.0	10.0	0.15	0.30	RED	YELLOW	RED
LY0022-0006	CT215008	2*1.50	2.30	3.6/6.6	16.0	8.0	0.15	0.30	BLACK	RED	BLACK
LY0022-0007	CT215012	2*1.50	2.30	3.6/6.6	20.0	12.0	0.15	0.30	BLACK	RED	BLACK
LY0022-0008	CT225010	2*2.50	2.80	4.2/7.8	18.5	10.0	0.20	0.30	BLUE	BLUE	GREY
LY0022-0009	CT225013	2*2.50	2.80	4.2/7.8	21.5	13.0	0.20	0.30	BLUE	BLUE	GREY
LY0022-0010	CT240012	2*4.00	3.70	4.9/8.8	23.0	12.0	0.20	0.40	GREY	GREY	ORANGE
LY0022-0011	CT260014	2*6.00	4.80	6.9/10.0	26.0	14.0	0.20	0.40	YELLOW	BLACK	ORANGE
LY0022-0012	CT2100014	2*10.00	6.40	7.6/12.8	26.5	14.0	0.20	0.50	RED	IVORY	BROWN
LY0022-0013	CT2160014	2*16.00	8.30	9.6/18.6	31.5	14.0	0.30	0.50	BLUE	GREEN	IVORY

Taixing Longyi Terminals Co., Ltd is joint capital enterprise, was found in 1999. The company enjoys superior geographical location, which is only 1 km away from north exit in taixing of Ningtong High-way (the connection with Beijing-Shanghai Highway), separating with the most dynamic regions of Suzhou, Wuxi and Changzhou in Yangtze River by the river.

The company always manufacture and supply many types of copper tubes, copper plates, which is specialized in various standards of copper terminals, insulated and non-insluated terminals, LT(European style) terminals etc, with more than 4000 of specifications and an annual output of several billions. the output of copper tube terminal ranks NO 1 in China. the products are widely used in such industries as electric industry, control cabinet, household appliance, wiring harness manufacture industry etc. In 2009, company invest tens of millions on advanced and professional copper raw material production equipments for copper smelting and processing. we now make the material by ourselves for copper tube, copper sheet, copper bar etc, which both meet the needs of matching supply from customers and let our company is more competitive on delivery, quality, price etc.

We are strong in technical strength, advanced in production equipment, and scientific in management structure; all the products mould are designed and maken by ourselves. our company had passed the ISO9001-2000, all the products are in compliance with RoHS, REACH and CE. A part of consignment products(E182951, E255748) and OEM products (E319294)are in compliance with UL. over 60% of our products are exported to Spain, England, Holland, America, South-east Asia, Taiwan etc. we are supporting products to match with many famous domestic companies, such as Toshiba Electrical Transformer, Haier, Zhongxing Telecommunications, Bombardier, Siemens etc.

LongYi always follow the operating principle of "people oriented, tech on base, quality first and service supreme " and the quality policy of "constant improvement, high-class product, perfect service" we welcome guests and friends from home and abroad for instruction and cooperation, to create a bright future mutually.
