Cord Terminal

Name: Cord Terminal
Brand: all-electronics-online.com
SKU: 778427755
Availability: InStock
Rating: 5 (20 reviews)

Price:	US $ 10/Bag
Trade Terms:	FOB
Min Order:	2000/Bag
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	E0506
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Conduct Electricity

Product Description

Shrinkable Terminal
1.Insulation Material :

2. Conductive material: Copper/Brass

3. A.W.G: 22-18, 16-14, 12-10

4.Color: red/bule/yellow

5.Certificate:CE,ISO9001

6. Wire range:0.5-1.5,1.5-2.5, 4-6 square millimetre

7.Packing:Every 100pcs packed in a plastic bag ,product details will be writen on label in every plastice BAG ! We also can accept client 's ideas.Unique packaging.Depending on the size of the different way of packing. Try our best to do the best !More flexible packaging, saves the size, save freight cost!

8.Delivery time: 10-20days after order confirmed.

150ºC Ui=300V Red Copper Pipe Nylon

ITEM.NO.	CONDUCTORmm2	DIMENSION						COLOR
ITEM.NO.	CONDUCTORmm2	F	L	W	B	D	C	COLOR
TE-0508	2×0.5	8.0	14.5	5.0	6.5	1.8	1.5	White
TE-7508	2×0.75	8.0	14.7	5.5	6.7	2.1	1.8	Blue Grey
TE-7510	2×0.75	10.0	16.07	5.5	6.7	2.1	1.8	Blue Grey
TE-1008	2×1.0	8.0	15.1	5.5	7.1	2.3	2.0	Red
TE-1010	2×1.0	10.0	17.1	5.5	7.1	2.3	2.0	Red
TE-1508	2×1.5	8.0	15.5	6.4	7.2	2.6	2.3	Black
TE-1512	2×1.5	12.0	19.5	6.4	7.5	2.6	2.3	Black
TE-2510	2×2.5	10.0	18.5	8.0	8.5	3.3	2.9	Grey
TE-2513	2×2.5	13.0	21.5	8.0	8.5	3.3	2.9	Blue
TE-4012	2×4.0	12.0	23.1	8.8	11.1	4.2	3.8	Orange Grey
TE-6014	2×6.0	14.0	26.1	9.5	12.1	5.3	4.9	Green Yellow
TE-10-14	2×10.0	14.0	26.6	12.6	12.0	6.9	6.5	brown green Red
TE-16-14	2×16.0	14.0	31.3	19.0	17.3	8.7	8.3	Milky white White

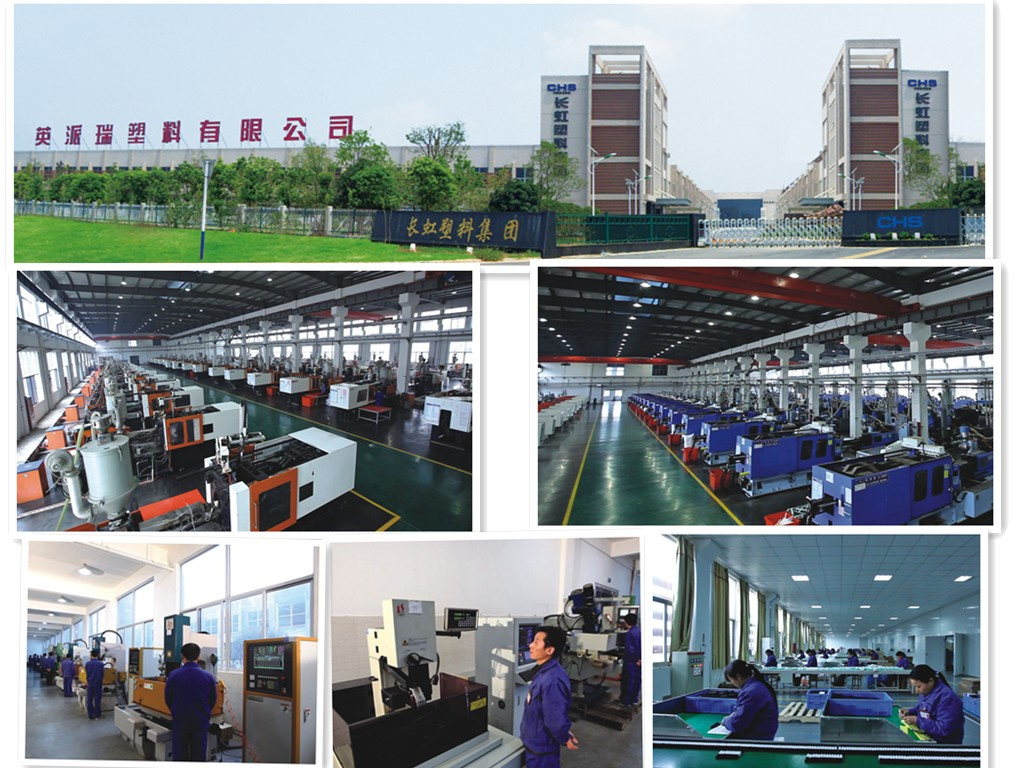

Headquarters: Xinguang Industrial Zone, Liushi, Yueqing, Zhejiang, China. President: Zheng Yuanhe
Production Base: Xinwu Economic development Zone, Wuhu, Anhui.
Date of Establishment: July 7, 1989. Registration Fund: RMB50, 500, 000
Floor Space: 150000m2 Building area: 230000m2 Employees: 1100(Mar, 15, 2012)
Main Product: self-locking nylon cable ties and other kind of nylon cable ties, stainless steel cable ties, cable clips, terminal blocks,
insulated terminals, wire joints, tie mounts, spiral wrapping bands, wiring ducts, cable glands, and other wire accessories.
Philosophy of CHS: Living on quality, developing on credit.
Approval Certificates:
In 1998, CHS was approved by ISO9001 International Quality System.
In 1999, Cable ties were certified by UL.
In 2000, Terminal blocks were awarded CE certificate.
In 2002, Cable glands got CE approval and passed IP 68 test by England UKAS Inspection Institution.
In 2004, Insulated terminals got the CE approval.
In 2005, Cable ties were awarded DNV certificate by Norway Ship Classification Society.
In 2006, CHS products passed SGS tests, conforming to the environment-protection standard of EU.
In 2007, CHS is chosen as "Chinese Famous Brand"
In 2008, Terminal blocks were certified by NF.
Wire ioints were certified by UL.
CHS was approved by ISO14001-Environmental Management system.
In 2009, CHS was named "Zhejiang Brand Product".
In 2010, CHS was named "Wenzhou Top Export Brand".
In 2010, CHS was named "Zhejiang Top Export Brand".
CHS was approved by OHSAS18001.
CHS was upgraded to group "Changhong Plastics Group".
CHS's production base-Wuhu in Anhui now is put into operation formally
