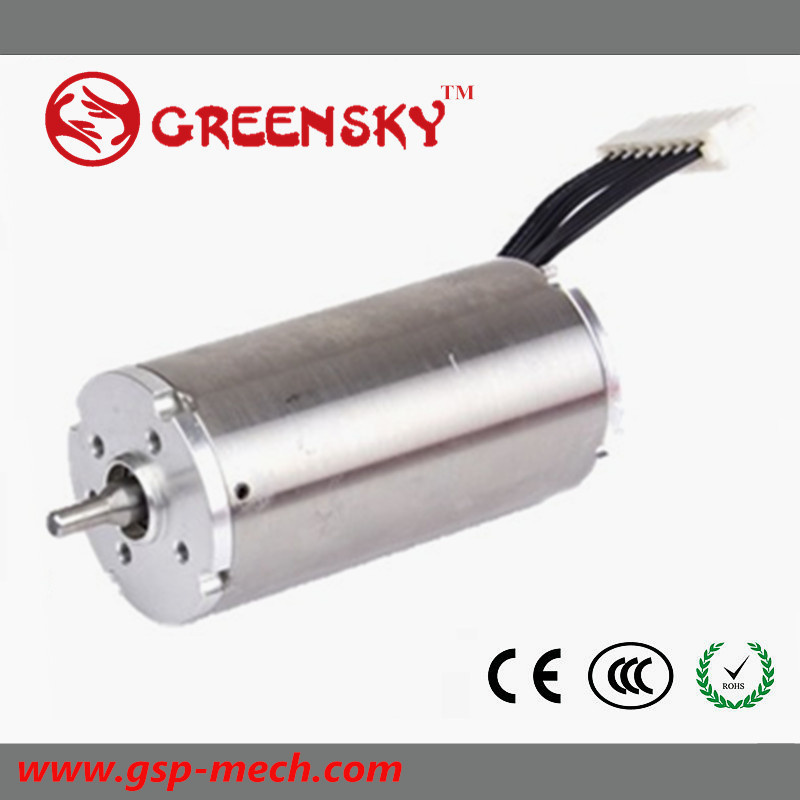

Coreless Brushless DC Motors with Long Lifetime

Name: Coreless Brushless DC Motors with Long Lifetime
Brand: all-electronics-online.com
SKU: 774840675
Availability: InStock
Rating: 4.5 (69 reviews)

Price:	US $ 159.24/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GSCB3062
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Speed:	14 000rpm (More or Less)
Rated Power:	5W~85W
Rated Voltage:	24V/36V
Diameter:	16mm~36mm
Technology:	Can Be Customized
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	CCC, CE, UL, Cu
Brand:	GS

Product Description

5W~85W 16~36mm Coreless Brushless Motor, Gear Motor

Introduction

We have both DC gear motor and Brushless dc gear motor, including 6 kinds of products. The watt is from 6W to 660W, voltage is from 6V to 220V. The feature of our motors are steady work, low rpm and high torque, low noise, high efficiency and long life.

Specification

The datasheet is 30mm coreless brushless motor's info as reference.
Power 5W to 85W is also can be provided.

GSCB3062	UNIT	001
RATED VOLTAGE	V/DC	36
RATED SPEED	RPM	14000
NO LOAD SPEED	RPM	16000
NO LOAD CURRENT	mA	400
RATED CURRENT	mA	2600
RATED TORQUE	mN.m	50
RATED POWER	W	73.3
MAX EFFICIENCY	%	79
RESISTANCE PHASE TO PHASE	OHM	1.3
TORQUE CONSTANT	mN.m/A	17.9
SPEED CONSTANT	RPM/V	533
WEIGHT	G	210

AMBIENT TEMPERATURE RANGE		- 20~ 55ºC
MAX PERMISSIBLE WINDING TEMPERATURE		85ºC
MAX PERMISSIBLE SPEED		25000rpm
MAX AXIAL LOAD		3.0N
MAX RADIAL LOADING		12.0N
NUMBER OF THE POLE PAIR		1
NUMBER OF THE PHASES		3

Note:
The Voltage, Power and Speed can be customized according to your request under the allowed circumstance of adoptable dimension.

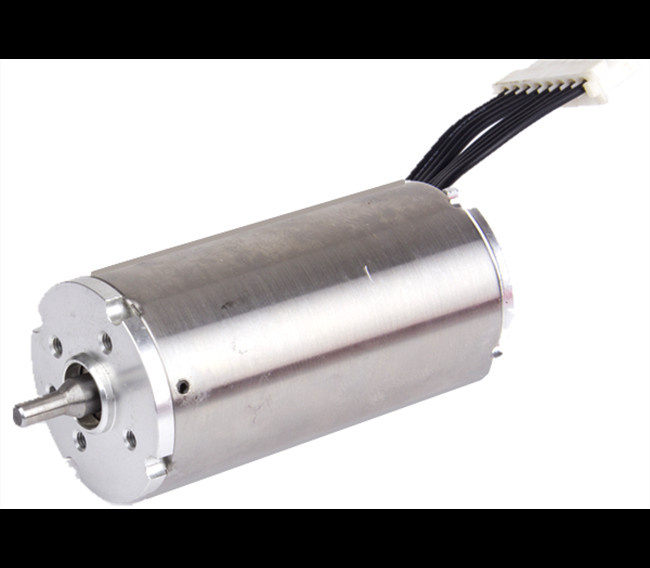

View Of Item

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.
Introduce: Greensky Mechanical Co., ltd is a subsidiary company of Greensky Power which is producing micro AC and DC gear motor, small AC gear motor, precision planetary gearbox for servo motor, and it has capability to design and develop the micro motor, customized motor and precision gearbox, motor controller with high quality.
Philosophy:We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

Greensky's Advantage
On the site you can find a range of renewable products including AC/DC motor,AC Induction Motor,Reversible Motor,Blake Motor,Speed motor,AC Angel Motor,Gear Motor,Planetary Gear Box,Worm Gear Box and their relevant components.

If you have any other questions, please feel free to contact us.
