Cost-Effective Pressure Transmitter Ppm-T332A with Display

Name: Cost-Effective Pressure Transmitter Ppm-T332A with Display
Brand: all-electronics-online.com
SKU: 813578695
Availability: InStock
Rating: 4.4 (99 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-T332A
Pressure Range:	0...0.2~0...60MPa
Certification:	CMC

Product Description

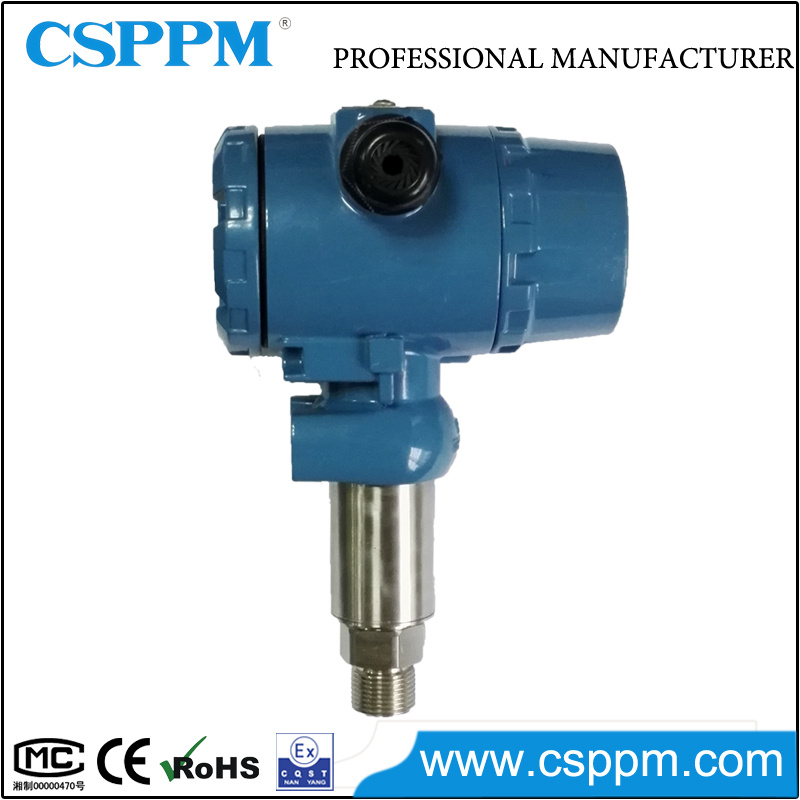

PPM-T332A pressure transmitter for ultra-low temperature application

Description

The model PPM-T332A pressure transmitters have been specifically designed for ultra-low temperature applications. These pressure transmitters can measure the pressure of liquid at ultra-low temperature -196ºC. They features high measurement accuracy, fast dynamic response speed, high long-term stability. Different kinds of output signal are available, including 4-20mA, 0-5V. Customization services is welcome.

Features

1. Wide medium temperature ranges:-196…150ºC

2. high accuracy up to 0.1%FS

3. long service life

4. Resistant to high and low temperature

Application:

1. Low temperature experiment

2. Low Temperature Storage Tank

3. industrial application

Specification

Measuring medium	Gas, liquid
Pressure type	Gauge pressure(G), Sealed pressure(S), Differential pressure(D), Absolute pressure(A)
Pressure range	0…0.2~0…60MPa
Power supply	12~32VDC
Output signal	4~20mA ,0~5VDC
Nonlinearity	≤0.1% FS
Non-repeatability	≤0.05% FS
Accuracy	0.1%FS, 0.2%FS, 0.5%FS
Long-term stability	0.2%FS/year
Medium temp	-55~+125ºC, -70~+125ºC, -196~+125ºC
Operation temp	-40~+105ºC
Zero drift	1~4%FS
Full scale drift	1~4.5%FS
Frequency response	≥1kHz
Insulation resistance	≥100 MΩ/50V
Overpressure	150%FS (1.5 times FS)
Damage pressure	300%FS (3 times FS)
Vibration resistance	5~1000Hz
Shcok resistance	50g, 20ms
Process connections	1/4NPT, 1/2NPT, M20×1.5, or other process connections on request
Materials	Wetted parts: 15-5PH,17-4PH, or stainless steel 316. Non-wettedparts: stainless steel 1Cr18Ni9Ti
Relative Humidity	95%RH
Ingress protection	IP65
Electrical connections	cable connection

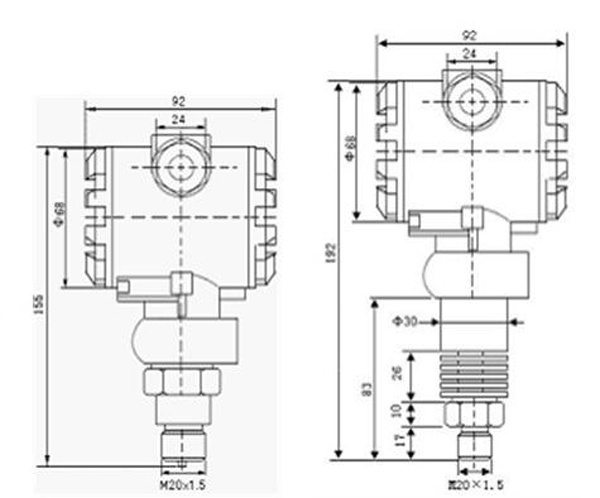

Dimension in mm

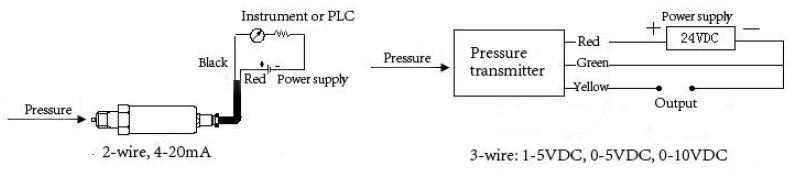

Wiring diagram

Order information

Model PPM-T332A Pressure Transmitter
	Code	Pressure type
	G	Gauge pressure
	S	Sealed pressure
	D	Differential pessure
	A	Absolute pressure
		Code	Pressure ranges
		M	0~ X MPa
		K	0~ X KPa
		P	0~ X Pa
			Code	Accuracy
			1	±0.5%FS
			2	±0.25%FS
			3	±0.1%FS
			4	0.075%
				Code	Output signal
				V0	mV
				A1	4~20mA
				V1	0~5V DC
				V2	1~5V DC
				V3	0.5~4.5V DC
				V4	0~10V DC
				A0	Others
					Code	Operation temperature
					T1	-10~70ºC
					T2	-25~85ºC
					T3	-30~125ºC
					T4	-45~150ºC
					T5	-10~175ºC
					T0	Others
						Code	Power supply
						D1	5VDC
						D2	10VDC
						D3	24VDC(9-32)VDC
						D0	Other
							Code	Process connection
							M1	M20x1.5
							M2	M14 x1.5
							M3	M10x1
							G1	G1/4
							G2	G1/2
							N1	1/4NPT
							N2	1/2NPT
							F0	Other
								Code	Electrical connectiong
								W1	Cable outlet
								W2	DIN43650
								W3	Circular connector M12 x 1
									Code	Other
									P1	Commom
									P2	Non-cavity diaphragm

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
