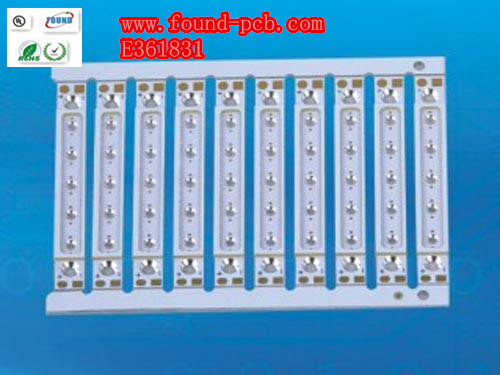

Counter Sink Screw Holes PCB

Name: Counter Sink Screw Holes PCB
Brand: all-electronics-online.com
SKU: 731682842
Availability: InStock
Rating: 4.6 (29 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FD-0065
Type:	Rigid Circuit Board
Flame Retardant Properties:	HB
Dielectric:	FR-1
Material:	Paper Phenolic Copper Foil Substrate

Product Description

The products:
Single-side PCB: CEM-1, FR-2, FR-1 XPC-94HB
Double-side PCB: FR-4, CEM-3, High Tg, Aluminum, Halogen Free
Multi-layer PCB: 4 to 22 layers(FR-4, High Tg, Rogers)
Certification: UL, ISO9001, ISO/TS16949: 2002, IS014001 and RoHS
THE CAPACITY OF PRODUCTION: 50, 000SQM. /month

Item		Capabilities
Number of Layers		From 4-layer to 22- Layer
Material		FR-4,HighTg, Rogers Halogen Free
PCB Thickness	Min.thickness	0.4mm(16mil)
	Max.thickness	3.2mm(128mil)
Surface finished		Gold Plating
		Immersion Gold(Silver)
		HAL Lead Free
		Hot Air Solder Leveling(HASL)
		Entek Coating (OSP)
Solder Mask		Green,White,Black,Yellow,Red,Blue
Other printing		Gold Finger
		Carbon Print, Peelable Mask
		Solder Mask Plugged Hole
Copper thickness		1/ 2 oz (18 μm) - 4 oz (140 μm)
Min. Finished Hole Size		0.2mm(8mil)
Hole Size Tolerance (PTH)		+/ -0.076mm (3 mil)
Hole Size Tolerance (NPTH)		+/-0.05mm (2 mil)
Min. Line Width and Spacing		0.1mm (4 mil)
Min. Solder Mask Clearance		0.05mm (2 mil)
Min. Annular Ring		0.076mm (3mil)
Profile and V-Cut		CNC-Routing, Stamping and Beveling,V-CUT,CNC
Special Process		Micro-section, Chamfer for Gold Finger
File format		Gerber file , CAM350 ,Protel,PowerPCB
E-TEST		Flying Prob , E-test ,Fixture
Other Test		Impedance , Slice up
Warp & Twist		≤0.7%

Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.

A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.

We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).

We welcome the every opportunity to working for you. We have the good name in the PCB market.
