Name: Coupler Fiber Patch Cord Attanuator SFP
Brand: all-electronics-online.com
SKU: 798954235
Availability: InStock
Rating: 4.8 (52 reviews)

Price:	US $ 5-10/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	sfp
Wavelength:	850nm/1300nm/850&1300nm
Ports:	1 Input, 2 Output
Fiber Type:	Single Mode,Om1 Om2 Om3 Om4 (Optional)
Usage:	FTTH,CATV,Telecom,Fiber Optic
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	RoHS

Product Description

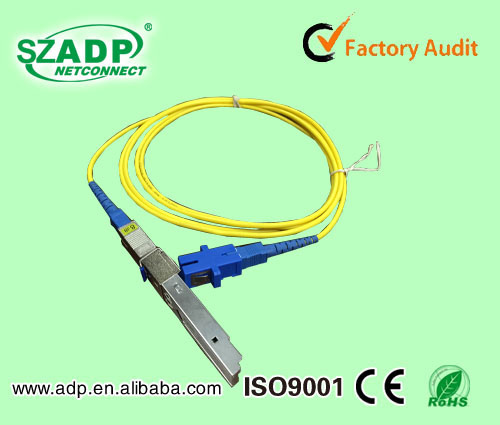

coupler fiber patch cord attanuator SFP

Description
The Multi-Mode Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi windows. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant

Applications
LAN
Core Room
Video Surveillance
Fiber Optical Sensor

Ports	Wavelength	Coupling ratio	Fiber Type	Pigtail Dia.	Pigtail Length	Package	Connector Type
12=1x2	85=850nm	01=01/99	OM1(62.5/125)	02=0.25mm	05=50cm	A1(2, 3, 4)	FU(A)=FC/UPC(APC)
22=2x2	13=1300nm	02=02/98	OM2(50/125)	09=0.9mm	10=100cm	B1(2)	SU(A)=SC/UPC(APC)
/	83=850&1300nm		OM3(50/125)	20=2mm		C1(2)
	/	40=40/60	OM4(50/125)	30=3mm	20=200cm	D1	LU(A)=LC/UPC(APC)
		00=50/50	/	X=Customization

Package and Mounting Dimension (mm)

Stainless Steel Tube (A)

Plastic Box (B)

Aluminum alloy Box (C)

Aluminum alloy Rack (D)

Outline

Mounting

Outline

Mounting

Outline

A1=Φ3x50

A5=Φ5.5x34

B1=90x20x9.5

50x12x2Φ3.2

C1=85x18x8.4

44.5x13x2Φ3

D1=129x29x160

A2=Φ3x54

A6=Φ5.5x38

B2=100x80x10

70x73.5x4Φ3.2

C2=90x72x8

86x68x4Φ3

D2=129x58x160

A3=Φ3x60

A7=Φ5.5x50

B3=120x80x18

80x74.5x4Φ3.2

C3=110x95x7.5

99x84x4Φ3.5

D3=485x43.5x230

A4=Φ5x70

A8=Φ5.5x64

B4=141x115x18

100x106x4Φ3.2

C4=110x95x15

99x84x4Φ3.5

D4=485x87x230

Item

φ0.25 Stainless

φ0.9 Stainless

φ2/3 Stainless

φ0.9(φ2,φ3) Plastic

φ0.9(φ2/φ3) Aluminum Alloy

LGX

19' Rack

1x2

2x2

Specification

Operating Wavelength(nm)	850±20/1310±20		850&1310±20		Parameter	Unit	Value
Coupling Ratio (%)	Insertion Loss (dB)				Fiber Type	/	OM1/ OM2/ OM3/ OM4
Coupling Ratio (%)	Tap	Signal	Tap	Signal	Fiber Type	/	OM1/ OM2/ OM3/ OM4
03/97	14.6-17.5	≤0.70	14.0-19.5	≤0.90	Directivity	dB	>36
05/95	12.8-14.5	≤0.80	12.5-15.0	≤1.00	Return Loss	dB	>36
10/90	9.20---11.5	≤1.20	9.00-12.0	≤0.20	Excess Loss	dB	Typ.:<0.4 Max.:<0.7
20/80	6.70---7.80	≤2.20	6.60---8.20	≤0.20	Pigtail Dia.	mm	0.25 /0.9 / 2 / 3
33/67	4.70---6.00	≤2.50	5.00---6.40	≤0.20	Pigtail Length	cm	>50
40/60	3.80---4.70	≤2.70	3.60---5.00	≤0.20	Operating Tem.	ºC	-10~ +70
50/50	2.90---3.80		2.80---4.00		Storage Tem.	ºC	-40~ +85
