| Prod Model: |
GPT26 |
| Battery Capacity: |
7000mAh |
| GPS Positioning Accuracy: |
5-15m |
| Lbs Positioning Accuracy: |
200m |
| Model Number: |
Gpt26 |
| Voltage: |
3.7VDC |
| Work Current: |
<30mA |
| Standby Current: |
<15mA |
| GSM Frequency: |
850/900/1800/1900MHz |
| Dimensions (mm): |
108.5(L) × 66.5(W) × 22.4(H) |
| Weight: |
180 G |
Product Description

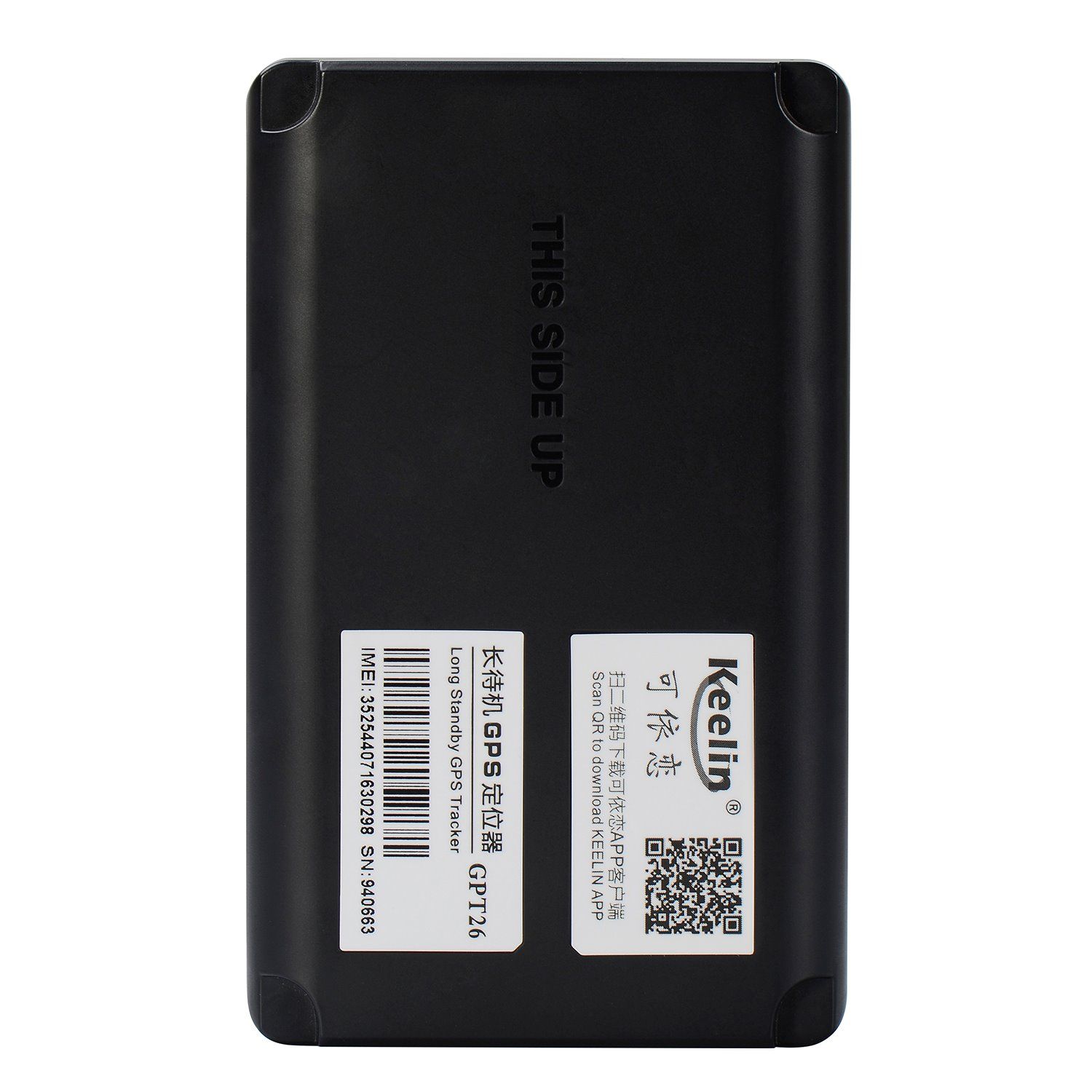

GPT26 Covert Magnetic Gps Tracker Tracking Device Car Vehicle Spy Hidden
GPT26 as Magnetic Vehicle GPS Tracker, GPS Tracker Devices with Magnet, Magnetic GPS Car Tracker, Waterproof GPS Vehicle Tracker is the smallest 'LIVE' asset tracker, It has be now boasts a battery life well over 5days and can even last up to 30 days (depending on settings) on one single charge.
Tracking this device can be carried out via SMS and will provide map link and actual street addresses provided by google, and it can also connect to out GPS platform for automatic logging.
This device is also supplied with a purpose built waterproof magnetic case which will securley attach to any metalic surface, tracking your assets has never been easier.
Product Description
PRODUCT FEATURES:
Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
Built-in 7000mAh High-capacity battery, The longest standby for a month (LBS status)
Usually LBS working, GPS can be enable when needed (automatically closed after 6 hours)
Strong magnetic force,can be adsorped on iron
Military grade three anti-performance, waterproof to IP67
GPS / LBS dual positioning, support A-GPS
KEELIN WEB platform, mobile APP, SMS remote setting mode, tracking devices
Support EELINK protocol, can be integrated to any platform of the customer's
OTA upgrade firmware.
PS Tracker Operating Principle
There installed Satellite Receiver module and mobile phone module. GPS precise positioning with A-GPS and feedback position to the platform via GPRS at setting times(e. G. Every 30s). It shows the precise position of the device on the map of platform. We need GPRS to transmit data, so the mobile phone with SIM card need the GPRS function.
Platefrom
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, real time tracking and playback on the platform server.
Delivery
Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty
All products have been strictly Quality Checked in house before packing.
All products have been well packed before shipping.
One year warranty is provided for all models. We will bear maintenance cost during warranty.
PRODUCT PARAMETERS
| Voltage | 3.7 VDC |
| Work Current | <30 mA |
| Standby Current | <15 mA |
| GPS Accuracy | 5-15 m |
| LBS Accuracy | About 200 m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold Start | <3s,<15s,<60s |
| Battery Capacity | 7000 mAh |
| Dimensions (mm) | 108.5(L) × 66.5(W) × 22.4(H) |
| Work Temperature | -20ºC~70ºC |
| Work Humidity | 20%~80% RH |
| Net Weight | 180 g |
| IP Level | IP67 |
