| Prod Model: |
RG11 with messenger |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coverage: |
60% or According to The Clients' Request |
| Jacket: |
PE or PVC |
| Messenger: |
Avalable |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Type: |
CATV Coaxial Cable |
| Wire Core Material: |
Bare Copper,Aluninum Wire,Tinned Copper Wire |
| Model: |
Rg59 |
| Brand: |
Libo or OEM |
Product Description
Detailed Product Description

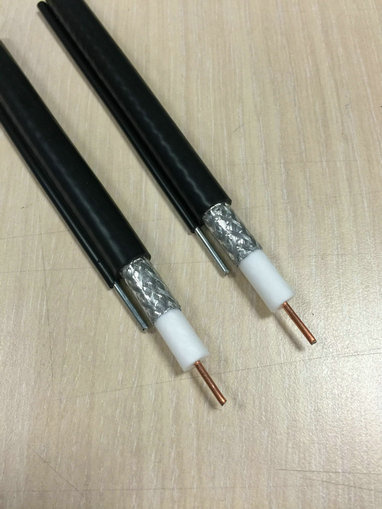

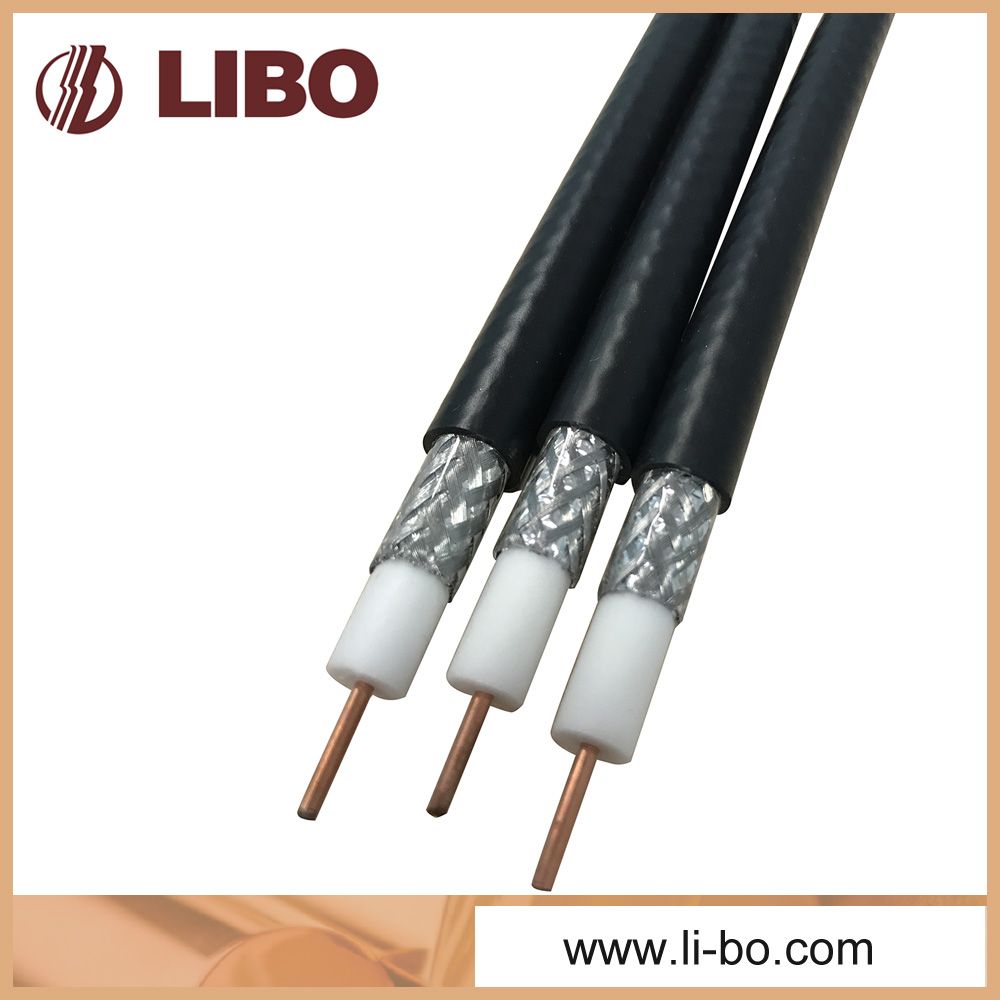

PVC Jacket RG11 Coaxial Cable With Messenger 75 Ohm RG11 CATV Coaxial Cable With 60% Braiding coverage
Product description:
Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 62% braid, PVC jacket.
Center conductor:
14 AWG copper clad steel
Nominal diameter: 0.064 inches (1.63mm)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.280 inches (7.11mm)
Shield:
1st shield: laminated aluminum tape bonded to the dielectric.
Nominal diameter over tape: 0.287inches (7.29mm)
2nd shield: 0.16mm aluminum braiding wire, 62% coverage.
PVC Jacket:
Nominal diameter over jacket: 0.40inches 10.16mm)
Nominal jacket thickness: 0.042inches (1.07mm)
Electrical properties:
Impedance: 75±3 ohms
Velocity of propagation: 85% nominal
Attenuation@ 68OF(20oC):
@Frequency MHZ | dB/100ft. (MAX.) | dB/100 meters(MAX.) |
5MHZ | 0.38 | 1.25 |
55MHZ | 0.96 | 3.15 |
83MHZ | 1.18 | 3.87 |
187MHZ | 1.75 | 5.74 |
211MHZ | 1.90 | 6.23 |
250MHZ | 2.05 | 6.72 |
300MHZ | 2.25 | 7.38 |
350MHZ | 2.42 | 7.94 |
400MHZ | 2.60 | 8.53 |
450MHZ | 2.75 | 9.02 |
500MHZ | 2.90 | 9.51 |
550MHZ | 3.04 | 9.97 |
600MHZ | 3.18 | 10.43 |
750MHZ | 3.65 | 11.97 |
865MHZ | 3.98 | 13.05 |
1000MHZ | 4.35 | 14.27 |
Applications:
RG11 cable is for CATV (community antenna television), and MATV (master antenna television) distribution.
Competitive Advantage:
- Outstanding anti-interference effectiveness and excellent transmission reliabilities.
- Low cost and it is easy to install.
- Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
- Libo cable has a stable workforce and engineering team, production procedures and testing meet with ISO9000 and ISO14000 standard.
