Cps Control and Protection Switching Device Scps 125A 45A
| Price: |
US $ 1-25/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
CPS Control and Protection Switching Device SCPS 1 |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
2 |
| Certification: |
CCC |
Product Description

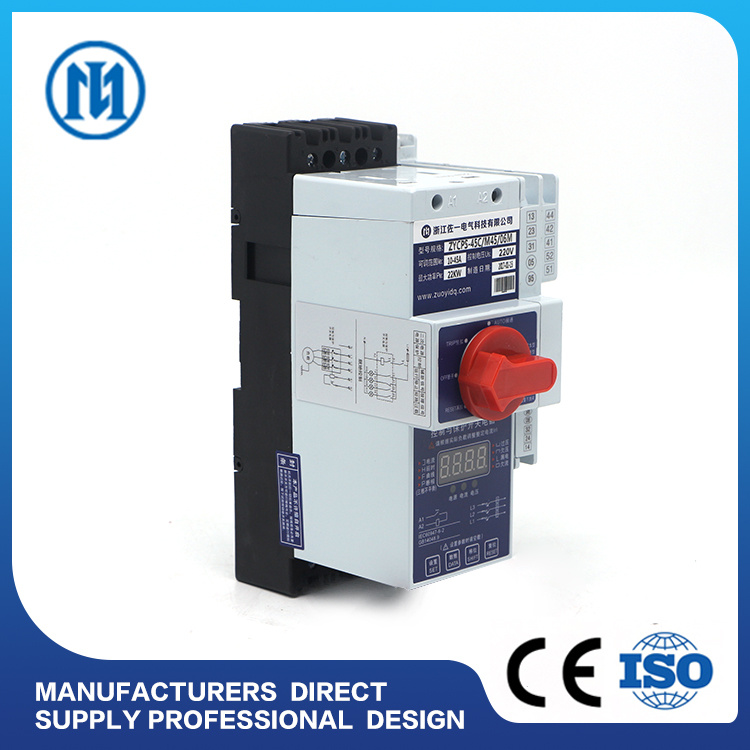

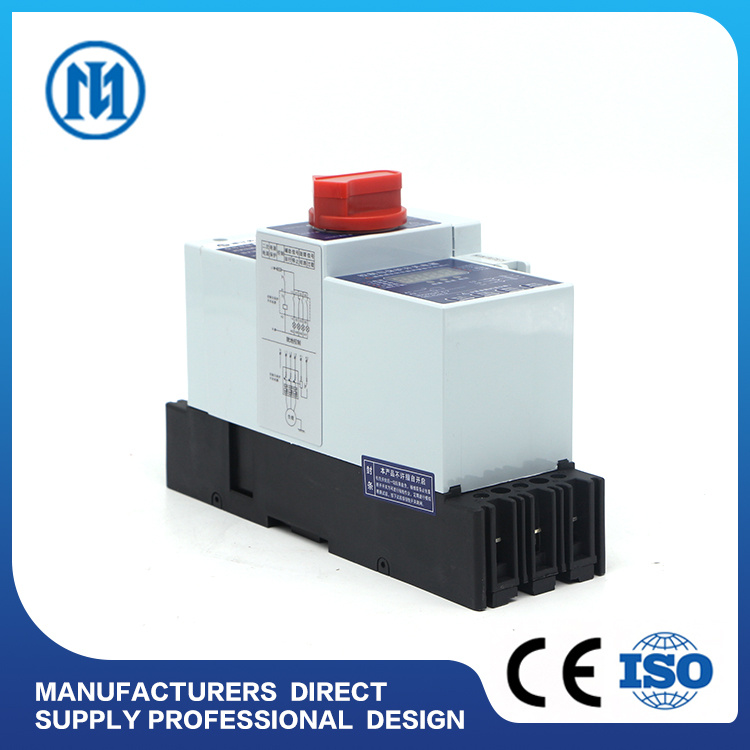

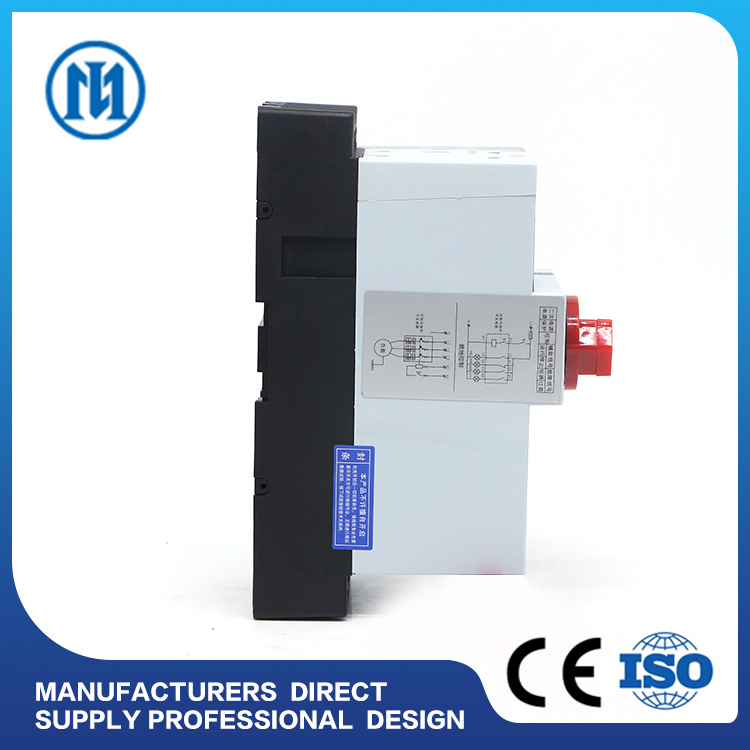

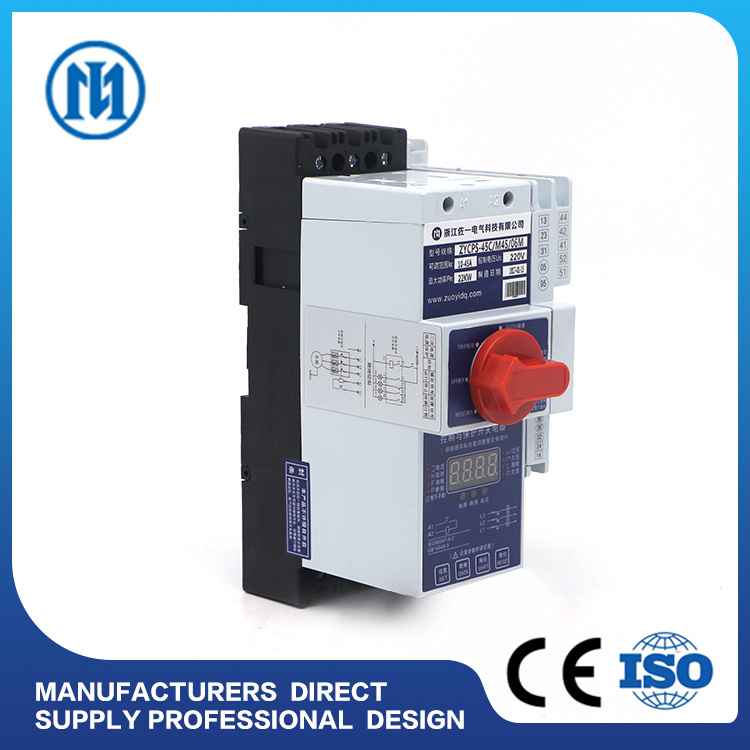

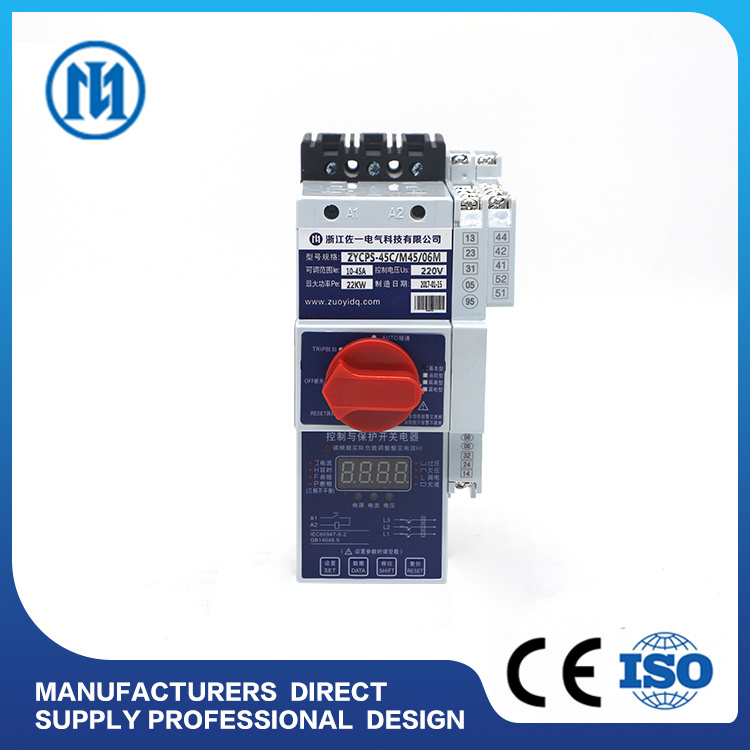

control & protection switch is mainly applied in the circuits, AC 50/60Hz, rated working voltage up to 400V, main rated current from 6.3A to 125A. Smart controller can adjust working current from 0.4A to 125A, control electrical systems with motor power from 0.05kW to 55kW switch on/off & load.
Normal current or voltage(including prescriptive overload states), it can be connected & loading for a while, and break current or voltage of precriptive unnormal situations(short-circuit,undervoltageec ect).
Widely used:
1, metallurgy, coal, steel, petrochemicals, ports, ships, railways and other areas of motor control and protection system.
2, modern building lighting, power conversion, pumps, fans, air conditioning, fire and other electrical control and protection systems.
3, motor control center (MCC), especially the intelligent electronic control system or require a high breaking capacity of the MCC (or as required ICU Ics of To 50kA or 80kA ower distribution control and protection system).
4, factory or plant stand-alone control and protection (equivalent to power terminal).
Specification
Main circuit parameters | Inm | In(A) | Ith(A) | Ui(V) | | Rated frequency | Ue(V) |
| 45 A | 12,16,18,32,45 | 45 | 690 | | 50Hz | 380/690 |
