| Prod Model: |
SS31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation Force: |
500± 200 Gf |
| Endurance: |
10, 000 Cycles |
| Rating: |
16A 125/250VAC 3/4HP |
| Withstand Voltage: |
1000VAC for 1 Minute |
| Usage: |
Toys |
| Standard: |
Standard |
| Lamp: |
With Lamp |
| Color: |
Black |
| Certification: |
Nemko,CQC,UL,ENEC |
| Condition: |
New |
Product Description

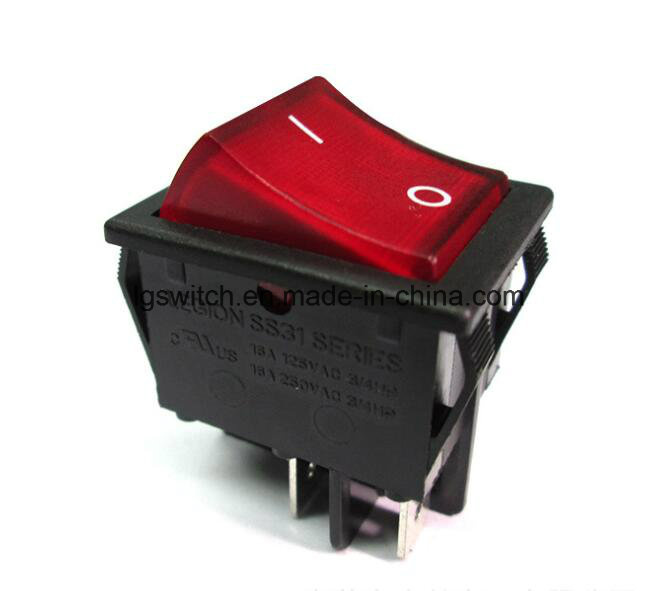

Model number: SS31 ROCKER SWITCH
Min. Order quantity: 200 piece(s)
Price term: FOB
Port: HK or negotiate
Price: Negotiable
Payment terms: L/C, T/T, western union
Production capacity: 500000piece(s) per month
Delivery time: On time packaging
Details:
Packaging
250PCS in a small box with the size 350*215*150mm.
1500PCS in a big carton with the size 450*360*480mm
All the goods will be packed by PVC box.
Power rocker switch used for ATX switching power supply, UPS, test equipment, audio & office equipment etc.

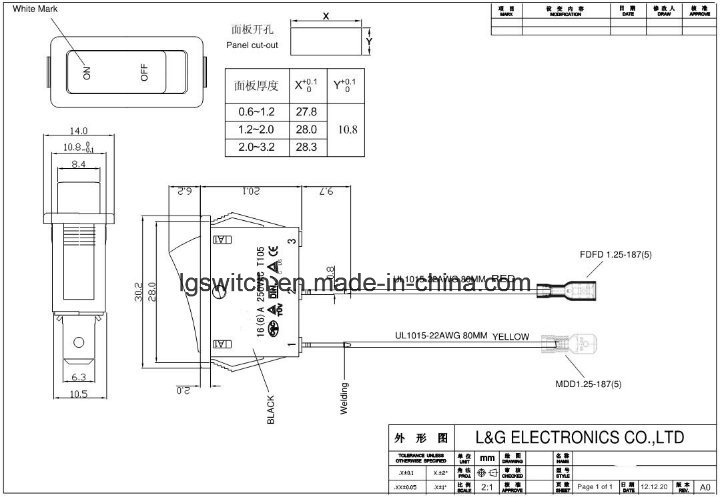

Product attributesplace of origin: Guangdong China (mainland)brand name: Legionmodel number: Ss31max. Current: 16amax. Voltage: 250vmechanical life: 10000certificates: UL, CSA, VDE, enecpanal size: 33*22mmrohs: Withdetailed descriptionpower rocker switch specifications & features:| Rating | |
| Initial contact resistance | 20mohm max. |
| Insulation resistance: | 100mω Min. 500VDC |
| Withstand voltage: | 1000VAC for 1 minute |
| Operation force: | 500± 200 gf |
| Endurance: | 10, 000 cycles |
| Terminal base/Actuator | Nylon 66(UL 94V0) |
| Spring: | Stainless steel wire |
| Contact: | Copper pickling |
| Terminal: | Brass/silver plated |
Product Description
Details:
Packaging
250PCS in a small box with the size 350*215*150mm.
1500PCS in a big carton with the size 450*360*480mm
All the goods will be packed by PVC box.
Power rocker switch used for ATX switching power supply, UPS, test equipment, audio & office equipment etc.
Product attributesplace of origin: Guangdong China (mainland)brand name: Legionmodel number: Ss31max. Current: 16amax. Voltage: 250vmechanical life: 10000certificates: UL, CSA, VDE, enecpanal size: 33*22mmrohs: Withdetailed descriptionpower rocker switch specifications & features:
Rating: 16A 125/250VAC(cUL); 16A 125/250VAC(cUL); 16(4)a 250V-t85/55(VDE, enec10)
Initial contact resistance: 20m ohm max.
Insulation resistance: 100mω Min. 500VDC
Withstand voltage: 1000VAC for 1 minute
Operation force: 500± 200 gf
Endurance: 10, 000 cycles

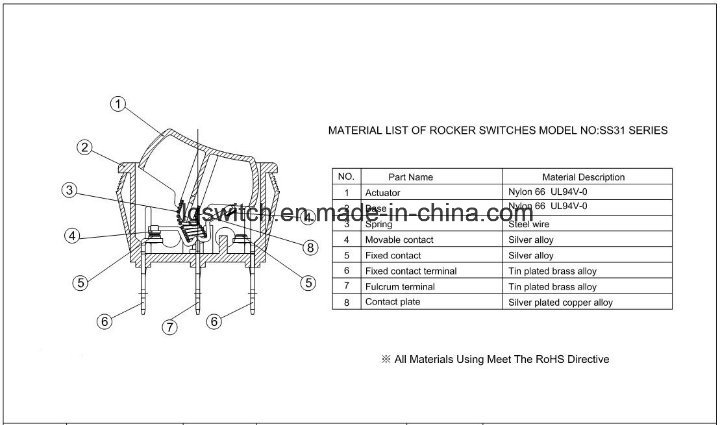

Material:
Terminal base: Nylon 66(UL 94V0)
Actuator: Nylon 66(UL 94V-0)
Spring: Stainless steel wire
Contact: Copper pickling
Terminal: Brass/silver plated
Sample:
1. Free charge sample: Could provide(less than 10 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
|
