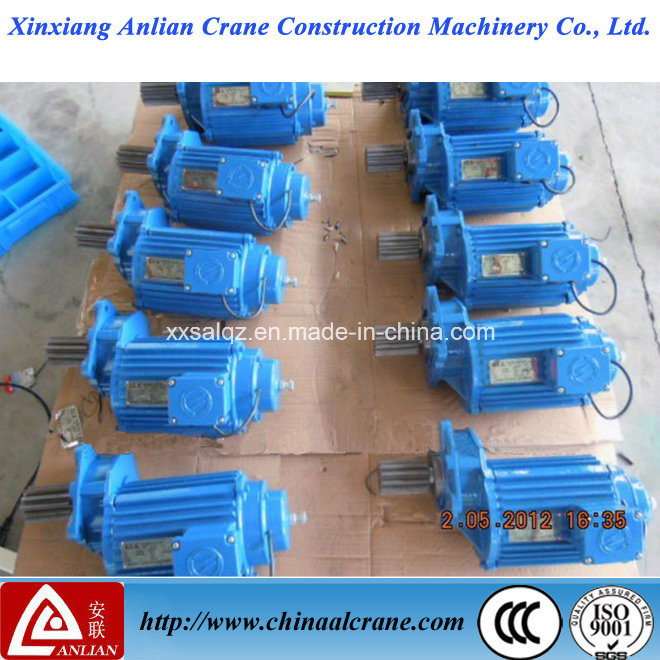

Crane Beam Running Motor with Gear Reducer Device

Prod Model:	PZ
Color:	Green/Blue
Warranty:	12 Months
Number Of Stator:	Three-Phase
Brand:	Anlian
Function:	Multi-Function
Certification:	Ce

Product Description

The multi-function crane beam travelling motor
Product despriction

This type crane beam travelling motor is a new type travelling motor with the speed reducer.

The gear box is made of high stress cast iron (FC25),and manufacture by computer numerical
central machinery(CNC LATHE& CNC machining center). The gears is made of Ni-Cr-Mo alloy steel
(SNCM220 & SCM415) with carburization process. The shaft is manufacture by alignment and
grinding. So the accuracy is very good. The stress is very strong. The safety factor is more than 5.
The product-life is very long.
When soft starting, and after fly wheel acting, the movement of high inertia is produced .
No imperfectness, this keeps crane stable, smooth, and noiseless, to stabilize the brake .
High performance of start torque, motor body is simple for radiation, high-pressure resisting more
than "1500V, light current,Compact - sized, powerful output, available for high frequency.
With direct - type electromagnet brake, control can be adjustable with screw, high abrasion brake
leather, long service life, safety, and never be falling off.



Technical parameters

Weight:47kg - 53kg        size:40cm

MODEL	Kw(HP)	P	VOLTAGE	SPEED RATID	RPM		OUTPUT SHAFT
					50HZ	60HZ
PZ-200	1.5Kw(2HP)	4	200V | 600V	10:1	145	174	M 3.5 M 4 M 5
	1.1Kw(1.5HP)	6			95	115
	0.75/0.37Kw	4/8			145/72	174/87
	0.75/0.25Kw	4/12			145/47	174/57


Weight:82kg       size:53cm

PZ-300	2.2Kw(3HP)	4	200V | 600V	10:1	145	174	M 3.5 M 4 M 5
	1.5Kw(2HP)	6			95	115
	1.5/0.75Kw	4/8			145/72	174/87
	1.5/0.5Kw	4/12			145/47	174/57



MODEL	KW(HP)	P	VOLTAGE	SPEED RATIO	RPM
					50HZ	60HZ
PZA-750	5.5KW(7.5HP)	4	220V | 600V	18.5:1	80	95	50x100
	3.75KW(5HP)	6			53	63
	3/1.5 KW	4/8			80/40	95/47
	3/1 KW	4/12			80/26	95/31
PZB-750	5.5KW(7.5HP)	4		15.3:1	93	112
	3.75KW(5HP)	6			61	75
	3/1.5 KW	4/8			93/46	112/56
	3/1 KW	4/12			93/30	112/37
PZH-750	5.5KW(7.5HP)	4		12:1	123	148
	3.75KW(5HP)	6			82	98
	3/1.5 KW	4/8			123/61	148/74
	3/1 KW	4/12			123/41	148/49
PZK-750	5.5KW(7.5HP)	4		10:1	143	172
	3.75KW(5HP)	6			94	116
	3/1.5 KW	4/8			143/71	172/86
	3/1 KW	4/12			143/47	172/58
PZA-1000	7.5KW(10HP)	4		18.5:1	80	95	42x48-100
	5.5KW(7.5HP)	6			53	63
	3.75/1.87 KW	4/8			80/40	95/47
	3.75/1.25 KW	4/12			80/26	95/31
PZB-1000	7.5KW(10HP)	4		15.3:1	93	112
	5.5KW(7.5HP)	6			61	75
	3.75/1.87 KW	4/8			93/46	112/56
	3.75/1.25 KW	4/12			93/30	112/37
PZH-1000	7.5KW(10HP)	4		12:1	123	148
	5.5KW(7.5HP)	6			82	98
	3.75/1.87 KW	4/8			123/61	148/74
	3.75/1.25 KW	4/12			123/41	148/49
PZK-1000	7.5KW(10HP)	4		10:1	143	172
	5.5KW(7.5HP)	6			94	116
	3.75/1.87 KW	4/8			143/71	172/86
	3.75/1.25 KW	4/12			143/47	172/58
