| Prod Model: |
YK |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Rubber |
| Battery Type: |
AAA Battery |
| Application: |
Used in Cranes Hoists and Lifting Machines |
| Voltage: |
AC 380V/ 36V/220V or DC12V/24V |
Product Description

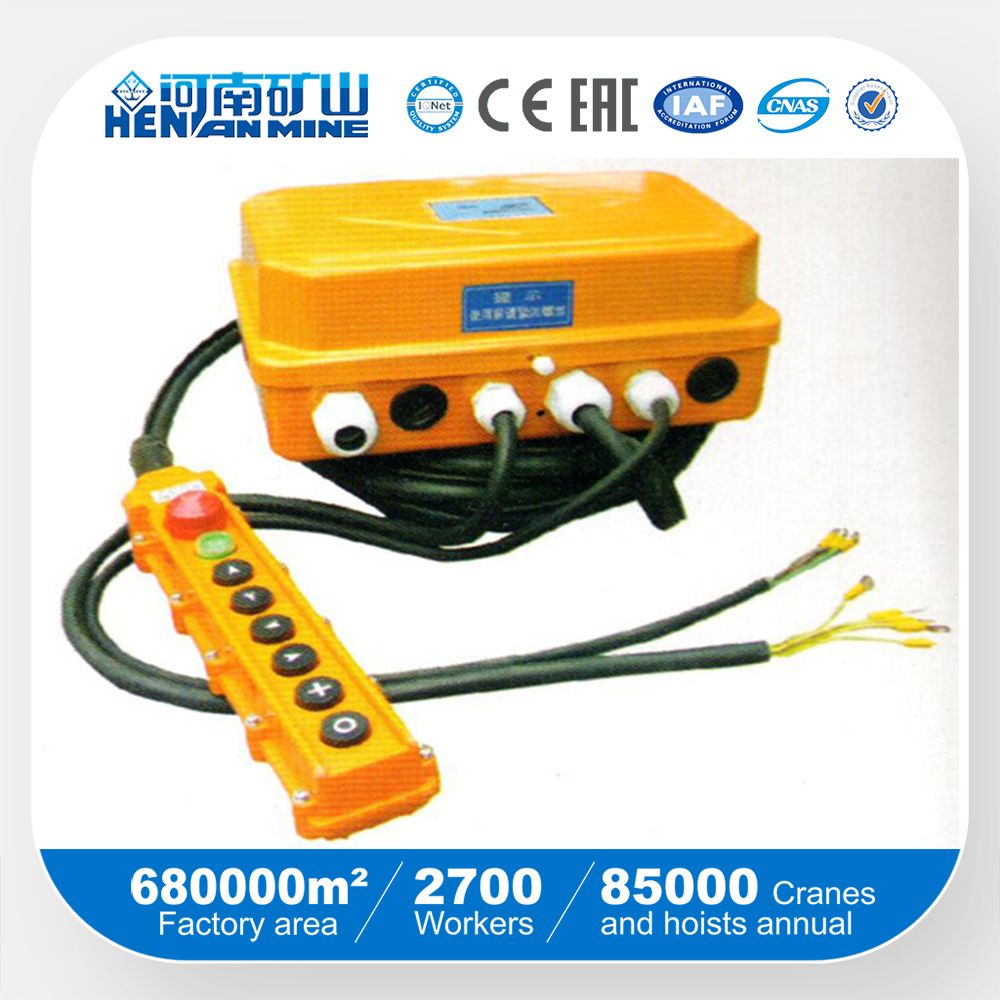

Radio remote control for sale
Specifications:
Structure: Glass-Fiber
Enclosure protection class: IP 65
Temperature range: -40ºC~ +85ºC
Control distance: Up to 100 meters
Receiver power: 110/ 220V/380V/VAC, or 12/24/36/48 VDC.
Output contact capacity:5A sealed relay output (AC 250V/10A relays, 5A fuse contacts).
Product features
8 operation buttons, 7 single-speed buttons and one "STOP"
8 control contactors With battery voltage warning device, the power is cut off during low power
Safety key switch to prevent from unauthorized user
Set the internal functions by computer interface
Up/down, east/west, north/south can be set as to mutual inhibition or not
Spare key can be set to start, acceleration, toggle switch, general or other function
Standard Configuration
One transmitter
One receiver with 1 meter cable
Receiver with 1 meter cable
Operation and maintain manual
Safety feature
Each radio remote control system functions in all manner of operational conditions
equipped withtheir own unique identity code(ID-code).This means that only the correct
control unit can activateand control its matching receiver (crane/machine) for maximum safety.
Product Uses
Single-hook, Mobile crane, Lorry-mounted crane, Electric hoist, Concrete pump
truck, Loader, Building rotary tower crane, Hydraulic machinery, Hydraulic
lift/crane,shear fork lifter, gantry crane, overhead crane, Lifting equipment....
Parameters
Wireless crane remote control industrial radio Telecrane remote contol F21-E1B
| Receiver: F21-RXC |
| Applications | Doors, entrance, gates, winches, pumps, crushers, lighting, conveyor belts, hydraulics etc |
| Working frequency | 315 MHz |
| High-frequency channels | 64 |
| Unique codes | 4.3 billions |
| Power supply | 110/ 220V/380V/VAC, or 12/24/36/48 VDC. |
| Power consumption | 20~400m A |
| Protection | IP65 |
| Temperature | -40ºC ~ 85ºC |
| Control distance | Approx. 100M |
| Recommended transmitter | F21 series transmitters |
