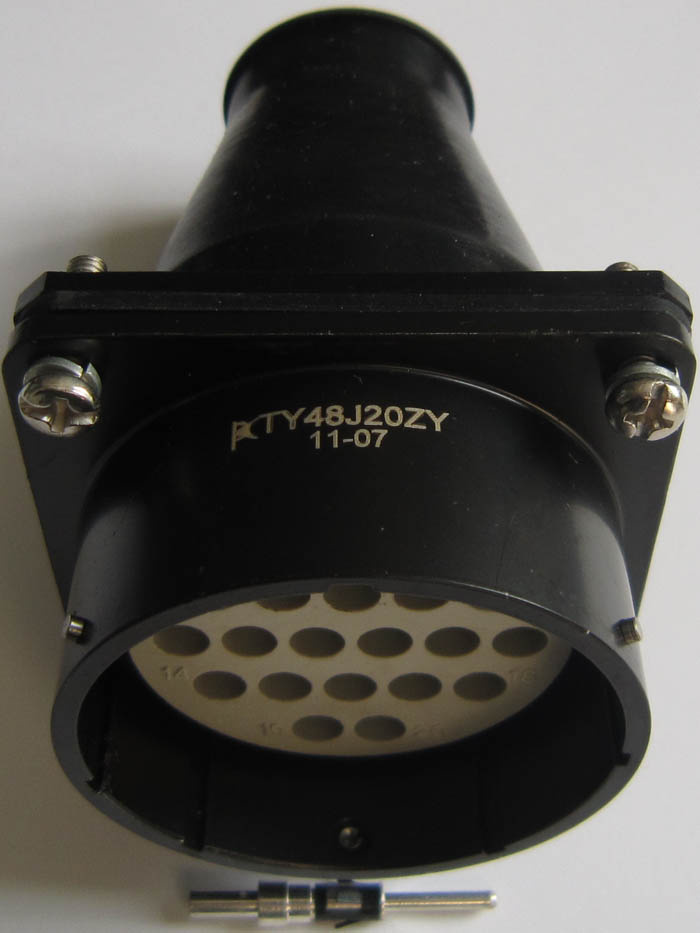

Crimp Connectors (TY48J20ZY)

Name: Crimp Connectors (TY48J20ZY)
Brand: all-electronics-online.com
SKU: 691944155
Availability: InStock
Rating: 4.4 (60 reviews)

Price:	US $ 9-12/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TY48J20ZY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Ty48-20
Item1:	Ty48j20zy
Contaccts Number:	20 PCS
Contacts Size:	2 mm Contacts

Product Description

TY48 series circular connectors use the high reliable hyperboloid socket as the contacts. This connector has the features of low contact resistance, soft force of mating and unmating, anti-vibration, shock-proof, high reliability, etc. The main technical characteristics is in accordance with Ministry of Railway standard TB/T2761. The type of connection between socket and plug is bayonet coupling. This product is widely used for the connection between electrical and electronic equipments for the railway, electricity, etc. Both plug and receptacle may be mounted with pins or sockets.

Product Ordering
TY48 J 20 Z Y
1 2 3 4 5
1. Name of series: TY48
2. J_Pin, K_Socket
3. Number of contacts: 4, 20, 26, 31, 37
4. T_Plug, Z_Receptacle
5. Y_Crimp

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
