| Prod Model: |
RHT-610 |
| Brand Name: |
Renhotec |
| Place Of Origin: |
Guangdong.China |
| Model Number: |
Renhotec-610 |
| Connector Type: |
BNC Connector |
| Gender: |
Female or Male |
| Color: |
Nickel Plating |
| Material: |
Brass |
| Orientation: |
Straight or Right Angle |
| Insulator: |
PTFE |
| Impedence: |
50ohm/75ohm |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Clamping Type |
Product Description

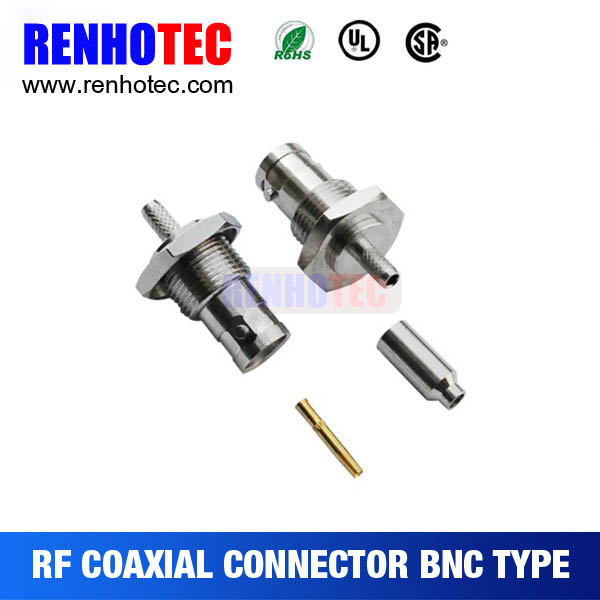

Crimp Type BNC Male and Female Connector for Cable RG59
The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.
| Major Technical Characteristics |
| Temperature Range | -5 degree to +155 degree
(PE cable -40 degree to +85 degree ) |
| Impendance | 50ohm, 75ohm |
| Frenquency Range | DC-4GHZ |
| Working Voltage | 500V r.m.s at sea level |
| Workstandinging Voltage | 1500V r.m.s at sea level |
| Center Contact Resistance | ≤1.5Mohm |
| Outer Contact Resistance | ≤1Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.57N |
| Insertion Loss | ≤0.20dB/3GHz |
| Voltagge Standing Wave Ratio : |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass.........................Nickel |
| Insulator | Delrin.........................Natural |
| Contact Pin | Brass.........................Gold |
| Ferrule | Copper......................Nickel |
| Suitable cables |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |
BNC Connector Application:
AntennasAutomotiveBase Stations
Broadcast(75Ω )Cable AssembliesCable Modems
ComponentsComputers/LANsInstrumentation
OscilloscopesMedical EquipmentMil-Aero
RadiosSatcomSurge Protection
Telecom
BNC Connector Features and Benefits:
Bayonet coupling mechanism provides quick mating and unmating
50 Ω And 75 Ω Impedance designs allow customers to match impedance to system requirements
50 Ω And 75 Ω Connectors are intermateable to ensure non-destructive mating
Three grades of connectors are available for military, industrial and commercial applications
