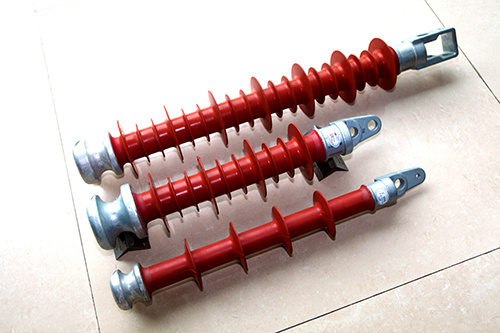

Cross Arm Composite Insulator

Cross Arm Composite Insulator
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T
Application: High-voltage
Material: Composite Polymer
Structure: Post Insulator
Type: Pin Post
Connection Method: Cap-T
Size Of Bearing Capacity: 2.5kn-5.0kn
Color: Grey and Red
Brand: Mpc

Product Description

Main Size and Specification
No.Insulator ModelFigure No.Nominal voltage
kV
Rated bending failing load
kN
Center distance between trunking and mounting hole mmArc distance
mm
Creepage distance mmLightening full-wave impulse withstanding voltage
kV(peak value)


Power frequency wet withstanding voltage kV(effective value)
Size of trunkingRInstallation sizeSlist hole diameterd
±0.5
Center distance betweeb installation hole and slist hole
a±1
Hole diameter d1
±0.5
Height
h≤H
1FS-10/2.51102.5400315500165651118176.540
2FS-10/52105.0410320500165651422581140
3FS-35/53355.062052012002901301422581140
4FS-110/541105.01150103032005803301422661140

Guangzhou Maclean Power Co., Ltd. Was established under the joint venture between Guangzhou MPC International Power Co., Ltd (established in 1997). And American Maclean Power Systems on October 30, 2003. Integrating the advantages of the two enterprises and by virtue of the technologies of international level, Guangzhou Maclean Power Co., Ltd. Has developed many electric composite insulators of different voltage levels and mechanical strength grades as well as various composite insulators used for electrified railways contact networks.

In March 2017, Guangzhou MPC purchased whole MPS share portion, Guangzhou MacLean Power Co., Ltd. Became a 100% private company.

On the basis of constant innovation. Guangzhou Maclean Power Co., Ltd. is one of the most powerful composite insulator manufacturers in the world.

Situated in Conghua, the backyard garden of thriving Guangzhou City, this company enjoys an access to convenient transportation and graceful environment, boasting garden-style factories and new and modern steel-constructed workshops. As a financially powerful comprehensive Sino-US Joint venture, it covers an area of more than 90, 000 square meters with a building area of 35, 000 square meters.

There are 42 full-automatic injection molding machines and 9 crimping machines including 8000kN ones imported from Germany. 9 test labs subordinate to testing center, of which the high-voltage test room is equipped with 1000kV power frequency test transformer and complete-set 1800kV steep front impulse voltage test equipment; The mechanical test room is equipped with a 3000kN tension tester at the most. In addition, there are complete incoming inspection and process testing measures for various materials such as rubber materials, core rods, hardware fittings and chemical raw materials.

The specifications and models of our products are very wide: The rated AC voltage of electric insulator ranges from 10kV to 1, 000kV; The DC voltage of electric insulator ranges from ± 400kV to ± 1100kV; And the mechanic load ranges from 70kN to 1000kN. As for the railway insulator, we not only manufacture 54 kinds of products with standard specifications and modes according to railway standard TB/T 3199.2 but also provide non-standard products according to customers' requirements. All electric composite insulators we manufactured have passed the product certification of China Electricity Council; While the railway insulators we manufactured have passed the joint certification of Guangdong Machinery Bureau, Guangdong Economic and Trade Commission, and Guangdong Department of Railway.

In 2003, ISO 9001-2000 Approved by Intertek;

In 2009, ISO 9001-2008 Approved by Intertek;

In 2012, CRCC Approved;

In 2013, ISO 14001 2014 approved

Quality Policy:

Gather the World's Advanced Technologies to Develop High-Quality Electric Products and Create the MPC International Brand.

Enterprise Spirit:

Make Improvements Every Moment.
