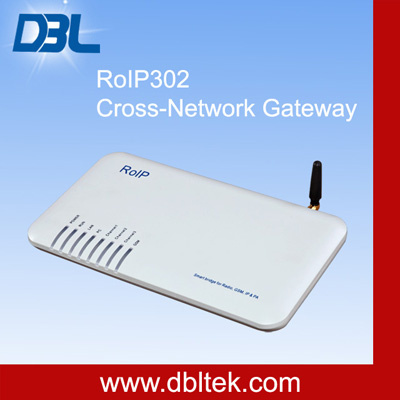

Cross Network Gateway (RoIP-302)

Name: Cross Network Gateway (RoIP-302)
Brand: all-electronics-online.com
SKU: 697943075
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	US $ 603.08/Piece
Trade Terms:	FOB
Min Order:	1Unit
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ROIP-302
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Support:	SIP and H. 323
Power:	12 Vdc 2A (AC/DC Adapter Included)
G. W:	0.86kg
Warranty:	One Year
Type1:	Wireless
Usage:	Telephone
Support Network:	Switch
Type:	Wireless

Product Description

Cross Network Gateway(RoIP-302)

Overview
The fundamental of RoIP(Radio over IP)technology is to convert the audio and PTT signals in a radio terminal into IP packets and then transmit the data via the IP networks. The challenge in this technology is to insure that the audio is transmitted in real time and the PPT control signal is transmitted immediately and reliably. The radio range is general limited by the restricted transmitting power, the antenna sensitivity, and other environmental factors.

Key Features
Open Standard VoIP Protocols (IETF SIP V2)
Two 10/100 Ethernet for WAN / LAN connections
Supply dynamic DNS service
Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
Line Echo Cancellation
VLAN and QoS support
NAT Transversal and Router functions
Support IP voice stream to via a recording server
Highly stable embedded Linux operating system in high performance ARM 9 Processor

Basic Features
Two RJ-11 FXS port for traditional phone set or PBX's trunk line
Support three PTT port
LEDs for Power, Ready, Status, WAN, PC, FXS
Call Forward, Call Hold, Call Transfer
Dial Plan
Caller ID
Enhanced Features
Dynamic selection of codec
Advanced jitter buffer
Automatic traversal of NAT and firewall
VLAN / Qos

Router
Echo cancellation for Speakerphone
Comfort noise generation (CNG)
Voice activity detection (VAD)
Auto provisioning (requires auto provisioning server)
On line firmware upgrade
Multi-language support: English and Chinese

Supported Standards
ITU: H. 323 V4, H. 225, H. 235, H. 245, H. 450
RFC 1889 - RTP/RTCP
RFC 2327 - SDP
RFC 2833 - RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
RFC 2976 - SIP INFO Method
RFC 3261 - SIP
RFC 3264 - Offer/Answer model with SDP
RFC 3515 - SIP REFER Method
RFC 3842 - A Message Summary and Message Waiting Indicator
RFC 3489 - Simple Traversal of User Datagram Protocol (UDP) Through Network Address Translators (NATs)
RFC 3891 - SIP "Replaces" Header
RFC 3892 - SIP Referred-By Mechanism
Draft-ietf-sipping-CC-transfer-04 - Session Initiation Protocol Call Control - Transfer
Codec: G. 711 (A/µ Law), G. 729A/B, G. 723.1
DTMF: RFC 2833, In-band DTMF, SIP INFO

Cross Network Gateway (RoIP-302)

1. Support H. 323 and SIP

2. Three PTT port

3. Operating temperature: 10° C to 40° C (50° F to 104° F)

DBL Technology Ltd, is a leading manufacturer in developing and manufacturing advanced VoIP products for the worldwide market.DBL has been dedicated in the development of the latest VoIP technology for the last 15 years and has developed a wide range of VoIP Gateway and IP Phone.DBL is committed in offering high quality, innovative, and affordable products.

DBL's VoIP products are fully compatible with the industry H.323 and SIP standards.They have been tested extensively for compatibilities with various VoIP systems.Customers can integrate our products in their systems seamlessly and there are still lots of room for future enhancements.

To meet our customer demand, we have developed a proprietary technology in IP encryption for better security transmission and more reliable operation from VoIP blocking.This technology has been proven in countries where VoIP traffics are blocked by the local ISPs.Our customers are very excited and pleased with our technology in making VoIP possible in their countries.

We have a very flexible marketing and sales strategy in order to meet the requirements from various customers.We welcome you to contact us for further information!
