Cross Roller Plunger Type Elevator Waterproof Limit Switch

Name: Cross Roller Plunger Type Elevator Waterproof Limit Switch
Brand: all-electronics-online.com
SKU: 729104692
Availability: InStock
Rating: 4.6 (97 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TZ-8107

Product Description

Double circuit type of limit switch
Highly rigid construction, consists of intensive plastic and zinccast (Head and cover snugly fit in box)
Small volume, water-proof and oil-proof construction
Built-in basic switch with double spring mechanism, longer mechanical life
Smooth operation with greater OT
Easy-to-wire circuit opening design
Wide variety of actuators, easily use

Product characteristics

Model No.	TZ-8108
Name	Limit switch
Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/minute, Electrical: 30 operations/minute
Contact resistance	25mΩ max.(initial value)
Insulation resistance	100mΩ min.(at 500VDC)
Dielectric strength	1000VAC,50/60HZ for 1 minute between terminals of the same polarity
	1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts
	1500VAC,50/60 HZ for 1 minute between each terminal and ground
Vibration	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable:1000m/Sec²;Malfunction:300m/Sec²(about 30G'S)
Life	Mechanical: 10,000,000 operations above;Electrical: 500,000 operations above
Weight	About 130-190g
Degree of protection	IP65
Payment term	30% deposit in advance,70% before shipment,100% T/T in advance
Certificate	TUV, CCC,CE,ISO9001
Logo	Customized logo with Decal / Frosted / Print are available as request
Design ability	We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

Rating

Rated Voltage

Noninductive Load

(A)

Inductive Load

(A)

Resistance Load

Lamp Load

Inductive Load

Motor Load

125VAC

250VAC

500VAC

1.5

0.7

0.5

1.5

0.8

8VDC

14VDC

30VDC

125VDC

250VDC

0.4

0.2

0.4

0.2

Inrush Current

N.C: below 24A, N.O: below 12A

Pertection degree		IP65
Operating temperature		-20'C~60'C
Operating humidity		≤ 85%

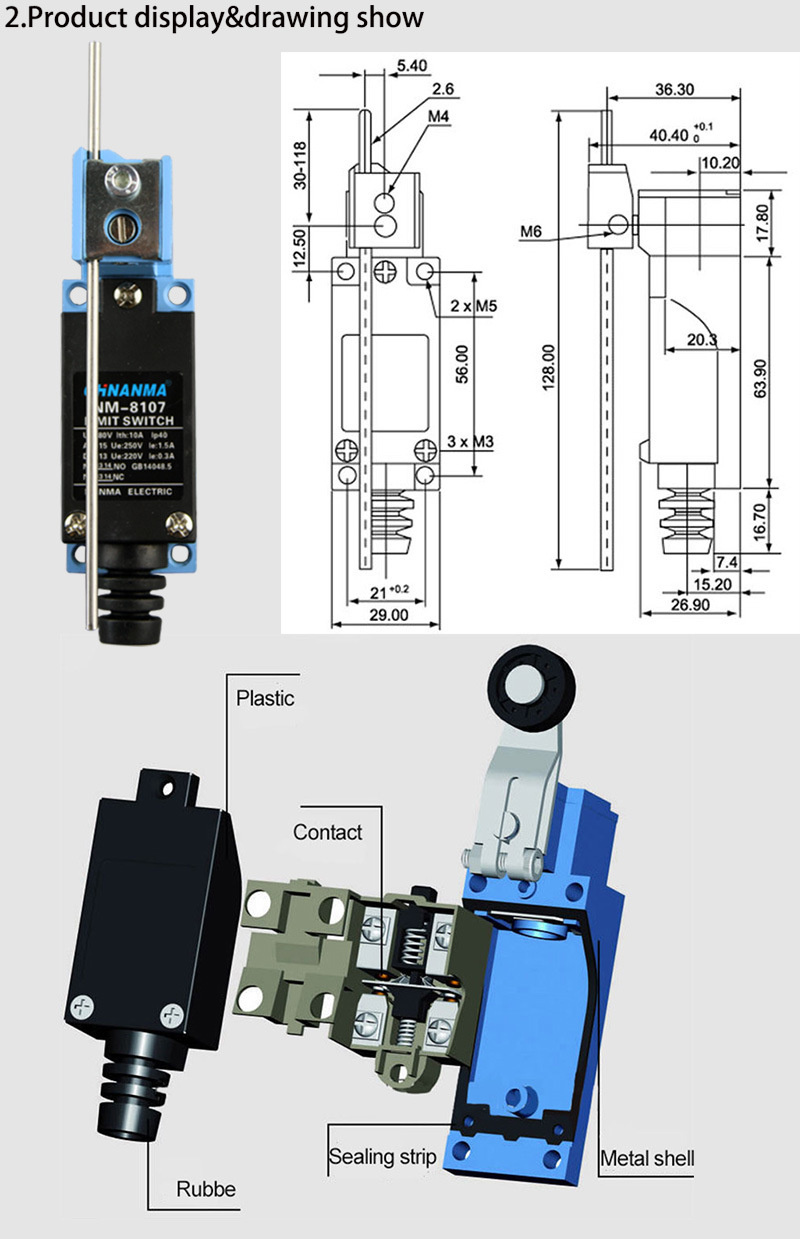

Outline And Installation Dimensions

Rated voltage	Non-inductive load				Inductive load
	Resistive load		lamp load		Inductive load		Moto load
	N.C	N.O	N.C	N.O	N.C	N.O	N.C	N.O
125 VAC	5	5	1.5	0.7	3	3	2	1
250 VAC	5	5	1	0.5	3	3	1.5	0.8
8 VDC	5	5	3	3	5	4	3	3
14 VDC	5	5	3	3	4	4	3	3
30 VDC	5	5	3	3	4	4	3	3
125 VDC	0.4	0.2	-	-	-	-	-	-
250 VDC	0.4	0.24	-	-	-	-	-	-

OF Max	700g(6.68N)
RF Min	60g
PT Max	30°
OT Min	60°
MD Max	15°
TT	90°
