| Prod Model: |

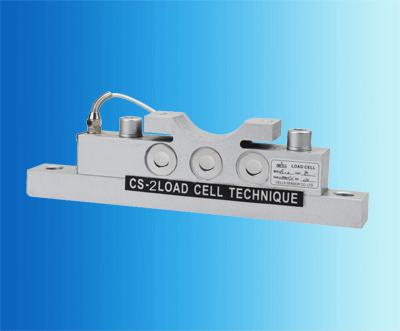

CS-2 TYPE LOAD CELL |
| Sensibility: |
1.5`2.0mv/V |
| Safe Overload: |
130%Fs |
| Fefend Grade: |
IP66 |
Product Description
| Materials: Alloy steel |
| |
| FUNCTION CHARACTERISTICS |
>Special sensors used for transforming the hoist into pendent weigher.
>Fish back load-bearing surface to ensure weighing accuracy in case the axle bends at load or the weigher isn't well levelled.
>Supported at the two ends of the fixing-sliding axle, the pendent electronic weigher fitted with this sensor can achieve an actual accuracy up to 0.1-0.3% Strictly sealed. Stable performance. |
| |
| |
| configuration: |
| Rated load\size(mm) | L1 | L2 | L3 | L4 | L5 | B | H1 | H2 | R H | 2-Φ | 2-M | | 2,3t | 344 | 304 | 133 | 110 | 130 | 40 | 83 | 25 | 29 17 | 17.5 | 10 | | 5,6,8t | 344 | 304 | 133 | 110 | 130 | 40 | 95 | 30 | 41 20 | 17.5 | 10 | | 10t | 344 | 304 | 133 | 110 | 130 | 40 | 110 | 30 | 41 24 | 17.5 | 10 | | 15,20t | 442 | 402 | 184 | 145 | 165 | 46 | 149 | 35 | 56 30 | 21 | 10 | | 25,30,40t | 442 | 402 | 189 | 145 | 165 | 46 | 165 | 35 | 59 30 | 21 | 12 |
R is to be decided to user's requirement |
| |
| Techincal Parameter |
| Sensitivity | 1.5~2.0mv/v | | Non linearity | 0.05%FS | | Hysteresis | 0.05%FS | | Repeatability | ±0.03%FS | | Creep | ±0.05%FS/30min | | Creep recovery | ±0.05%FS/30min | | Zero balance | 2%FS | | Zero temperature coefficient | 0.03~0.05%FS/10ºC | | Rated output temperature coefficient | 0.03~0.05%FS10ºC | | Output resistance | 700Ω | | Insulation resistance | ≥3000MΩ | | Supply Voltage | 5~15V | | Safe temperature range | -30~+60ºC | | Safe overload | 130%FS | | Defend grade | IP66 | | Method of connecting wire | input:Red(+)Yellow(-)
output:Blue(+)White(-) |
|
