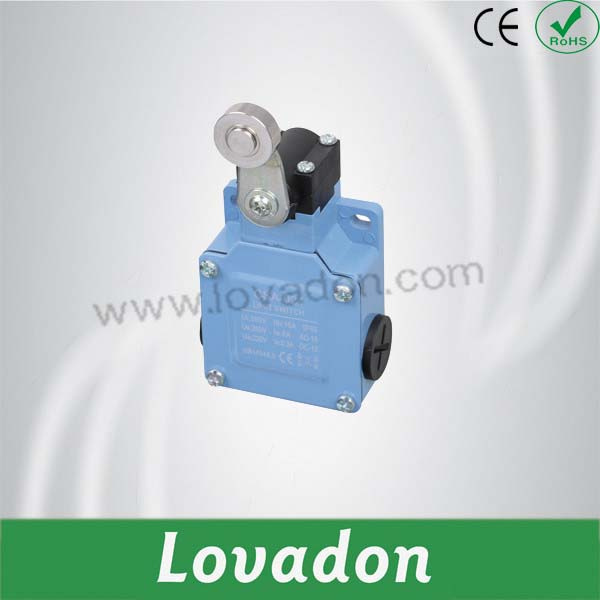

CSA-021 Strong Metal Outer Shel Type Limit Switch

Name: CSA-021 Strong Metal Outer Shel Type Limit Switch
Brand: all-electronics-online.com
SKU: 752747015
Availability: InStock
Rating: 4.9 (132 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CSA-021
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Small-Sized
Breaking Capacity:	General Type
Breaking Form:	Multi Joint Type
Pressing Type:	Idler Wheel, Punch and Spring
Protection:	Water-Proof and Oil-Proof Constructi
Application:	Widely Used
Brand:	Lovadon

Product Description

CSA Series Limit Switch
* Strong metal outer shell , swing arm max.+-95 degree.
* Stainless steel idler wheel, punch and spring.
* Selective M18*1.5 cable gland.

Model	Operating force	Release force	Pre-travel	Tripping position	Movement differential	Over travel	Total travel	Rotary indexing
CSA	OF(Max.)	RF(Min.)	PT(Max.)	TP+-10%	MD(Max.)	OT(Min.)	TT(Min.)
CSA-001	700g	200g	1.8mm	2.0mm	1.2mm	4.0mm	5.8mm
CSA-003	700g	200g	1.8mm	2.0mm	1.2mm	4.0mm	5.8mm
CSA-012	500g	100g-cm	20°	22.5°	10°	75°	95°
CSA-021	400g-cm	100g-cm	20°	22.5°	10°	75°	95°	22.5°
CSA-041	400g-cm	100g-cm	20°	22.5°	10°	75°	95°	22.5°
CSA-031	400g-cm	100g-cm	20°	22.5°	10°	75°	95°	22.5°
CSA-051	400g-cm	100g-cm	20°	22.5°	10°	75°	95°	22.5°
CSA-061	150g	50g	30mm	22.5°	14°	20mm	50mm
CSA-071	150g	50g	30mm	22.5°	14°	20mm	50mm
CSA-081	150g	50g	30mm	22.5°	14°	20mm	50mm

Characteristicw/Application
Double Break Mechanism	INO-INC Force Break snap action
Contact Resistance	25mΩ Max.(initial value)
Insultation Resistance	100mΩ Min.(at500VDC)
Dielectric Strength	1000VAC,50/60 Hz for 1 minute between terminals of the same polarity
	1500VAC,50/60 Hz for 1 minute between current -carrying and non-current-carrying metal parts
	1500VAC,50/60 Hz for 1 minute between each terminal and ground
Electrical Life	500,000 at 10A 250VAC Resistive
Mechanical Life	10,000,000 operations min.(under rated conditions)
Operating Speed	5mm/s to 0.5m/s
Degree of Protection	IP66
Ambient Temperature Rised	Max.30°C over ambient temperature at rated voltage/current
Conformed Standards	Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660
Operating Temperature	-5°C~+65°C (with no icing)
Storage Temperature	-5°C~+65°C (with no icing)
Ambient Operating Humdity	95% RH Max.
Shock Resistance	Mechanical durable:1000m/s^2 min.
Shock Resistance	Malfunction:300m/s^2 min.
Vibration Frequency	Malfunction: 10 to 55Hz,1.5mm double amplitude
Terminal Screw Torsional Force	6-8 kgf-cm
Other Screw Torsional Force	Cover 12-14 kgf-cm/ Head 8-9 kgf-cm/ Mounting 50-60 kgf/cm
Bare Wire Diameter	Diameter 2 Max.
Cable Diameter	Diameter 12 Max.(IP 65 if use cable Diameter 8-9)
Note: Product with spring.Its usable range of operating part is within one third of the whole spring length from the front end of spring.
