| Prod Model: |
power battery |
| Voltage: |
12V Power Battery |
| Capacity: |
120ah Solar Battery |
| Size: |
L*W*H*Th=405*173*210*230mm |
| Weight: |
33.5kgs Solar Power Battery |
| Expected Cycle Time: |
10-12 Years Deep Cycle Battery |
| Warranty: |
3 Years Deep Cycle AGM Battery |
| Maximum Capacity: |
300ah AGM Battery |
| Delivery Time: |
15 Days Lead Acid Battery |
| Brand: |
Cspower/OEM |
| Export Markets: |
Global |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Solar Battery / Power Battery |
Product Description

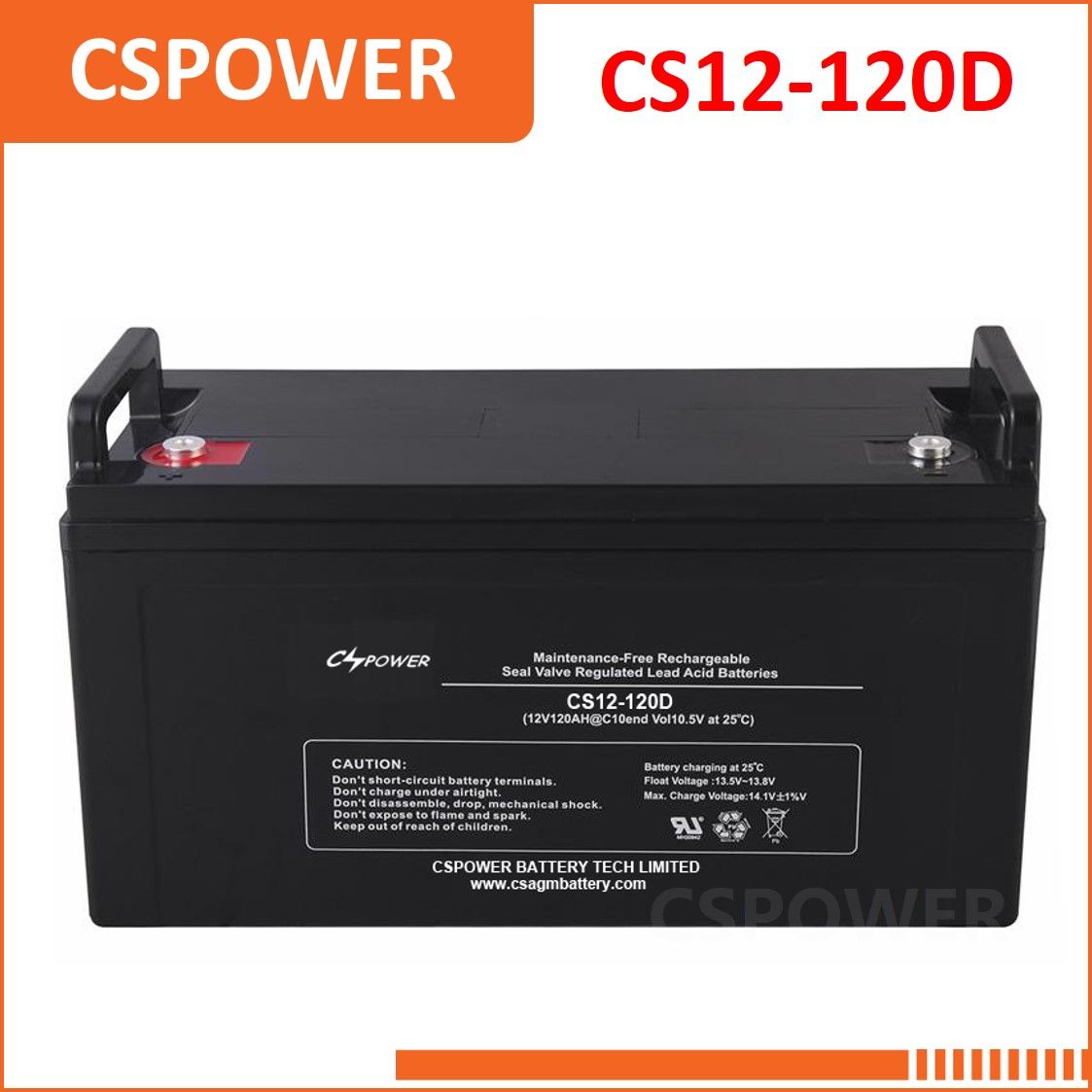

CSPOWER Deep Cycle AGM Battery Solar Power Battery 12V120Ah
Characteristics
Model: CS12-120D (12V120AH/10HR)
Dimension: L*W*H*Th=405*173*210*230mm, weight: 33.5KG
Warranty: 3 years, Life span: 10-12 years
Packing Qty: 1 PCS/CTN, appro. 600 PCS/ 20 ft Container
Lead-time: 15-20 days for one 20' container
FOB Port: Guangzhou/Shenzhen/Hongkong
Payment Terms: T/T, Western Union, Money Gram
Product Certificate: CE, ISO, IEC
OEM acceptable
Use and maintenance
(1) Please use constant-voltage charge.
(2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
(3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
(4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
(5) Please do not use it near the heat source and open flame.
(6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Advantage
1) Sealed/Maintenance-Free
2) Long Shelf Life
3) Deep Discharge Recovery
4) Low Pressure Valve Regulators
5) High Discharge Rate
6) Wide Operating Temperature Range
7) Rugged Construction
8) Long Service Life
Main Application

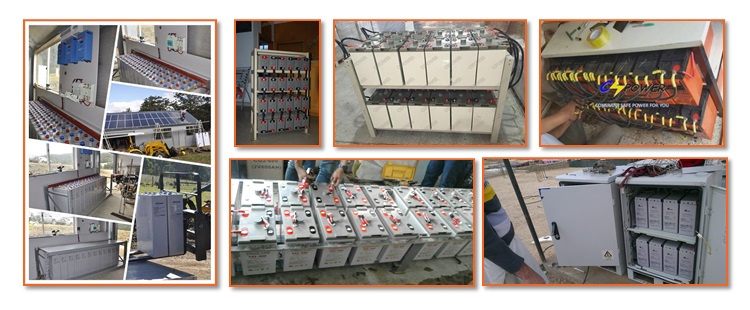

UPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.
Our office is in Shenzhen, factories located in Dongguan and Shaoguan China.
We have obtained CE, ISO, IEC certificates and SGS test report for battery.
The main products of CSPOWER is 2V/6V/12V AGM sealed free maintenance lead acid battery, Solar deep cycle battery, Solar GEL battery upto 2V3000Ah, 6V300Ah, 12V300Ah, total over 400models, mainly used for solar power, wind power, ups system, inverter system, telecom, golf cart, electric vehicles and so on.

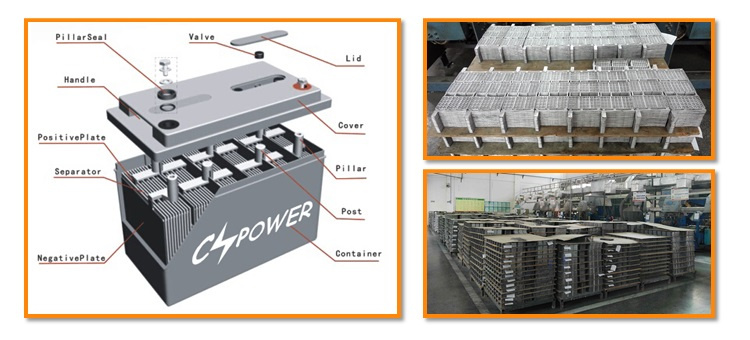

Hope you can give me one minute to explain OUR BATTERY MATERIAL ADVANTAGES:
1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof.
2) 99.99% pure new lead NEVER use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
7) Vent Valve: Allows the release of the excess gas automatically for safety.
8) Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life.
| CSPOWER Deep Cycle AGM Battery Solar Power Battery 12V120Ah |
Nominal Voltage |
12V Power Battery |
Rated Capacity (10 hour rate) |
120AH |
Dimensions
(Length*Width*Height*Total Height )/mm |
L*W*H*TH=405*173*210*230mm |
Weight Approx | 33.5kgs AGM Battery / Solar Battery |
|
Inverter Battery CHARACTERIESTICS |
Capacity
25 °C | 10 Hour rate | 120AH |
| 5 Hour rate | 99.5AH |
| 1 Hour rate | 70.5AH |
Internal Resistance |
Fully charged battery at 25°C |
4.2m Ω |
Capacity affected by temperature
(10 hour rate) |
40 °C
25 °C
0 °C
-15 °C |
102%
100%
85%
65% |
Self-Discharge
At 25°C |
Capacity after 3 month storage
Capacity after 6 month storage
Capacity after 12 month storage |
91%
82%
64% |
Terminal Type |
T10 AGM Battery |
Charge
(Constant Voltage) |
Cycle use |
Initial Charging Current less than 40 A
Voltage 14.40~15.00V |
Float use |
Voltage 13.50~13.80V |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
