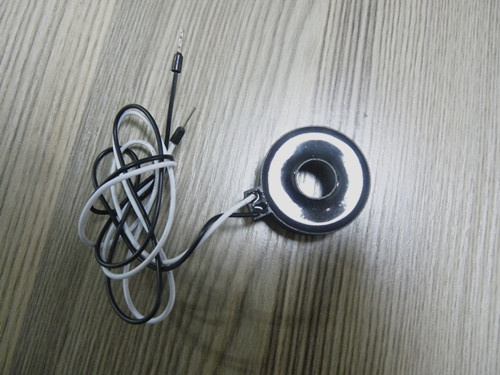

CT Core Through Current Transformer for Electric Energy Meters

Name: CT Core Through Current Transformer for Electric Energy Meters
Brand: all-electronics-online.com
SKU: 783281845
Availability: InStock
Rating: 5 (57 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CORE AM ID/ODXH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction:	Low Core Loss
Application:	Lighting
Type:	Current Transformer
Phase:	Single and Three

Product Description

High Precision Current Transformer Main Features

1. high accuracy ,wide linearity ,good consistency

2.wide limiation starndard ,strong resistance to saturation

3.current transformer are leading-wire and circuit board weld installation

4.curernt transformer mainly include straight -through current transformer and split core transformer

Electrical Parameter

1.Rated input current :5A-600A (customized as request )

2.Rated output current :2mA-50mA(Customized as request )

3.Load resistance 20Ω

4.Dielectric Strength :6KV 1Min

5.Operation termperature :-55°C-+85°C

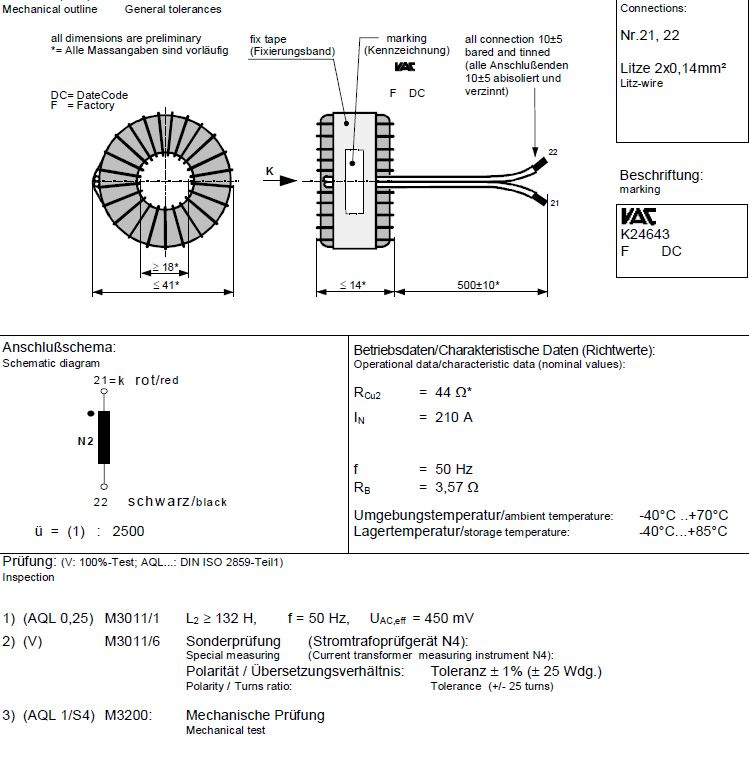

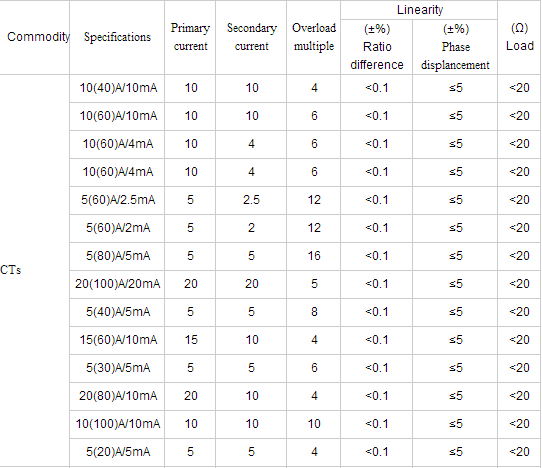

Specification and product drawing

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
