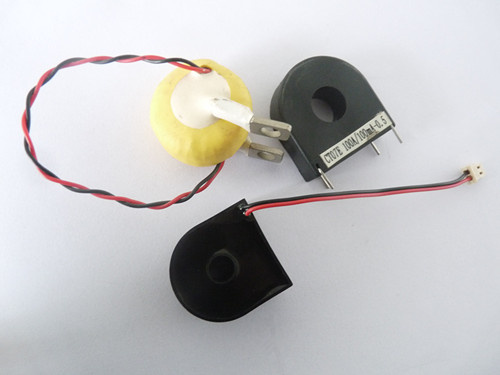

CT Current Transformer with Permalloy Core Customized

Name: CT Current Transformer with Permalloy Core Customized
Brand: all-electronics-online.com
SKU: 782006535
Availability: InStock
Rating: 4.3 (150 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CT100A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction:	Low Core Loss
Application:	Audio
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Phase:	Single and Three
Brand:	Coilcore

Product Description

Features:

Epoxy resin molding encapsulation,good mechanical property and insulation property;extremely high

linearity and stable phase error;meet the standards of IEC60044-1,GB1208-97

Applications:

Electric energy meter,preccision wattmeter,electric quantity transformer,data sampling for current and

voltage,relay protection,power transmitter,servomotor and electric power monitoring facilities,various digital

electrical measuring instruments in dynamic system,meters and intelligent electric control cabinet.

1	Primary Current (Arms 50/60Hz)	60A
2	Primary/secondary currents ratio in the nominal range of primary current	2500Ts
3	D.C.Resistance .at25 0C (Ω)	150±12Ω
4	Burden resistive load of secondary winding	10Ω
5	Amplitude Error f(%) 50/60Hz	±0.2%
6	Phase Angle Error δ(o) 50/60Hz	±0.17degree
7	Primary Current (Arms 50Hz)	0.5A	2A	10A	60A

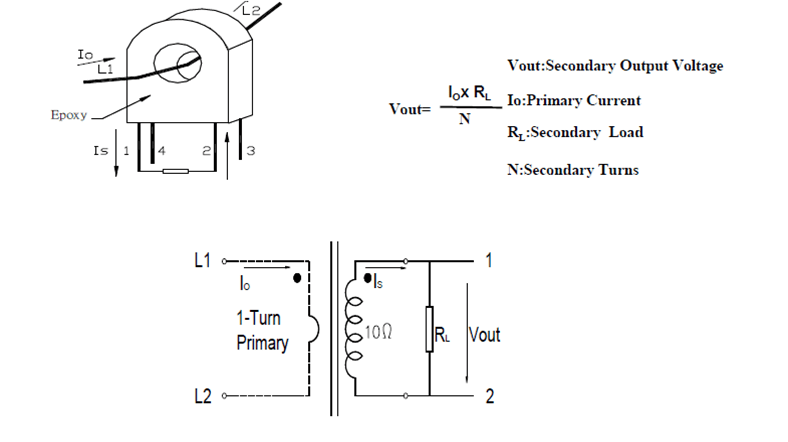

8	Secondary Output Voltage For 10Ω Load(mVrms)	2mV	8mV	40mV	240mV
9	Insulation between primary non-insulated wire, touching inside surface of the window, and secondary output must withstand AC rms voltage	4000V/1mA/1sec
10	Ambient operating temperature range	-40oC~70oC

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
