CT Modular Contactors Telemecanique Contactor

Name: CT Modular Contactors Telemecanique Contactor
Brand: all-electronics-online.com
SKU: 758369465
Availability: InStock
Rating: 4.6 (148 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	CT
Function:	AC Conactor
Certification:	CE CCC
Operation:	Manual Type
Rated Current(a):	AC4
Volt:	220V
Hz:	50/60Hz
Number Of The Contacts:	1p 2p 3p 4p
Circumstance Temperature:	-5°c~40°c
Brand:	Suntree/OEM
Load:	High Power Relay
Protective Characteristics:	Open Relay
Theory:	Electromagnetic Relay
Size:	Miniature
Usage:	Communication Relay
Action Principle:	Electronic Type

Product Description

CT modular contactors telemecanique contactor

Household AC Contactor

Modular contactors are not only used in the residential sector but in the tertiary
sector or in industrial utilities for the control of single or
three-phase loads up to 100 A.

They act as an interface between the order giver (e.g. power utility signal,

load-shedding device, pushbutton, thermostat, programmable time switch,

centralised technical management,) and the power circuit for final circuits:

lighting, utility motors: ventilation, heat pumps, watering system

hot water, heating, ovens, climatic chambers

Operrattiion:

The range includes two types of contactors:

Contactors with no manual operating mechanism:

- with closing poles, pole closing is controlled by the presence of voltage on

the coil and pole opening by the disappearance of this voltage,

- with opening poles, the poles are closed with the coil de-energized and

open when the coil is fed with power. Mainly used for load-shedding,

- with mixed poles (closing and opening).

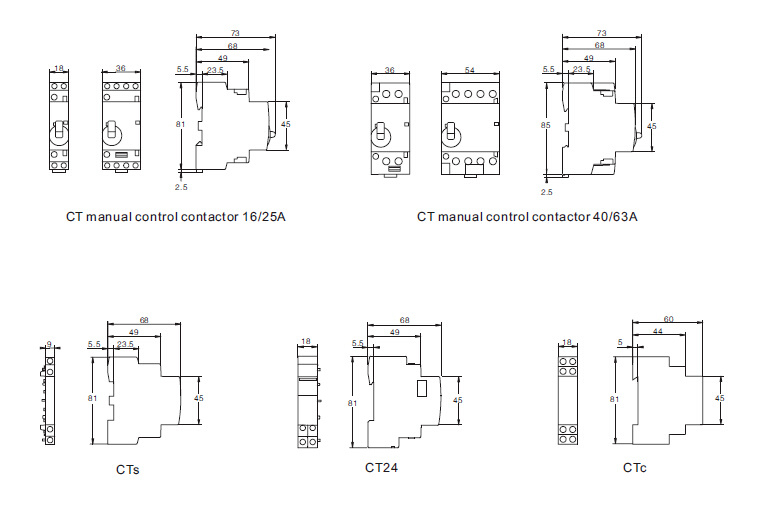

Contactors with manual operating mechanism: they additionally allow

closing or opening of the poles using the selector switch on the front panel

during maintenance operations, or are used to override an automatic

system. The selector switch has 3 positions: OFF/automatic operation/

manual or permanent operation.

Advanttages

A complete range of modular contactors:

16 to 100 A ratings in single, two, three or four-pole.

Closing, opening or mixed poles with or without manual operating mechanism.

Comply with the standards in force in residential and tertiary applications:

IEC61095.

Silent (< 20 dB).

With an adaptable indication auxiliary for 25 to 100 A contactors.

With control auxiliaries compatible with the reverser relay range and remote control of

the C60 circuit-breaker.

Anti-interference filter.

With accessories: screw cover, clip-on markers, spacers.

Homogenous with the entire Multi 9 offer:

- matching design,

- same profile,

- identical connections.

IIMPLEMENTATIION

Designed to be installed in modular switch boxes and switchboards.

Optimised dimensions: in accordance with the rating and number of poles.

Easy symmetrical rail mounting using a twostate latch.

Easy connection using grooved tunnel terminals with flap.

Mixed +/- socket screws which cannot be lost.

Auxiliaries simply clipped on to contactors.

SPECIIFIICATIIONS

Electrical specifications

Power circuit:rating at 40C: 16 to 100A.

Control circuit:

operating voltage:

- 24 V AC ± 10%

- 230/240 V AC: -15% +6%,

coil frequency: 50 Hz.

Electrical endurance:

AC1 and AC7a categories:

- 16 A ratings, 100,000 operations

- 25 A ratings, 250,000 operations

- 40-63-100 A ratings, 200,000 operations.

Mechanical specifications

Visualisation of contactor state on front panel (coil fed or manual operation).

Mechanical endurance: 1,000,000 operations.

Connections:

control circuit:

- rigid cable: 2 x 1.5 mm2

- supple cable: 2 x 2.5 mm2 ,

power circuit:

- rigid cable:

6 mm 2 up to 25 A

25 mm 2 for 40 and 63 A

50 mm 2 for 100 A

- supple cable:

2 x 2.5 mm2 up to 25 A

2 x 10 mm2 for 40 and 63 A

2 x 35 mm2 for 100 A.820.

ENVIIRONMENT

Tropicalisation:

treatment 2 (relative humidity: 95% at 55C ).

Protection class:

IP 201 (front panel: IP 4).

Operating temperature:

- 5°C to +60°C.

Storage temperature:

- 40°C to +70°C.

Household AC Contactor Technical Data

Ratings

Utilization category	Ui (V)	Ui (V~)	Conventional heating current (A)	Ie (A)	Controlled power (kW)
AC-1, AC-7a AC-7b	500	230	63	63/25	13/3.8
AC-1, AC-7a AC-7b	500	230	40	40/15	8.4/2.4
AC-1, AC-7a AC-7b	500	230	32	32/12	6.5/1.9
AC-1, AC-7a AC-7b	500	230	25	25/8.5	5.4/1.9
AC-1, AC-7a AC-7b	500	230	20	20/7	4/1.2

Making and breaking capacity

Utilization category	Making and breaking conditions			Electrification time (s)	Interval time (s)	Operating cycle times
Utilization category	Ic/Ie	Ur/Ue	COS	Electrification time (s)	Interval time (s)	Operating cycle times
AC-1, AC-7a	1.5	1.05	0.8	0.05	10	50
AC-7b	8	1.05	0.45	0.05	10	50

Conventional operating performances

Utilization category	Making conditions			Breaking conditions			Electrification time (s)	Interval time (s)	Operating frequency
Utilization category	Ic/Ie	Ur/Ue	COS	Ic/Ie	Ur/Ue	COS	Electrification time (s)	Interval time (s)	Operating frequency
AC-1	1.0	1.05	0.8	1.0	1.05	0.8	0.05	10	6000
AC-7a	1.0	1.05	0.8	1.0	1.05	0.8	0.05	10	30000
AC-7b	6.0	1.0	0.45	1.0	0.17	0.45	0.05	10	30000

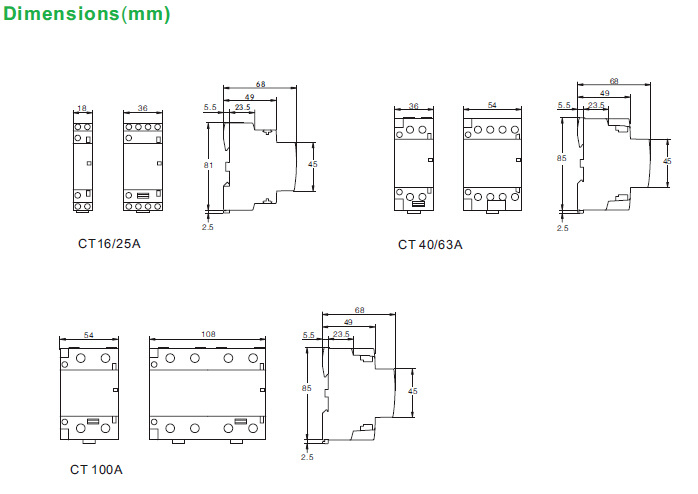

AC Contactor Dimensioned

AC contactorApplication
1)LC1-D series AC Contactor
is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz,
rated current up to 95A, for making, breaking, frequently starting & controllingthe AC motor.
2)Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.
3)The product conforms to IEC60947-4-1 CE stardand.
Standard Control Circuit Voltage

Volts

110

220

230

240

380

400

415

440

500

600

50Hz

60Hz

50/60Hz

LC1-D AC contactor Technical Data

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO

LC1-D AC contactor Dimensioned

Type	A	B	C	D	E	a	b
LC1-D09~12	47	76	82	113	133	34/35	50/60	4.5
LC1-D18	47	76	87	118	138	34/35	50/60	4.5
LC1-D25	57	86	95	126	146	40	48	4.5
LC1-D32	57	86	100	131	151	40	48	4.5
LC1-D40~65	77	129	116	145	165	40	100/110	6.5
LC1-D80~95	87	129	127	175	195	40	100/110	6.5

LC1-D AC contactor

Application
1)LC1-DN series AC contactor is suitable for frequency 50/60Hz, rated insulation voltage up to1000V,
rated operation current 9~150A under AC-3 duty. It is mainly used for making/breaking electric circuits at a long distance & for frequent
starting/stopping & controlling AC Motors.
2)It isused in combination with thermal relay to compose a magnetic motor starter.
3)The products com-ply with IEC60947-4-1 standard.
Standard Control Circuit Voltage

Volts

110

220

230

240

380

400

415

440

500

600

50Hz

60Hz

50/60Hz

LC1-DN AC contactor Technical Data

Type		LC1-DN09	LC1-DN12	LC1-DN18	LC1-DN25	LC1-DN32	LC1-DN38	LC1-DN40
Rated working current Ie (A) AC-3 Ue≤440V		9	12	18	25	32	38	40
Rated hear current Ith (A)		25	25	32	40	50	50	60
Rated insulation voltage Ui (V)		690	690	690	690	690	690	1000
Rated operating voltage Ue (V) Max		690	690	690	690	690	690	1000
Rated operational power in AC-3 Pe (KW)	220/230V	2.2	3	4	5.5	7.5	9	11
	380/400V	4	5.5	7.5	11	15	18.5	18.5
	415/440V	4	5.5	9	11	15	18.5	22
	500V	5.5	7.5	10	15	18.5	18.5	22
	660/690V	5.5	7.5	10	15	18.5	18.5	30
Rated operational power in AC-4 Pe (KW)	220/230V	1.5	1.5	2.2	3	4	4	4
	380/400V	2.2	3.7	4	5.5	7.5	7.5	9
	415/440V	2.2	3	3.7	5.5	7.5	7.5	9/11
	500V	3	4	5.5	7.5	9	9	11
	660/690V	4	5.5	7.5	10	11	11	15
Frequency of operation (I/h)		1200	1200	1200	1200	1000	1000	1000
Electrical endurance (x104)	AC-3	100	100	100	100	80	80	80
Electrical endurance (x104)	AC-4	20	20	20	20	20	20	15
Mechanical endurance (x106)		15	15	15	15	15	15	6
Operating voltage range of coil	Close voltage:(0.85~1.1)Us Open voltage:(20%~75%)Us
Power consumption of coil (VA)	Atracting	7	7	7	7	7	7	20
Power consumption of coil (VA)	Starting	70	70	70	70	70	70	200
Rated insulation voltage of auxitiary contacts (V)	690	690	690	690	690	690	690	690
Conventional thermal current of auxitiary contacts (A)	10	10	10	10	10	10	10	10
Auxitiary contacts speecification	AC-15:360VA DC-13:33W

Type		LC1-DN50	LC1-DN65	LC1-DN80	LC1-DN95	LC1-DN115	LC1-DN150
Rated working current Ie (A) AC-3 Ue≤440V		50	65	80	95	115	150
Rated hear current Ith (A)		80	80	125	125	200	200
Rated insulation voltage Ui (V)		1000	1000	1000	1000	1000	1000
Rated operating voltage Ue (V) Max		1000	1000	1000	1000	1000	1000
Rated operational power in AC-3 Pe (KW)	220/230V	15	18.5	22	25	30	40
	380/400V	22	30	37	45	55	75
	415/440V	25/30	37	45	45	59	80
	500V	30	37	55	55	75	90
	660/690V	33	37	45	45	80	100
Rated operational power in AC-4 Pe (KW)	220/230V	5.5	7.5	7.5	9	9	11
	380/400V	11	11	15	15	18.5	22
	415/440V	11	11/15	15	15	18.5	22
	500V	15	18.5	22	22	30	37
	660/690V	18.5	22	25	25	30	45
Frequency of operation (I/h)		1000	1000	750	750	750	750
Electrical endurance (x104)	AC-3	60	60	60	60	60	60
Electrical endurance (x104)	AC-4	15	15	15	15	15	15
Mechanical endurance (x106)		6	6	4	4	4	4
Operating voltage range of coil	Close voltage:(0.85~1.1)Us Open voltage:(20%~75%)Us
Power consumption of coil (VA)	Atracting	20	20	20	20	22	22
Power consumption of coil (VA)	Starting	200	200	200	200	300	300
Rated insulation voltage of auxitiary contacts (V)	690	690	690	690	690	690	690
Conventional thermal current of auxitiary contacts (A)	10	10	10	10	10	10	10
Auxitiary contacts speecification	AC-15:360VA DC-13:33W

LC1-DN AC contactor Dimensioned

Type	09	12	18	25	32	38	40	50	65	80	95	115	150
b	76.6	76.6	76.6	76.6	76.6	76.6	127	127	127	127	127	158	158
c	87	87	87	94	94	94	116	116	116	123.8	123.8	132	132

LC1-F AC contactor

Application
LC1-F series
AC contactor is applicable in the circuits up to the rated voltage 1000V AC 50Hz or 60Hz,rated
curent 780A, for long distance breaking circuit and frequently starting or control the motor.
It also can be used for the control of distribution circuits of rated current from 200A TO 1600A.

LC1-F AC contactor Technical Data

Type		LC1-F115	LC1-F150	LC1-F185	LC1-F225	LC1-F265	LC1-F330	LC1-F400	LC1-F500	LC1-F630
Rated operation current (A)	AC-3	115	150	185	225	265	330	400	500	630
Standard power ratings of 3-phase motors AC-3(KW)	220V	30	40	55	63	75	100	110	147	200
	380V	55	75	90	110	132	160	200	250	335
	415V	59	80	100	110	140	180	200	280	375
	440V	59	80	100	110	140	200	250	295	400
	500V	75	90	110	129	160	200	257	335	400
	660V	80	100	110	129	160	200	280	335	450
	1000V	65	65	100	100	147	160	185	335	450

3TB AC contactor

Application
The contactor is suitable for using in the circuit up to the rated voltage 660V AC 50Hz or 60Hz,
rated current 630A, for making and breaking, and for frequent starting and controlling the motor.
After combined with the mechanical interlocking device, it becomes 3TD Series convertible contactor
for Controlling, starting, breaking and Reversing of the motor.
The products comply with IEC947 & VDE0660.

3TB AC contactor Technical Data

Type			3TB-40	3TB-41	3TB-42	3TB-43	3TB-44
Rated insulation voltage			660	660	660	660	660
Rated operational current(380V)		AC-3	9	12	16	22	32
Rated operational current(380V)		AC-4	3.3	4.3	7.7	8.5	15.6
Rated outputs of three-phase motors at 50Hz	AC-3	230/220V	2.4	3.3	4	6.1	8.5
		400/380V	4	5. 5	7.5	11	15
		500V	5.5	7 .5	10	11	21
		690/660V	5.5	7.5	11	11	23
		1000V	-	-	-	-	-
	AC-4	400/380V	1.4	1.9	3.5	4	7.5
	AC-4	690/660V	2.4	3.3	6	6.6	13
(×106)Mechanical endurance			10	10	10	10	10
Switchina frequency		AC-3	1.0	1.0	1.0	1.0	1.0
Switchina frequency		AC-4	0.2	0.2	0.2	0.2	0.2
(×106)Mechanical endurance		AC-3	1000	1000	750	750	750
(×106)Mechanical endurance		AC-4	250	250	250	250	250
Coil voltage lolerance		(0.8~1.1)Us
Power consumption of coil (50Hz)	Closed		10	10	10	10	10
	Cos		0.29	0.29	0.29	0.29	0.29
	Closing		68	68	68	68	68
	Cos		0.82	0.82	0.82	0.82	0.82
Convention althermal current			20	20	30	30	45
Conventional thermal current of auxiliary contacts			10	10	10	10	10
Rated operational current of auxiliary contacts		AC-15 380/220V	6/10	6/10	6/10	6/10	4/6
Weight			0.43	0.43	0.49	0.49	0.7
The number of AC coil voltage			Coil for 50Hz AC		Coil for 50Hz/60Hz AC
			24	BO	24	C1
			42	DO	42	D1
			110	FO	110	G1
			220	MO	220	P1
			240	UO	240	R1
			380	QO	-	-

3TH AC contactor

The auxiliary contactors is the auxiliary suited by controlled circuit with voltage is AC 50/60Hz,660V
and DC 660V.They control all kinds of magnetic coil and amplify or transfer signal to relative
controlled element simultaneously. They are characterized by high performance & long service life.

3TH AC contactor Technical Data

Rated Voltage	Rated operational current(A)		Controllable motor power AC3(KW)
Rated Voltage	le=AC11, AC14	DC11	Controllable motor power AC3(KW)
110V	-	0.9	-
220V	10	0.45	2.2
380V	6	-	4
440V	-	0.25	4
660V	2	-	4

Type	Type of contact
Type	NO	NC
3TH30	4	1
31-OA	3	2
22-OA	2	3
13-OA	1	4
04-OA	-	-
3TH40/3TH80 40-OA	4	1
31-OA	3	2
22-OA	2	3
13-OA	1	4
04-OA	-	-
3TH42/3TH82 80-OA	8	-
71-OA	7	1
62-OA	5	2
53-OA	5	4
44-OA	4	-

3TF AC contactor

1)3TF Series AC Contactors are latest products in 1990's.The series products are suitable for
frequency of 50/60Hz,rated insulation voltage up to 690-1000V,rated opreational current up to 9A-400Aat raetd operational voltage up to 380V under the utilization category AC-3.
2)3TF Sersies AC Contactors are mainly used for making breaking electric circuits at a ling distance
and for frequent starting stopping and reversing control of AC motors
3)They comply with IEC947,VDE0660, MGB14048.

3TF AC contactor Technical Data

Type	Rated thermal current(A)	Rated operation current(A)		Controllable power of motor(KW)				Type of auxliliary contact
		Rated operation current(A)		AC-3		AC-4
		380V	660V	380V	660V	380V	660V
3TF30	20	9	7	4	5.5	1.4	2.4	NO NC 1NO+1NC 2NO+2NC
3TF31	20	12	7.5	5.5	7.5	1.9	3.3
3TF32	30	16	12.5	7.5	11	3.5	6
3TF33	30	22	16.5	10	15	4	6.6
3TF34	55	32	24	15	22	7.5	13
3TF35	55	38	24	18.5	22	9	15.5
3TF40	20	9	7	4	5.5	1.4	2.4
3TF41	20	12	7.5	5.5	7.5	1.9	3.3
3TF42	30	16	12.5	7.5	11	3.5	6
3TF43	30	22	16.5	10	15	4	6.6
3TF44	55	32	24	15	22	7.5	13
3TF45	55	38	24	18.5	22	9	15.5
3TF46	80	45	40	22	37	12	20.8	2NC+2NO 4NC+4NO
3TF47	80	63	60	30	55	14	24.3
3TF48	100	75	60	37	55	17	29.5
3TF49	100	85	80	45	75	21	36
3TF50	160	110	95	55	90	27	46.9
3TF51	160	140	120	75	110	35	60
3TF52	200	170	160	90	150	38	66
3TF53	210	205	165	110	160	50	86
3TF54	300	250	230	132	220	58	100
3TF55	300	300	260	160	250	66	114
3TF56	400	400	380	200	355	81	140
3TF68	630	630	600	335	560	160	278

Xinchi Electric Co., Ltd. is the best one, which stands out above the rest in China intelligent low voltage electrical field, meanwhile it is a grouping company in the "city of electrical".There are four branch companies subordinate to it:Yueqing Xinchi Electric Sci-Tech Co., Ltd, Yueqing Imp&Exp Co., Ltd, HK Yangming Electrical Technology Co., Ltd and Wenzhou Litto smart Co., Ltd.Moreover.There are 320 workers, the annual output value breakthrough one hundred million, and the export value arrive at ten million.
We always pay attention to manufacture and sell automatic industrial and control system, modular intelligent electrical equipments, such as circuit breakers, residual circuit breakers, contactors, isolators, solid state relay, control and protect switch, automatic transfer switch, electrical fire detecting system, surger protect device, multifunctional meter and new energy system fittings etc.
Especially DC circuit breaker, DC isolating switch, DC fuse, busbar chamber, waterproof switch and other products with leading technical level in this field...We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI and CCC certification.Our products are widely used by domestic famous enterprises, and it has become a OEM partner of many international famous brands.

We have fully implement the IS09001:2008 quality management system.It adopts advanced production equipment and precision detecting equipment, introduces high-tech process and high technology talents to provides powerful guarantee for product development, quality upgrading and management innovation of the company.
In order to seek after the excellence, Xinchi will continue to carry on the spirit of "practice, honesty, innovation, active", insist on the policy of " technology promotes industry, Brand promotes industrial", and we believe in "Technology innovation, famous in the world", working hard to let"XINCHI electric brand"walk towards to the world.

Send your message to this manufacturer

*Subject:
*Name:
*Company:
*E-mail:
*Message:
*Country:
*Verification Code:

CT Modular Contactors Telemecanique Contactor

Product Detail

Company Info

Product Description

Household AC Contactor

LC1-D AC contactor Technical Data

LC1-D AC contactor

LC1-DN AC contactor Technical Data

LC1-F AC contactor

LC1-F AC contactor Technical Data

3TB AC contactor

3TB AC contactor Technical Data

3TH AC contactor

3TH AC contactor Technical Data

3TF AC contactor

3TF AC contactor Technical Data

Send your message to this manufacturer

CT Modular Contactors Telemecanique Contactor

Product Detail

Company Info

Product Description

Household AC Contactor

LC1-D AC contactor Technical Data

LC1-D AC contactor

LC1-DN AC contactor Technical Data

LC1-F AC contactor

LC1-F AC contactor Technical Data

3TB AC contactor

3TB AC contactor Technical Data

3TH AC contactor

3TH AC contactor Technical Data

3TF AC contactor

3TF AC contactor Technical Data

Send your message to this manufacturer

Other Products with This Manufacturers
