CT Sensor Split Core CT Sct023r R Core

Name: CT Sensor Split Core CT Sct023r R Core
Brand: all-electronics-online.com
SKU: 783292765
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCT023R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction:	Low Core Loss
Application:	Lighting
Type:	Current Transformer
Phase:	Single and Three

Product Description

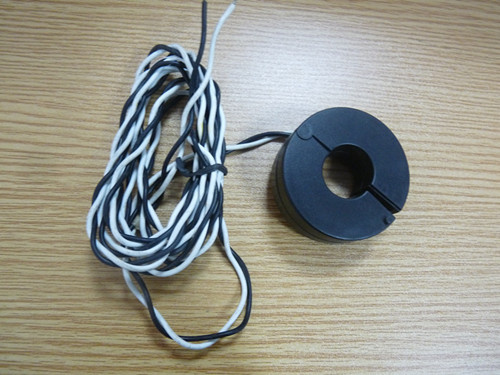

mini CT clamp / CT sensor split core CT SCT023R R core

1 Model : SCT023R

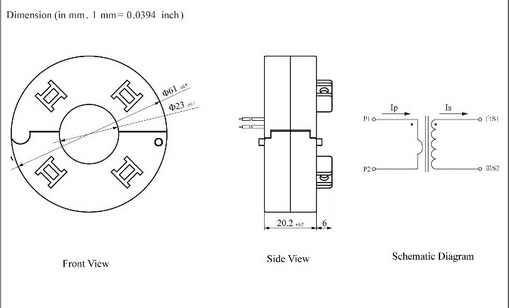

2 opening size: 23mm

3 primary current : 400A AC

4 secondary: 80mA

5 turn ratio : 1:5000

6 shape : round type, split core , suspend hanging

7 fire resistance : UL94-V0

8 accuracy : ±0.5%

9 work voltage : 720V

10 dielectric strength : 3.75KV / 1 min 50Hz

11 operating temperature : -25 ~+75°c

12 AC current clamp

13 Round core current transformer

14 split core current transformer

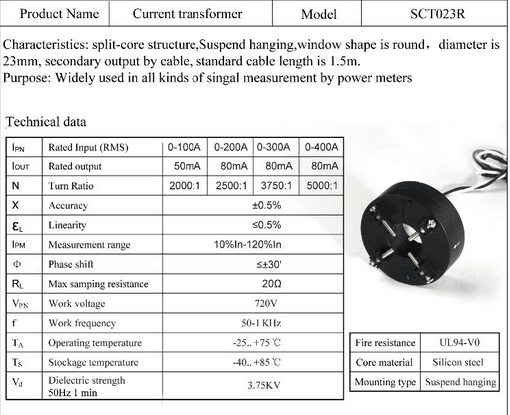

Model	SCT023R
Current Ratio	50A/25mA	100A/50mA	200A/100mA
Primary Current (A)	50A	100A	200A
Max. Current (A)	60A	120A	240A
Output	25mA	50mA	100mA
Load Resistance (Ω)	50Ω	50Ω	50Ω
Turns Ration	2000:1	2000:1	2000:1
Class	0.5/1.0
Protection Level	7.5V0-P
Insuliation Category	CATIII
Operating Condition	-20ºC ~ +50ºC, ≤85%RH, No condensation, IN-house & Any direction installable
Storage Condition	-30ºC ~ +50ºC, ≤85%RH, No condensation
