CT Series of The Current Transofrmer (4810807R)

Name: CT Series of The Current Transofrmer (4810807R)
Brand: all-electronics-online.com
SKU: 786658665
Availability: InStock
Rating: 4.9 (20 reviews)

Price:	US $ 0.1/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	4810807R
High Saturation Magnetic Induction:	Low Core Loss
Application:	Audio
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Separated Winding Transformer
Brand:	Coilcore

Product Description

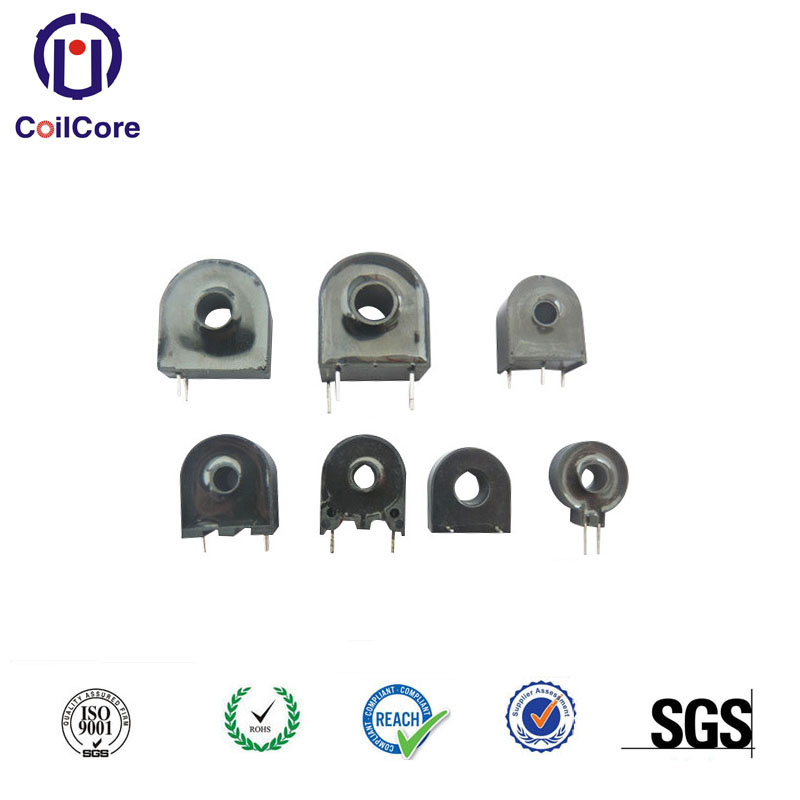

Double Mini PCB Mount Current Transformer (WCT)

Features
Low cost. Low profile for PCB mounting
High accuracy, wide linear range, low phase shift error
Burn-resistant case and filler

Specifications
Accuracy Class: 0.1
Dielectric strength: 2500V/min

Dielectric Resistance: 1000M Ohms @ 500 VDC
Working frequency 50-400Hz
Ambient temperature: -25degrees~+85degrees
RoHS Compliant
CE-approved
Customer specifications are available

Application
Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
Over current protection circuit of motor and other electrical appliances.

ring electronic current transformer

Specifications

Part No

Rated current

Variety rate of -35~80°C

Variety rate of magnetization

Output voltage

Test condition

(A)

Vo(mV),L(mH)

ZCT201

-10%~10%

-10%~0%

4.0~5.0

Iin=10mA,RL=510Ω

ZCT202

-10%~10%

-10%~0%

5.0~6.0

Iin=8mA,RL=750Ω

ZCT203

30/50

-10%~10%

-10%~0%

19~25

Iin=25mA,RL=1KΩ

ZCT204

30/50

-10%~10%

-10%~0%

19~26

Iin=25mA,RL=1KΩ

ZCT206

50/60/70/100

-10%~10%

-10%~0%

5.0~6.0

Iin=22.5mA,RL=270Ω

ZCT207

-10%~10%

-10%~0%

7.5-8.5

Iin=22.5mA,RL=330Ω

ZCT208

-10%~10%

-10%~0%

10.2~12.5

Iin=20mA,RL=680Ω,CL=0.01UF

ZCT209

-10%~10%

-10%~0%

17~21

Iin=22.5mA,RL=1KΩ

ZCT210

-10%~10%

-10%~0%

8~11

Iin=11.25mA,RL=1KΩ

ZCT211

-10%~10%

-10%~0%

15~25

Iin=22.5mA,RL=1KΩ

ZCT212

-10%~10%

-10%~0%

10.2~12.5

Iin=20mA,RL=680Ω,CL=0.01UF

ZCT213

-10%~10%

-10%~0%

≥180

Iin=20mA,RL=47KΩ

ZCT215

-10%~10%

-10%~0%

17~21

Iin=22.5mA,RL=1KΩ

ZCT216

-10%~10%

-10%~0%

17~21

Iin=22.5mA,RL=1KΩ

ZCT219

-10%~10%

-10%~0%

≥180

Iin=20mA

ZCT220

-10%~10%

-10%~0%

≥300

Features:
1	High sensitivity
2	Close to zero load shift and zero phase shift
3	Excellent in balance
4	Perfect in temperature stability
5	Small change in output voltage after passing the heavy current
6	Variety of shape and output voltage
