CT with Zero Type 1A/1mA

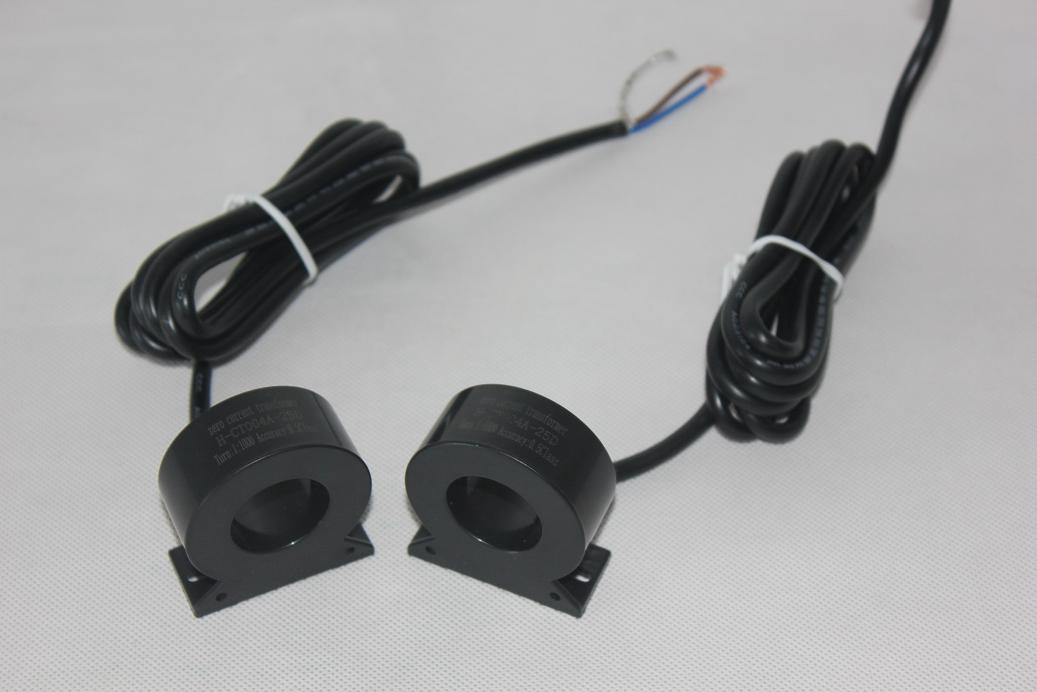

Name: CT with Zero Type 1A/1mA
Brand: all-electronics-online.com
SKU: 800174835
Availability: InStock
Rating: 4.4 (54 reviews)

Price:	US $ 3.8-4.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	H-CT004A-25D
Model:	H-CT004A-25D
Current Ratio:	1A/1mA
Max Current:	63A
Secondary Current:	1mA
Isolation Voltage:	3000V
Secondary Load:	≤5W
Clamp Size:	25mm
Color:	Black
Brand:	E-Power
Manufacturer:	Jiaxing Haihan Electron Co.,Ltd
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

1, Specification notes

1). Outlook face using Flame retardant ABS with black/red color.

2), Output method: Wire with length 150cm.

3), Dimension(Unit: Mm).

4), Mainly using for Ground fault detection or Residual current detection

2, Mainly using for:

1). Clamp-on Current Transformer,

2). Clip on current transformer,

3). Current transformer clamp,

4). Current transformer

3, Quality guarantee!

A, Competive price

B, Perfect service.

If you want to know more information for this model: H-CT004B, Please feel free to contact with us.

Thank you very much for your attention.

Item	Spec	Item	Spec
Frequency	50HZ-60HZ	Coil Ratio	1000: 1
Primary Current	0-63A	Accuracy	0.5Class
Secondary Current	0-63mA	Line insulation	1000V
Setting Pinot	63mA	Insulation Voltage	≥ 3000VAc
Rate Error	0.2%	Insulation strength	500MΩ /500V/min
Main Circuit current	63A	Coil Resistance	Real tested ± 0.5%
Load Resistance	100Ω	Work Temp	-20º C ~ +80º C
