Ctk GPS Chc T6 Rtk Gnss GPS

Name: Ctk GPS Chc T6 Rtk Gnss GPS
Brand: all-electronics-online.com
SKU: 725329505
Availability: InStock
Rating: 4.8 (20 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CHC T6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name And Model:	Chc Rtk GPS X91
Type:	GPS Receiver
Use:	Automotive&Hand Held
Brand:	Chc

Product Description

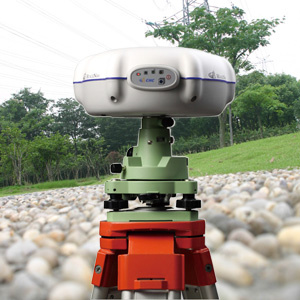

CHC T6 RTK GNSS GPS
Information:
T6 family comes out a new comer---T6 GNSS system, continuing the merits of X91 GPS system.
T6 GNSS system is a compact multi-constellation receiver designed to deliver accurate RTK applications,
Being assured their investment
Is sound today and into the future. Besides GPS L2C, L5 and GLONSAA L1/L2, the T6 GNSS
System supports a wide range of satellite signals,
Providing Galileo-compatible products available for customers well in advance of Galileo system availability.
Data Format
RTCM2.1, RTCM2.3, RTCM3.0, CMR, RTCA, Input and Output
NMEA 0183 outputs, GSOF outputs
Technical Parameters:

RTK
Horizontal:	+(10mm+1ppm)RMS
Vertical:	+(20mm+1ppm)RMS
Initializing Time:	10S
Initialization Reliability:	Typical>99.9%
Static
Horizontal:	+(2.5mm+1ppm)RMS
Vertical:	+(5mm+1ppm)RMS
Physical Reference
Size (HXD):	80mmX180mm
Weight:	1.25kg (Battery Included)
Electronic Reference
Power Consumption:	2.6W
Battery Volume:	2400mAh
Battery Life:	9 Hours (Static) 5 Hours (RTK) 1000 Recharges
External Power:	9-18 VDC
Environment
Working Temperature:	-30 - +65
Storage Temperature:	-40 -+75
Humidity:	100% condensation
Waterproof and Dustproof:	IP67, protected from temporary immersion to depth of 1 meter, floating.
Shock and Vibration:	Survive from 2 meters drop onto concretes
Characteristics
Buttons and Display:	2 buttons/4 LED lights
I/O:	RS232, High-speed USB, Bluetooth
Channel:	220 Channels
Datalink
Power (UHF):	1W-20W Adjustable
Band Width:	410-430 MHz / 430-450 MHz / 450-470 MHz

Our company supplys different kinds of products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Shanghai Galaxy International Trade Co., Ltd is special line in all kind survey instruments.

· Variety Survey Instruments:

Total Station, GPS, Theodolite, Auto Level, Distance Laser Sensor, Tripod, Prism, Prism Pole, Battery, Charger, Data Cable, ect.

· Perfect Technique Service:

We have a strong technique Team: Studying, Researching, Developing and can repair all kind brand Survey Instruments.

· Production Capacity:

We have own factory to produce our brand Total Station, Theodolite, Distance Laser Sensor, ect. OEM can be done.

· The Guarantee of After -Sales Service:

We promise supply the after-Sales Service and let our Customers has no worries about the quality of our products.
