| Prod Model: |
VV 4x240+120mm2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Model: |
VV32,VV42 |
| Brand: |
Jytop |
Product Description

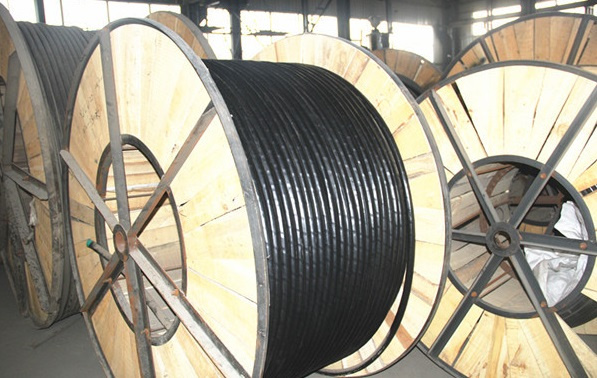

Cu /Al Conductor PVC Insulation Non Armoured Power Cable
A. Standard
It is manufactured under IEC 60502 standard.
B.Using Features
1.Rated voltage includes 0.6/1kv,1.8/3kv,3.6/6kv,6/6kv,6/10kv,8.7/10kv,8.7/15kv,12/20kv,18/30kv.
2.The highest allowed operating temperature of conductor for long-term working is 90°C. In short-Circuit (Max. long term is no more than 5 seconds),the highest temperature for conductor is no more than 250°C.
3. D.C Resistance of the conductor complies with the stipulations of IEC 60502.
4.The installing environment temperature should be no lower than 0°C. Otherwise it should be preheated. The Min. bending radius should be no smaller than 15 times of cable outer diameter.
5. The cable is laid without horizontal drop limit.
6. Working Frequency Voltage Test:
For cable of 3.6kv or lower:2.5 times of the Rated voltage 5 minutes without puncture
For cable of 3.6kv-18kv:3.5 times of the rated voltage 5 minutes without puncture
For cable of 20kv-30kv:2.5 times of the rated voltage 30minutes without puncture
7.Partial Discharge Test:
The discharge volume should be no more than 10pc under 1.73 times of rated voltage for cable.
8. Flame retardant cable could endure firing test in bundle stipulated IEC 60331.

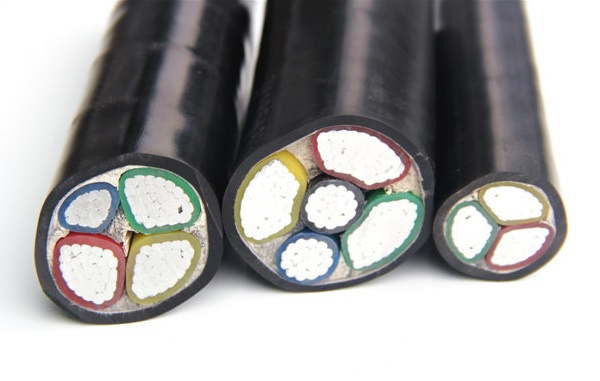

non armoured cable
1, Conductor: Al wire stranded or compacted
2, Insulation: High dentisy XLPE insulation
3, Armoured: steel wire armoured, or stainless steel wire armoured, Aluminum wire armoured for single core.
4, Sheath: PVC,PE,LSOH material is available, with exellent UV resistance if use PE or LSOH material.
PERFORMANCE:
XLPE insulated power cable, either chemical method or physical method is employed to transform the molecular structure of PE from chain into three-dimensional network, i.e. thermo-plastc PE is transformed into thermosetting XLPE, After cross-linking, the thermal and mechanical properties of PE have been greatly improved while its exellent electrical property are still retained.
The mechanical and electrical properties of these cables are accordant with GB/T12706-2002 Power cables extruded insulation and their accessories of elated voltages 1kV(Um=1.2kV)up to 35kV(Um=40.5kV) and IEC60502-1997 Extruded insulation power cables and appendices for rated voltages 1kV up to 30kV
| | Description |
| Cu | Al | |
| YJV | YJLV | XLPE insulation PVC sheath power cable |
| YJY | YJLY | XLPE insulation PE sheath power cable |
| YJV22 | YJLV22 | XLPE insulation, steel tape armor, PVC sheath power cable |
| YJV23 | YJLV23 | XLPE insulation, steel tape armor, PE sheath power cable |
| YJV62 | YJLV62 | XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable |
| YJV32 | YJLV32 | XLPE insulation, thin steel-wire armor, PVC sheath power cable |
| YJV72 | YJLV72 | XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
| YJV42 | YJLV42 | XLPE insulation, thick steel-wire armor, PVC sheath power cable |
TECHNICAL DATA:
U0/Um(kv) | 1st class | 0.6/1kv | 1.8/3kv | 3.6/6kv | 6/10kv | 8.7/15kv | 12/20kv | 18/30kv | 21/35kv |
| No.of Core |
| 1 Core | Section | 1.5-800 | 25-800 | 25-800 | 25-800 | 35-800 | 50-800 | 50-800 | 50-800 |
| |
| area(mm2) |
| 2 Core | Section | 1.5-185 | / | / | / | / | / | / | / |
| |
| Area(mm2) |
| 3 Core | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
| 4 Core | Section | 2.5-400 | 25-400 | / | / | / | / | / | / |
| Area(mm2) |
Four cores:
| cross section mm2 | insulated thickness mm | sheath thickness mm | outer diameter mm | testing voltage kv | current loading capacity |
| in the air | to be laid underground |
| 1.5 | 0.7 | 1.5 | 10.6 | 3.5 | 21 | 25 |
| 2.5 | 0.7 | 1.5 | 11.5 | 3.5 | 28 | 33 |
| 4 | 0.7 | 1.5 | 12.8 | 3.5 | 37 | 44 |
| 6 | 0.7 | 1.5 | 14 | 3.5 | 46 | 54 |
| 10 | 0.7 | 1.5 | 15.9 | 3.5 | 63 | 73 |
| 16 | 0.7 | 2 | 19.1 | 3.5 | 84 | 94 |
| 25 | 0.9 | 2 | 22.7 | 3.5 | 109 | 120 |
| 35 | 0.9 | 2 | 25.4 | 3.5 | 132 | 144 |
| 50 | 1 | 2 | 29 | 3.5 | 159 | 169 |
| 70 | 1.1 | 2 | 32.9 | 3.5 | 195 | 205 |
| 95 | 1.1 | 2.5 | 37.7 | 3.5 | 237 | 245 |
| 120 | 1.2 | 2.5 | 41.6 | 3.5 | 273 | 278 |
| 150 | 1.4 | 3 | 47.6 | 3.5 | 310 | 309 |
| 185 | 1.6 | 3 | 50.6 | 3.5 | 355 | 347 |
| 240 | 1.7 | 3 | 56.4 | 3.5 | 416 | 399 |
| 300 | 1.8 | 3.5 | 62.2 | 3.5 | 473 | 446 |
| 400 | 2 | 3.5 | 68.9 | 3.5 | 512 | 431 |
3+1 cores:
| cross section mm2 | insulated thickness mm | sheath thickness mm | outer diameter mm | testing voltage kv | current loading capacity |
| in the air | to be laid underground |
| 1.5 | 0.7 | 1.5 | 10.6 | 3.5 | 21 | 25 |
| 2.5 | 0.7 | 1.5 | 11.5 | 3.5 | 28 | 33 |
| 4 | 0.7 | 1.5 | 12.5 | 3.5 | 37 | 44 |
| 6 | 0.7 | 1.5 | 13.7 | 3.5 | 46 | 54 |
| 10 | 0.7 | 1.5 | 15.4 | 3.5 | 63 | 73 |
| 16 | 0.7 | 2 | 17.5 | 3.5 | 84 | 94 |
| 25 | 0.9 | 2 | 21.8 | 3.5 | 109 | 120 |
| 35 | 0.9 | 2 | 23.8 | 3.5 | 132 | 144 |
| 50 | 1 | 2 | 27.4 | 3.5 | 159 | 169 |
| 70 | 1.1 | 2 | 31 | 3.5 | 195 | 205 |
| 95 | 1.1 | 2.5 | 34.8 | 3.5 | 237 | 245 |
| 120 | 1.2 | 2.5 | 39.7 | 3.5 | 273 | 278 |
| 150 | 1.4 | 3 | 42.9 | 3.5 | 310 | 309 |
| 185 | 1.6 | 3 | 52.7 | 3.5 | 355 | 347 |
| 240 | 1.7 | 3 | 58 | 3.5 | 416 | 399 |
| 300 | 1.8 | 3.5 | 62.2 | 3.5 | 473 | 446 |
| 400 | 2 | 3.5 | 68.9 | 3.5 | 512 | 431 |
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
