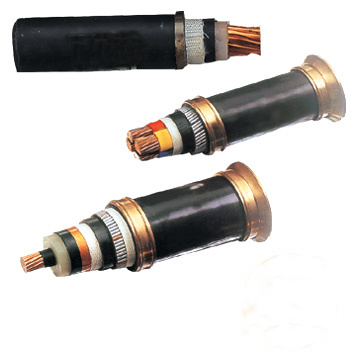

Cu Core XLPE Insulated Unmoured Power Cable

Cu Core XLPE Insulated Unmoured Power Cable
Price: US $ 1/Meter
Min Order: 1000/Meter
Pay Type: L/C,T/T
Prod Model: YJV/YJV22/YJV32/YJV42
Standard: ASTM, IEC, DIN, CSA, BS...
Delivery Distance: as Your Request
Cable Mark: as Your Reauest
Application: Power Station
Voltage: Low and Medium Voltage Cable
Current: AC Cable
Insulation Material: XLPE
Certification: SABS
Brand: Jiapu

Product Description

HOT SALE AL conductor armored power cable
Insulation/Sheath( PVC/PE/XLPE), Armour SWA/STEEL TAPE,


Electric Wire
1. Material: Copper
2. Rated voltage: low voltage
3. Wire identification: Red, yellow, blue, white, black or cutomized
4. No. Of cores : Single core cable from 0.5 mm2  to 400 mm2;
                Multi-core cable from 0.5 mm2 to 10 mm2
5 Standard:   Low voltage: GB/T5023-2008
               (Same standard as IEC60227),JB8734.1-5-1998
6. Insulation: PVC, PE
7. Sheath:PVC, PE
8. Application: Suitable for indoor, channel, conduit,underground,vertical well etc.
9. Nominal cross section area: from 0.5 mm2 to 400 mm2.
10.Packing:100 meters in one roll;plastic film packing and paper label in it.
 XLPE Insulation PVC Sheathed Power Cable (YJV YJLV)

Copper/XLPE Insulated / SWA /Power Cable (0.6/1KV, 6/35KV) specification:

Number Of core: 1core to 5 cores, 3+1 cores, 3+2 cores, 4+1 cores

Voltage: 0.6/1KV, 1/35KV

1) Copper (aluminium) cores / XLPE insulated / PVC(PE) sheathed power cable

2) Copper (aluminium) cores /XLPE insulated /steel tape armored/ PVC ( PE) sheathed power cable

3) Copper (aluminium) cores /XLPE insulated / thin steel wire armored/ PVC ( PE) sheathed power cable

4) Copper (aluminium) cores /XLPE insulated / thick steel wire armored/ PVC ( PE) sheathed power cable

The products can be produced according to our factory specification which is equivalent to the standard IEC, ASTM, DIN. BS. Their structures are simple. The permissible maximum operating temperature is 90C. It is convenient for using, and they can be laid with no restriction of different elevation.

Remarks: Including products for flame retardant, fire resistant and termite-proof

Packing: Export wooden drums


Workshop

Shipment

FAQ
1. How many years has Henan Jiapu Cable Group been in production?
Founded in October 1998 by Mr. Gu, our facility has three separate manufacturing workshops within its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art facility in Xiaodian Industry Park.,Xinxiang, Henan ,China

2. What kinds of products does Jiapu Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;

3. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS

4.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.

5. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.

6. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.

7. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.

The main products are as follows:

Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)

Aerial Bundled Cable 1kV-35kV (ABC Cable)

PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable

Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable

Welding Cable, Control Cable, Rubber Sheathed Cable

Fiber Optic Cable (OPGW, ADSS, etc. )

Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )

We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.

We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
