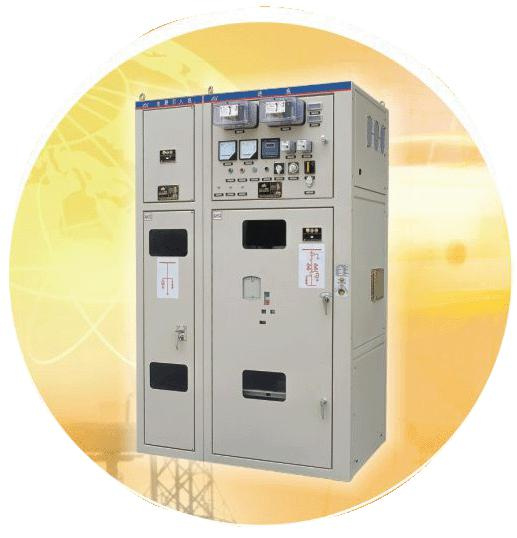

Cubicle Fixed AC Metal-Clad Switchgear
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
XGN66A-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Combination: |
Ring Main Uit |
| Type: |
Low-voltage |
| Installation: |
Indoor High-voltage |
Product Description
Cubicle Fixed AC Metal-clad Switchgear is a latest version of high voltage complete set of electric apparatus for satisfying national standard GB3906 3-35kV alternative current metal-clad switchgear and specifications of DI404 indoor alternative current high voltage switchgear ordering specifications issued by Ministry of Electricity Power, as well as IEC298Above 1kV to 52kV alternative current metal-clad switchgear and control-switchgear specifications. And it has 5-protective functions.
This switchgear is a kind of indoor complete set apparatus with 3-10kV three phase alternative current 50Hz single busbar segment, used for power transmission and distribution, and meanwhile having controlling, protecting and monitoring functions. It is used in places, such as power plants, substations, Industrial and mining enterprises, high buildings, etc. And it can be combined with ring main unit used in some substations and it features:
*A series of vacuum circuit breaker, such as degrees of 12kV, 40kA, etc.
Could be fitted with.
*A kind of specified designed switchgear in order to reduce occupied area
Of substation.
*Combination with ring main unit.
*Simple structure but reliable machinery interlock for antierror
Operation, and operation is easy.
*Each functional compartment is separated, which can effectively resist
Trouble to expand with individual pressure release passage.
*Insulation distances and cable terminal contact could be watched
Through watching window.
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
