Current Sensor, Toroidal Transformer, Rogowski Manufacturer

Name: Current Sensor, Toroidal Transformer, Rogowski Manufacturer
Brand: all-electronics-online.com
SKU: 797723655
Availability: InStock
Rating: 4.5 (41 reviews)

Price:	US $ 40-45/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-KCT03
Accuracy:	0.5 Class
Insulation Class:	Cat III
Rated Primary Current:	400A
Secondary Current:	26.6mA
Turn Ratio:	15000:1
Operating Temperature:	-30 C- 70c
Opening Dimension:	32mm
Withstand Voltage:	3000V/1mA/1min
Coil Structure:	Toroidal
Application:	Rectifier
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

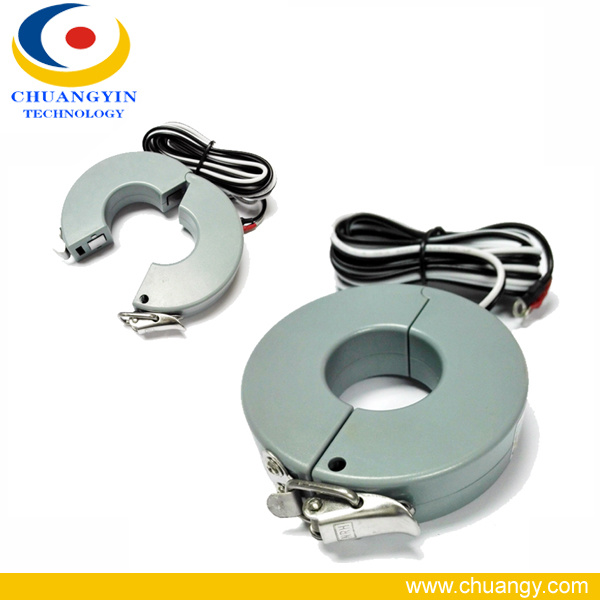

Current Sensor, Toroidal Transformer, Rogowski manufacturer

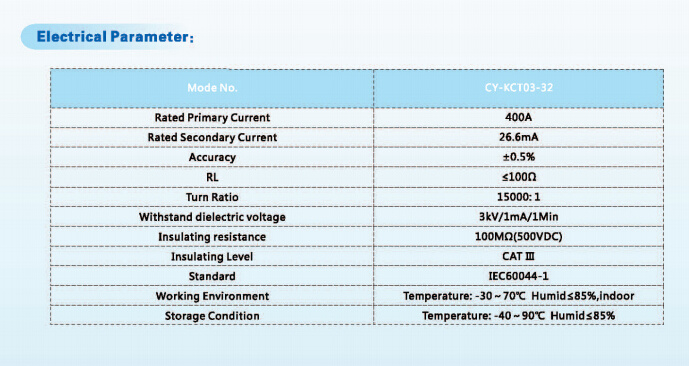

Specification Sheet

Accuracy	0.5 class
Insulation Class	Cat III
Rated Primary Current	400A
Secondary Current	26.6mA
Turn Ratio	15000:1
Operating Temperature	-30 C- 70C

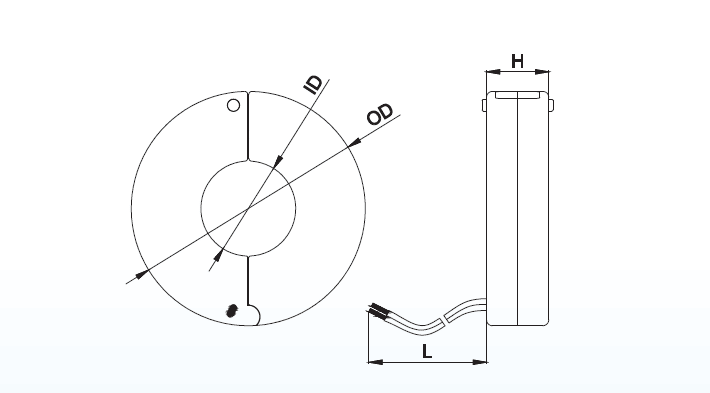

Opening Dimension	32mm
Withstand Voltage	3000V/1mA/1min
Coil Structure	Toroidal
Application	energy monitoring
Packaging Details	Carton
Delivery Detail	as per customer's QTY

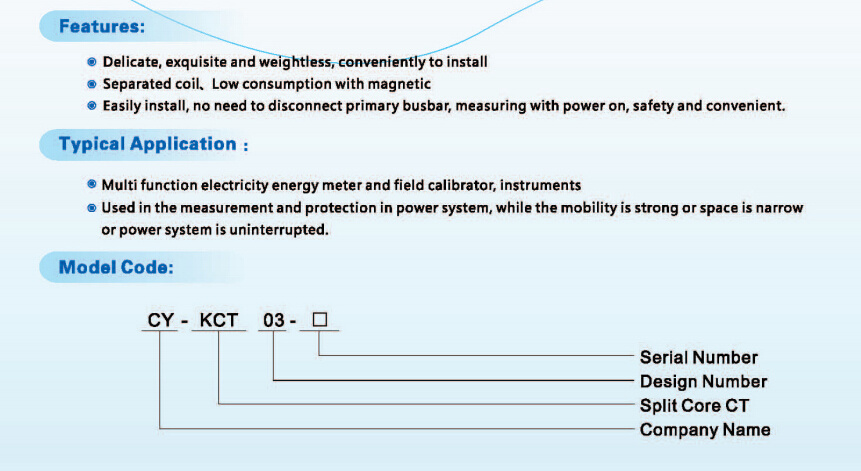

Features:

Delicate, exquisite and weightless, conveniently to install

Separated coil, Low consumption with magnetic

Easily install, no need to disconnect primary busbar, measuring with power on, safety and convenient.

Typical Application:

Multi function electricity energy meter and field calibrator, instruments

Used in the measurement and protection in power system, while the mobility is strong or space is narrow

or power system is uninterrupted

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
