Current Transformer/10kv Cast Resin Type (LZZBJ9-10C2)

Name: Current Transformer/10kv Cast Resin Type (LZZBJ9-10C2)
Brand: all-electronics-online.com
SKU: 698046375
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	US $ 6.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBJ9-10C2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50Hz/60Hz
Rated Voltage:	11kv
Secondary Current:	5A/1A
Model:	Can Be Made to Order
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

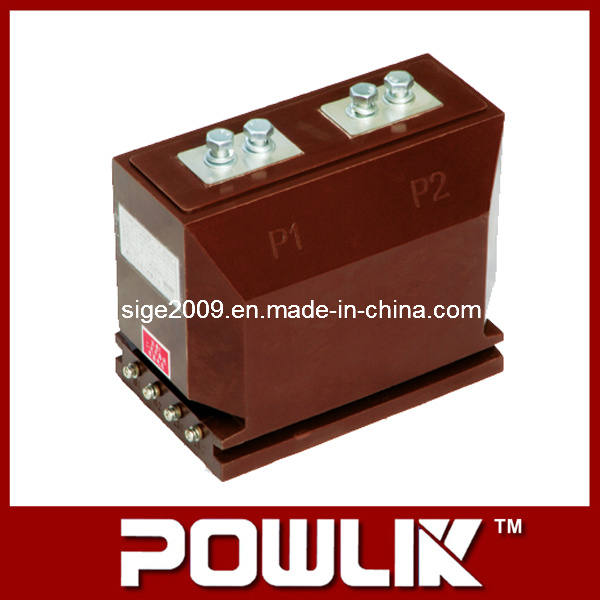

LZZBJ9-10C2 current transformer/10KV Post type

LZZBJ9-10C2 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body. The product has the feature of light weight, omnidirectional installation, withstanding nastiness and dampness. It is widely used for measuring the current, electric energy and relay protection in the electrical system with the rated frequency 50Hz or 60Hz and rated voltage 10 kV or 11kV.

Usage terms
1. Ambient temperature: -5-40 degree
2. Height above sea level within 1000m
3. Installation site: Indoor

Main technical parameter
1. Rated voltage: 10kV or 11kV
2. Rated secondary current: 5A or 1A
3. Highest voltage for equipment: 12 kV
4. Rated power-frequency withstand voltage: 42kV (GB standard ) or 28kV(IEC standard )
5. Rated lightning impulse withstand voltage: 75kV
6. Rated insulation level: 12/42/75kV (GB standard ) or 12/28/75 kV(IEC standard )
7. Standards: GB1208-2006and IEC60044-1.2003
