Current Transformer, 11kv Indoor CT; 5~600/5; 0.2s~10p for Mv Switchgear

Name: Current Transformer, 11kv Indoor CT; 5~600/5; 0.2s~10p for Mv Switchgear
Brand: all-electronics-online.com
SKU: 780868015
Availability: InStock
Rating: 5 (71 reviews)

Price:	US $ 95-105/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBJ9-11A1G-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	CT
Current Transformer:	Epoxy Resin
Mv:	50/60Hz
11kv:	for Switchgear
Frequency:	Current Transformers
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

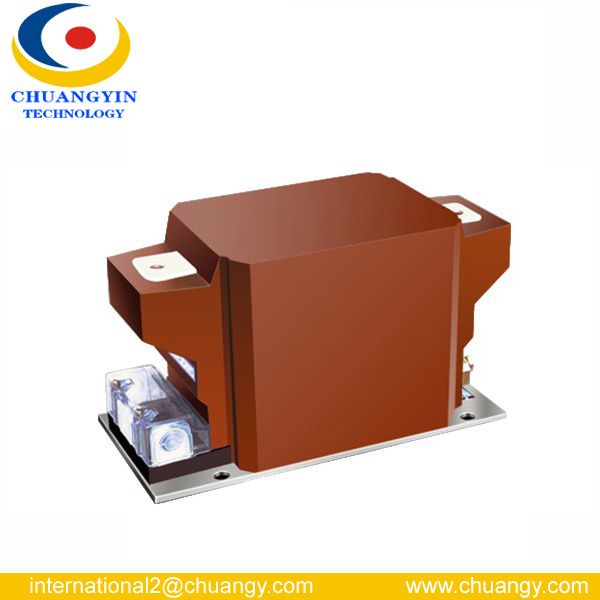

LZZBJ9-11A1G current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has the feature of light weight, omni-directional installation, withstanding nastiness and dampness. It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

Main technical parameter

1. Rated voltage: 11kV
2. Rated secondary current: 5A or 1A
3. Rated insulation level: 12/28/75kV
4. Standards: IEC60044-1.2003

Part 1: Instrument transformers-Part1: Current transformers

Rated current ratio (A)	Accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
5-200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10	15	15	5 (10)	10	100I1n	250I1n
300/5							20	50
400/5							30	75
500/5							40	80
600/5							50	80

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
