Current Transformer, 11kv Indoor Single-Phase Epoxy Resin Casting CT; 20~800/5; 0.2s/0.5

Name: Current Transformer, 11kv Indoor Single-Phase Epoxy Resin Casting CT; 20~800/5; 0.2s/0.5
Brand: all-electronics-online.com
SKU: 757273555
Availability: InStock
Rating: 5 (108 reviews)

Price:	US $ 90-95/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZX-11Q
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	CT
Mv:	Current Transformer
Epoxy Resin Casting CT:	Single-Phase
11kv:	Epoxy Resin
Frequency:	50/60Hz
Accuracy:	25-20k Hz 45-600Hz
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

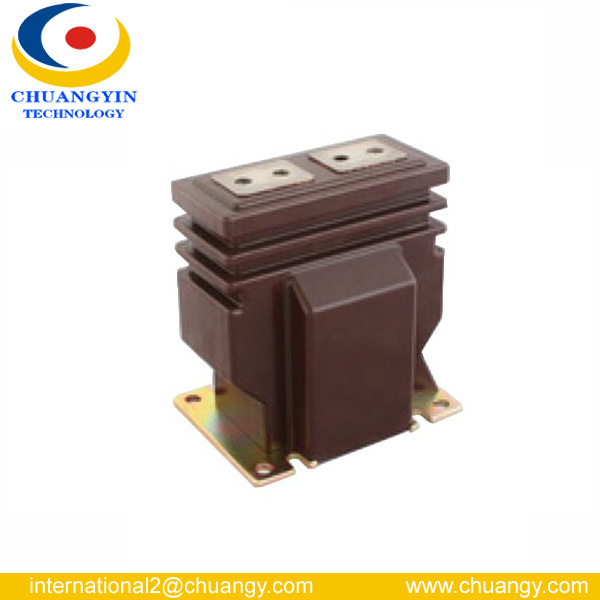

LZZX-11Q current transformer/CT epoxy resin casting insulation and fully enclosed support construction,encloses primary & secondary windings and annular core in the epoxy resin casting body.

The product has the feature of lightweight, omni-directional installation,withstanding nastiness and dampness,widely used for mea.suring current, electric energy and protective relaying in the electrical system with the rated frequency 50- 60Hz and highest voltage for equipment 12kV, IEC61869-1&2.

Technical Data:

1)  Rated insulation level:        12/28/75kV
2)  Rated frequency:                  50/60Hz
3)  Installation site:                     Indoor
4)  Technical standard:              IEC 60044-1:2003,   IEC 61869-1&3

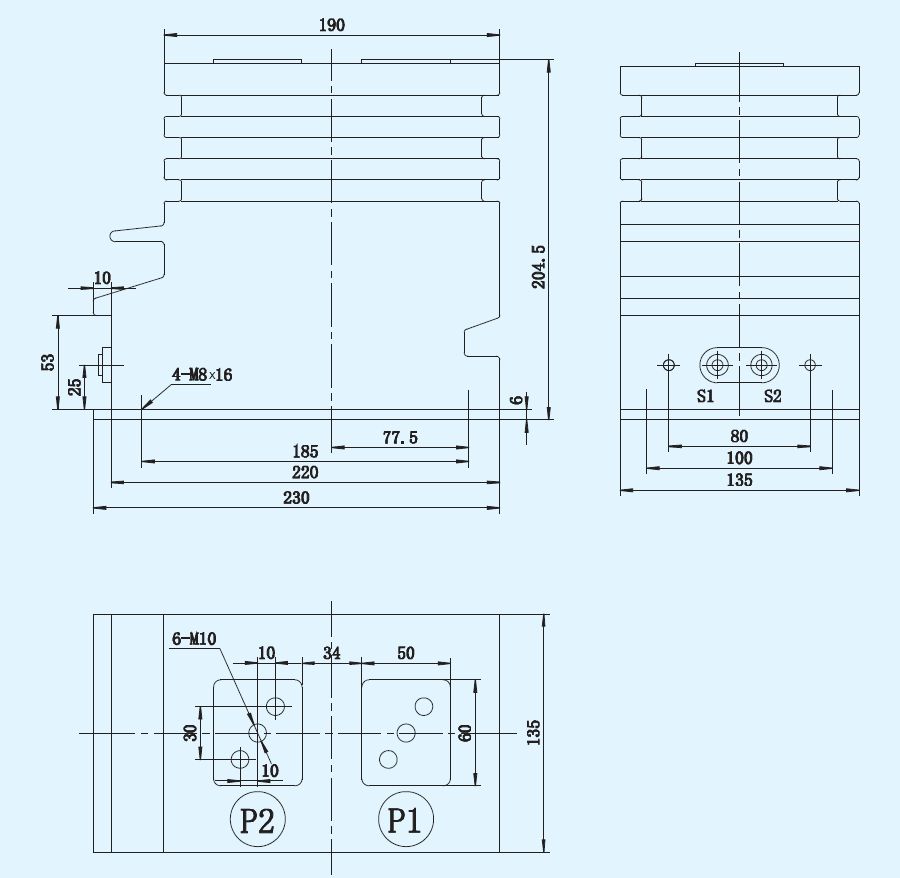

Outline drawing

Main technical parameter

Rated voltage: 11kV
Rated secondary current: 5A or 1A
Highest voltage for equipment: 12kV
Rated power-frequency withstand voltage: 28kV
Rated lightning impulse withstand voltage: 75kV
Rated insulation level: 12/28/75kV
Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
Other technical parameter pls see as follow:

Rated current ratio(A)	Accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2S	0.2	10P
10/5	0.2S 0.2 10P	10	10	15	10	10	1.6/2S	4
15/5							2.4/2S	6
20/5							3.2/2S	8
25/5							4.0/2S	10
30/5							4.8/2S	12
40/5							6.4/2S	16
50/5							8.0/2S	20
75/5							12.0/2S	30
100/5							16.0/2S	40
150/5							24.0/2S	60
200/5							24.0/2S	60
300/5							31.5/2S	80
400/5							31.5/2S	80
600/5							31.5/2S	80

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

Note:
Please browse our website and download product catalogue for detailed information.
