Current Transformer for Switchgear, 11kv Indoor Single-Phase Epoxy Resin Type CT; 10~600/5; 0.2s/10p

Name: Current Transformer for Switchgear, 11kv Indoor Single-Phase Epoxy Resin Type CT; 10~600/5; 0.2s/10p
Brand: all-electronics-online.com
SKU: 782750465
Availability: InStock
Rating: 4.9 (104 reviews)

Price:	US $ 90-95/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LFZZJ-11 Current Transformer
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	CT
Mv:	Medium CT
Epoxy Resin Type CT:	Epoxy Resin
Single-Phase Type CT:	50/60Hz
Outdoor:	11kv
Accuracy:	0.2s
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

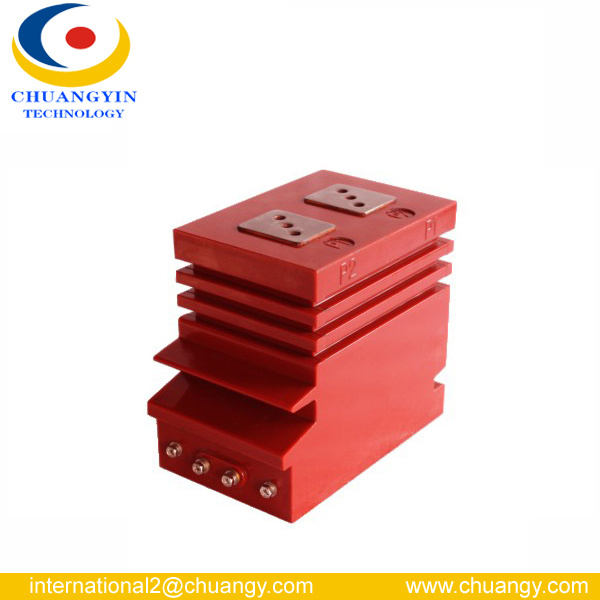

LFZZJ-11 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has large external insulation creep distance, withstands nastiness and dampness. It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

Usage terms

1.     Ambient temperature: -5-40ºC
2.     Height above sea level within 1000m
3.     Installation site: indoor

Main technical parameter

1.     Rated voltage: 11kV
2.     Rated secondary current: 5A or 1A
3.     Highest voltage for equipment: 12kV
4.     Rated power-frequency withstand voltage: 28kV
5.     Rated lightning impulse withstand voltage: 75kV
6.     Rated insulation level: 12/28/75kV
7.     Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
8.     Other technical parameter pls see as follow:

Other technical parameter pls see as follow:

Rated current ratio(A)	Accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2S	0.2	10P
10/5	0.2S 0.2 10P	10	10	15	10	10	1.6/2S	4
15/5							2.4/2S	6
20/5							3.2/2S	8
25/5							4.0/2S	10
30/5							4.8/2S	12
40/5							6.4/2S	16
50/5							8.0/2S	20
75/5							12.0/2S	30
100/5							16.0/2S	40
150/5							24.0/2S	60
200/5							24.0/2S	60
300/5							31.5/2S	80
400/5							31.5/2S	80
600/5							31.5/2S	80

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
