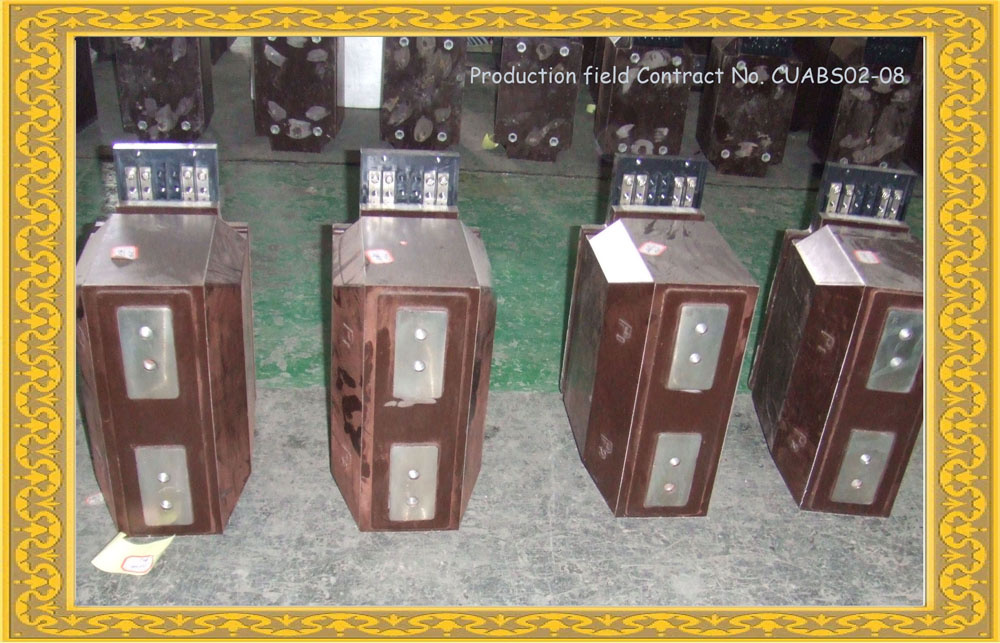

Current Transformer Type IMZ12 Indoor Epoxy Resin Casting

Name: Current Transformer Type IMZ12 Indoor Epoxy Resin Casting
Brand: all-electronics-online.com
SKU: 678310025
Availability: InStock
Rating: 4.6 (130 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

Prod Model:	IMZ12 INDOOR EPOXY RESIN CASTING
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Voltage Transformer
Phase:	Single

Product Description

1. APPLICATION:
The current transformer type IMZ12 is used for electric measurement and electric protection in indoor power system and with rated frequency 50Hz, rated voltage 11kV and below.
2. STRUCTURE FEATURE:
The type current transformer is epoxy resin casting fully-enclosed support-type structure, with big creepage distance and reinforced insulation, its dynamic stability performance is high, it is suitable for the larger system in short circuit current. Not only the product is pollutant-proof\humid-proof, and also is suitable for the district that is severely pollutant \ severely humid, and is even used in the fixed-type switch cabinet type XGN-10.
3. TECHNICAL DATA:
3.1 Rated insulation level: 12/42/75kV;
3.2 Rated frequency: 50Hz;
3.3 Rated secondary current: 5A;
3.4 Basic accuracy class combination: 0.5/10P, 0.5/5P10;
3.5 Measurement class meter safety factor: FS≤ 10;
3.6 Accuracy class and corresponding rated output\rated short-time current, please see the table;
3.7 Protection class accuracy limited factor: 10P, 5P10;
3.8 Partial discharge level: Discharge amount is not more than 20pc.

Guangzhou Ruihu Electric Co., Ltd. Can Professionally provide all kinds of 10kv to 42kv electrical distribution production and components and some low voltage production. The production informat as below.

10kv up to 36kv Cooper power system Brand pad mounted transformer

Components:

15kv/27kv/38kv/46kv two positions/three postions/four postions loadbreak switch,

15kv/27kv/38kv 250A Elbow,

15kv/27kv/38kv Elbow arrest,

Voltage indicator, fualt indicator,

15kv/27kv/38kv Bay-o-net fuse holder assembly,

15kv/27kv/38kv Single phase and three phase Magnex

15kv/27kv/38kv Dual sensing fuse, ELSP Backup fuse,

15kv/27kv/38kv Loadbreak bushing insert, loadbeak Rotatable feedthru insert,

15kv/27kv/38kv Tap changer switch, insulated protective cap,

FR3 transformer high fire point oil

15kv/27kv/38kv Bushing well;

Low voltage 0.4kv- 1000V capacitor, contractor.

Door lock

Hot stick

Fault indicator

Overhead line indicator,

Test type fault indicator,

Cable mounted fault indicator,

Panel mounted fault indicator(EKL4 EMG brand)

Cooper brand fuse

Hight voltage from 3.6kv up 42kv fuse used RUM(loadbreak with fuse unit) and PT and pad mounted transformer

Low voltage fast speed fuse

***Cooper power system brand cable terminal(12kv up to 42kv)***

IEC separable connector, 250A streight and ELbow, 630A bolt T connector Bushing 250A, 630A. From 12kv up to 36kv(Italy brand)

ANSI separable connector, 15kv\25kv\35kv 200A Series and 600A Series

Cold shrinkable cable terminal

Heat shrinkable cable terminal

Open core current transformer, PT

RMU

Cooper power system brand, ABB, Schneider, ormazabal, Siemens,

and SF6 RMU loadbreak swtich comonent, mechanism, fuse holder, bushing, ground swtich, SF6 express indicator, insulator, voltage indicator,

High voltage capacitor

From 2kv up to 25kv, single phase

100kar, 200kar, 300kar, 334kar, 400kar, 500kar, 750kar, 800kar, 1000kar, 1200kar

Overhead loadbreak, overhead interrupter, reclose.

Vacuum or SF6

Cutout, cutout fuse. Disconnector.

Vacuum contractor, vacuum switchgear(VD4, VS1, VN2-24, CE, VN3-12, VN1-36).

Relay

FUSE

High voltage fuse 12kv-42kv, 3A, 8A, 10A, 15A, 20A, 31.5A, 40A, 50A, 63A, 100A

Low voltage fuse 0.4kv-1000V

NH and RT16 fuse 0.4kv-1000V

And low voltage production.

You are welcome.
