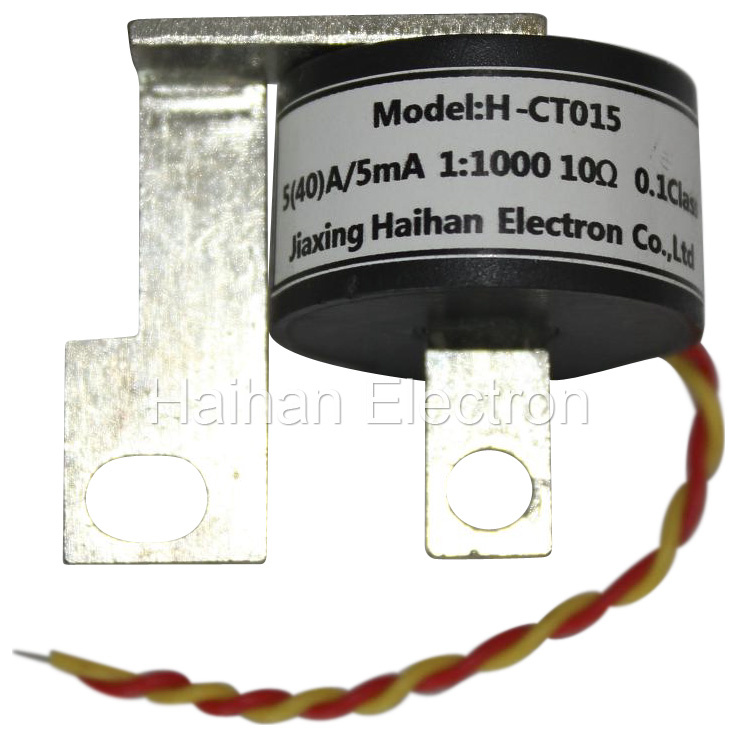

Current Transformer with 40A

Name: Current Transformer with 40A
Brand: all-electronics-online.com
SKU: 706369665
Availability: InStock
Rating: 4.9 (35 reviews)

Price:	US $ 0.8-1/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	H-CT015
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rate Current:	5A
Max Current:	40A
Secondary Current:	5mA
Coil Ratio:	1:1000
Burden Resistance:	10ohm
Wire Lenght:	10cm
Manufacturer:	Jiaxing Haihan Electron Co.,Ltd
Brand:	E-Power
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

1, Main characteristics

1). It adopt high magnetic permeability magnetic core, with high
Precision and good linearity, and can prevent high magnetic interference.

2). Range of current: 1.5A to 120A

3). Primary input and secondary output ensures flexible and diversified forms as well as easy installation.

4). It's can be made according to customer's special requirements (for example, with anti-DC immunity or not. )

2, Application:

1), Multi-funcational energy meter

2), Prepayment energy meter

3), Reactive energy meter

4), Watt-hour meter

5), Multi-rate watt-hour meters

6), Maximum demand energy meter.

7), Standard electric energy meter

8), Meter for industry and home use

If you want to know more information for this model: H-CT015, Please feel free to contact with us.

Thank you very much for your attention.

Serial No.	(current ratio)		Accuracy	Load Resistance ( Ω )
	Primary current	Secondary current
1	5(20)A	2.5mA 5mA 10mA	0.05 0.1 0.2	5/10/20
	5(30)A
2	10(40)A	5mA 10mA	0.05 0.1 0.2
	10(60)A
	10(100)A
3	15(60)A	5mA 10mA 5mA	0.05 0.1 0.2
	15(100)A
4	20(80)A	5mA 10mA 20mA	0.05 0.1 0.2
	20(100)A
5	30(120)A	10mA 15mA 30mA	0.05 0.1 0.2
Notes	Other specifications can be according to customers request.
