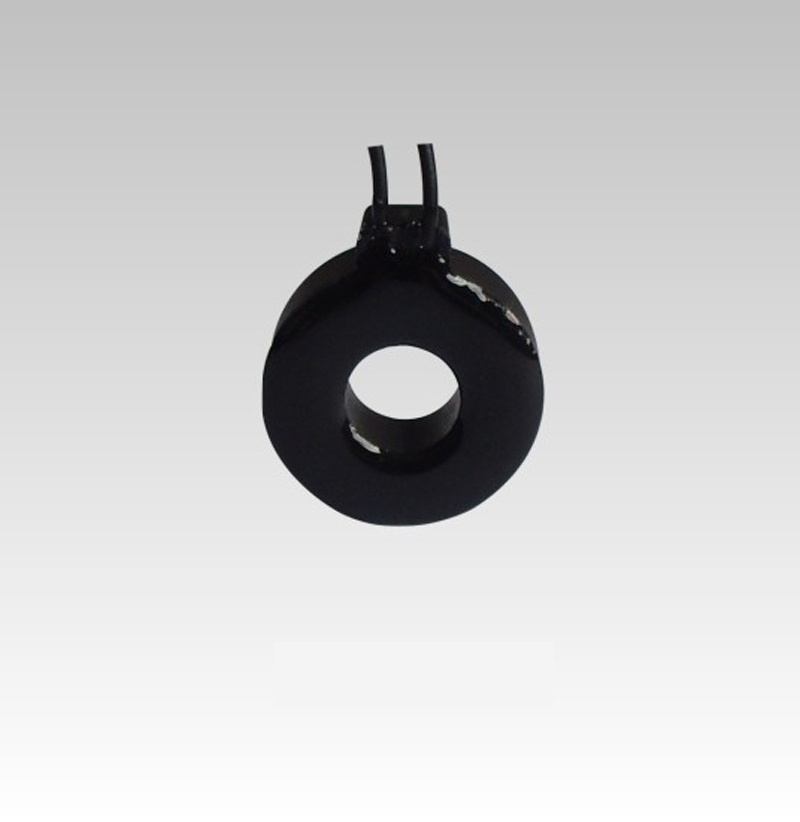

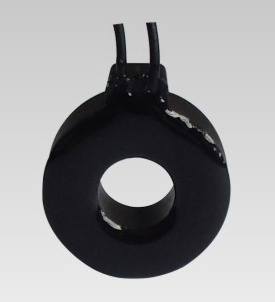

Current Transformers for Mete (CT350B)

Prod Model:	CT350B
Markets:	North America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia

Product Description

Current Transformers (CT350B)
I), Feature
1), Encapsulated by Epoxy resin, all enclosed design, good performance of mechanical and insulation.
2), Pin design, easy to installate in PCB.
3), This series of CTs have small size that can be used as separate.
4), Smalll size, light weight, standard hole easy to installation.
5), Good immunity of humidity and shock.

II), Normal specifications and parameters as follow.

Electrical Specification
Primary Current	5A
Secondary Current	5mA
Turns Ratio	1: 1000
Current Range	0 ~ 16A
Linearity	0.2%
Accurancy Class	0.5
Rated Burden	≤ 200 Ω
Frequency Range	50 ~ 60Hz
Dielectric Level	3000VAC/min
DC Resistance at 20º C	38~44Ω
Mechanical Specificationa
Cup	PBT
Encapsulant	Epoxy
Terminals	26#AWG PVC WIRE(BLACK)
Tolerance	± 0.3 mm
Approx. Weight	8.0g
Case	Carton
Environment Specification
Storage Temperature	-40º C ~+130º C
Insulation Resistance	> 100 MΩ
