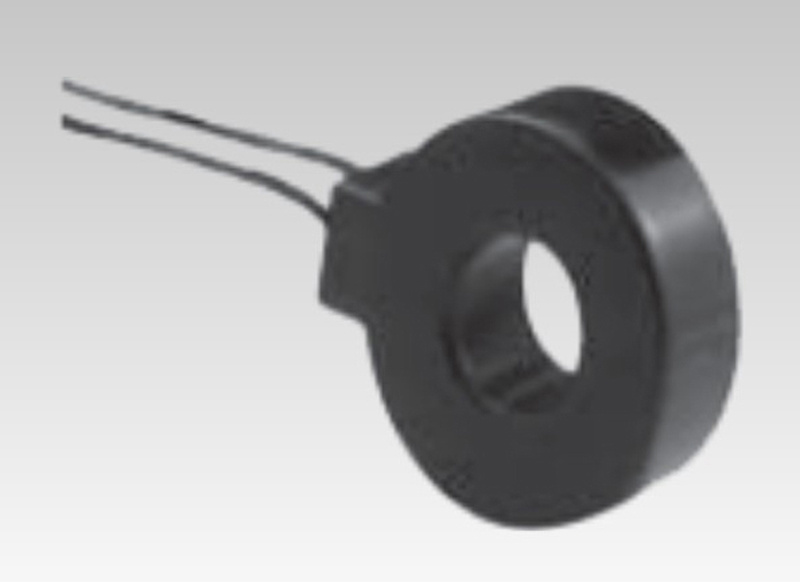

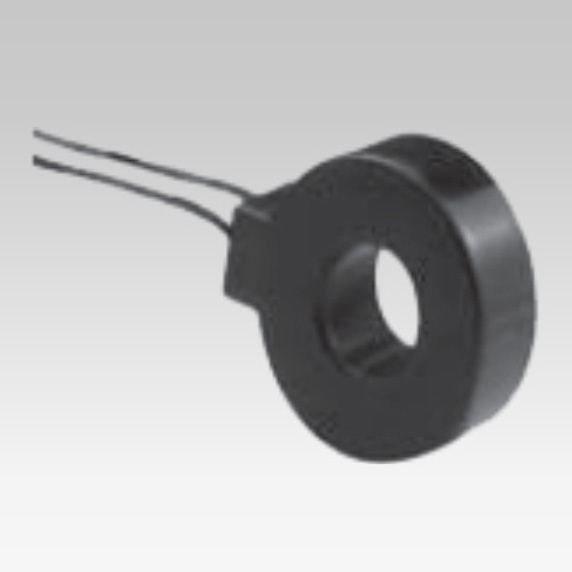

Current Transformers for Mete (CT360B)

Prod Model:	CT360B
Markets:	North America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia
Phase:	Single
Type:	Transformer

Product Description

Current Transformers (CT360B)
I), Feature
1), Encapsulated by Epoxy resin, all enclosed design, good performance of mechanical and insulation.
2), Pin design, easy to installate in PCB.
3), This series of CTs have small size that can be used as separate.
4), Smalll size, light weight, standard hole easy to installation.
5), Good immunity of humidity and shock.

II), Normal specifications and parameters as follow.

Electrical Specification
Primary Current	5A
Secondary Current	4.91mA
Turns Ratio	1: 1018
Current Range	0 ~ 50A
Linearity	0.2%
Accurancy Class	0.5
Rated Burden	24 Ω
Frequency Range	50 ~ 60Hz
Dielectric Level	3000VAC/min
DC Resistance at 20º C	45~55Ω
Mechanical Specificationa
Cup	PBT
Encapsulant	Epoxy
Terminals	26#AWG PVC WIRE(BLACK)
Tolerance	± 0.3 mm
Approx. Weight	18.6g
Case	Carton
Environment Specification
Operating Temperature	-10º C ~ +80º C
Storage Temperature	-40º C ~+130º C
Insulation Resistance	> 100 MΩ
