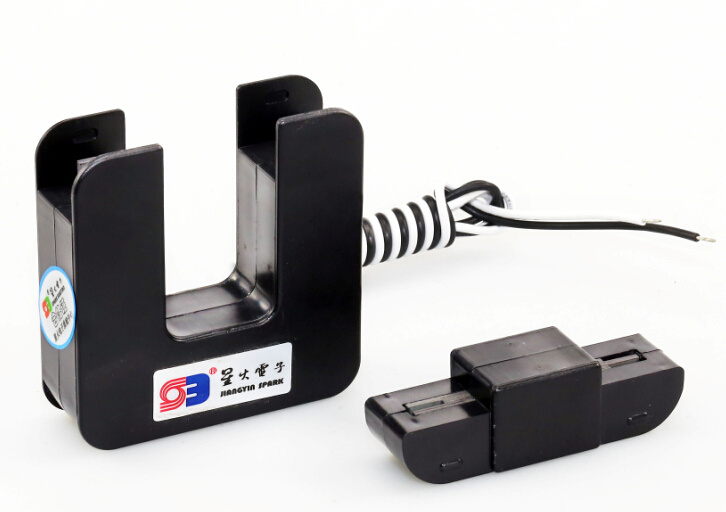

Current Transformers Split Core (XH-SCT) for Energy Metering Ce UL

Name: Current Transformers Split Core (XH-SCT) for Energy Metering Ce UL
Brand: all-electronics-online.com
SKU: 787600125
Availability: InStock
Rating: 4.4 (44 reviews)

Price:	US $ 7.5/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	xh-0750
Output:	0.333V/Ma
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

Model NO.:XH-SCT

Application:Electronic, Instrument, Position Sensor, Audio, Lighting
Type:Current Transformer

Phase:Single
Operation Condition:Indoor

Usage:Measurement
Winding Form:Multilayer Honeycomb Type

Insulating Medium:Epoxy Resin
Installation:Active Type

Magnetic Circuit Structure:Single Stage Type
Voltage Transformation Principle:Capacitive Type

Package:Cartons
Specification:CE, UL, ROHS, ISO9001: 2008

Trademark:Jiangyin spark
Origin:Jiangyin City, China(Mainland)

Current Transformer:Split Core Current Transformer
Output:Ma, Mv, 1A and 5A Secondary Output

HS Code:8504
Production Capacity:200, 000 PCS/Month
Product Description
Jiangyin Spark is a professional manufacturer in China devoted in research, design, and production of Split Core(Clamp on) Current Transformer(CTs), Clip on Current Sensor, Split Core Current Transducer, High precision current transformer, and mini voltage transformer. Measure AC current from 1A to 5000A, Output can be 0.333V, mA, 1A and 5A.

Model	I. D.	Rated Amps	Output	Accuracy	SIZE (mm )
Model	I. D.	Rated Amps	Output	Accuracy	A	B	C	D	E
XH-SCT-0750	0.75" (19.1mm)	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
XH-SCT-1250	1.25" (31.8mm)	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
XH-SCT-2000	2.00" (50.8mm)	400, 600, 800, 1000, 1200, 1500		1.0	120	125	29.6	52.5	52
XH-SCT-3000	3.00" x 5.00" (76.2mm x127mm)	1000, 1200, 1500, 2000.3000		1.0	145	199	30.5	76	130

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
